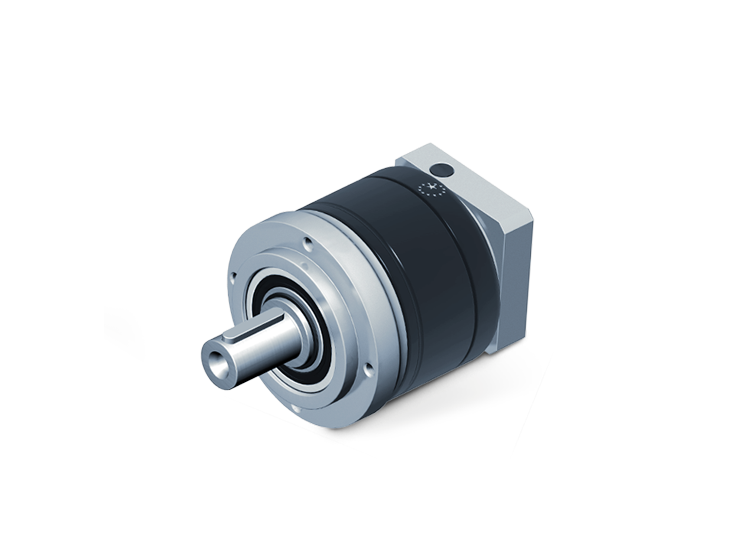

PEII 120
Planetary Gear
- Gear ratio i: 3-100
- Nominal output torque T2N: 155-232 Nm
- Nominal input speed n1N: 3600 rpm
- Backlash Λφ2: ≤ 6-≤ 8 arcmin
- Max. allowed acceleration torque T2B: 279-417.6 Nm

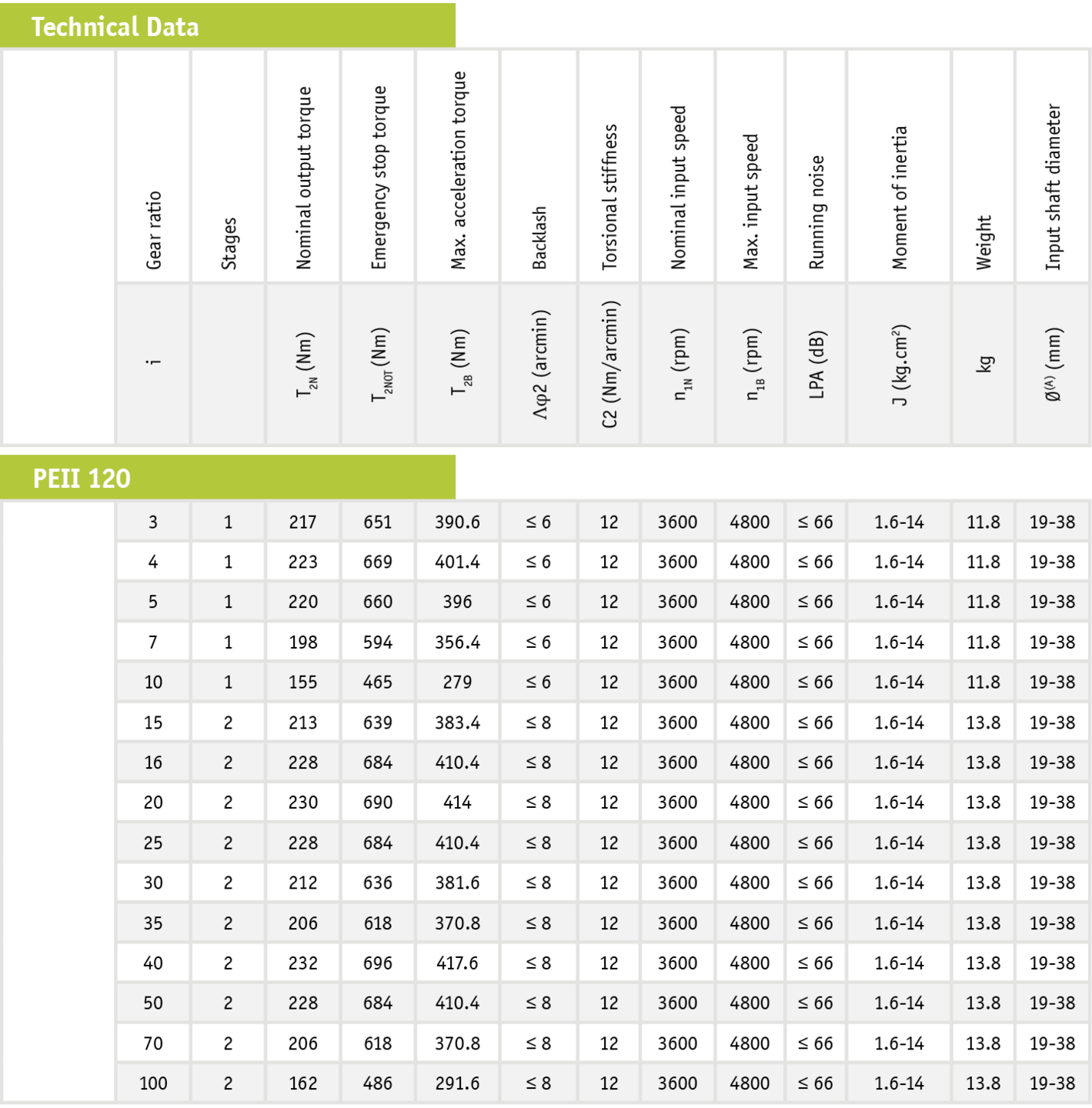

Technical Data – Planetary Gears PEII 120

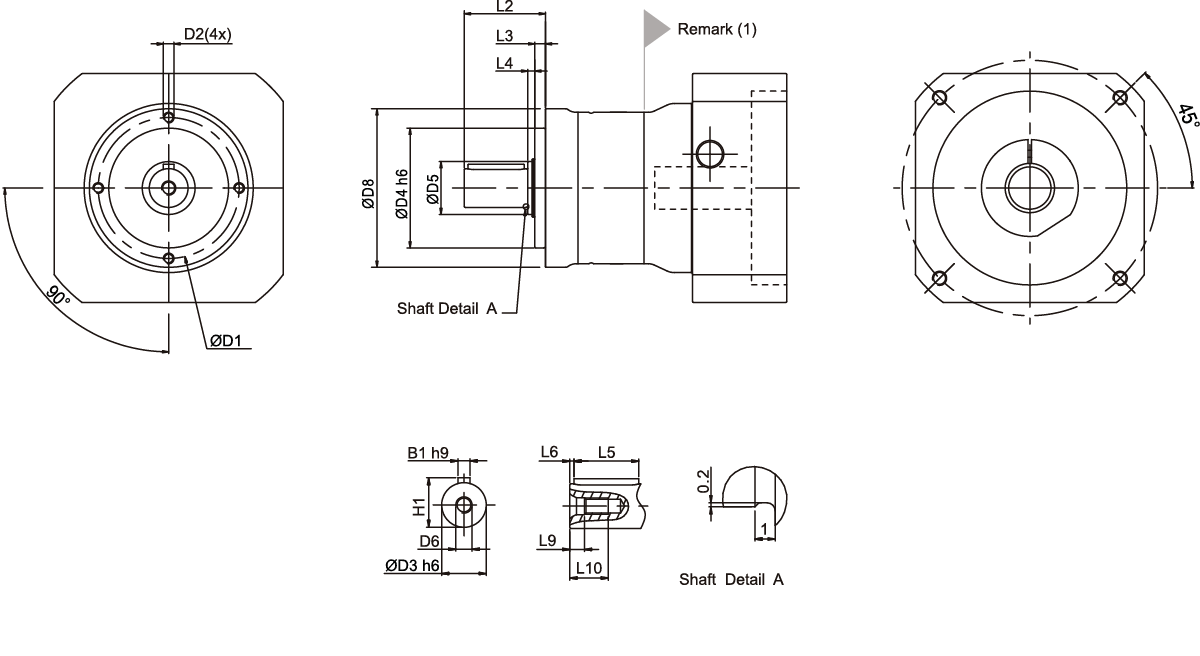

Mechanical Dimensions - Drawing

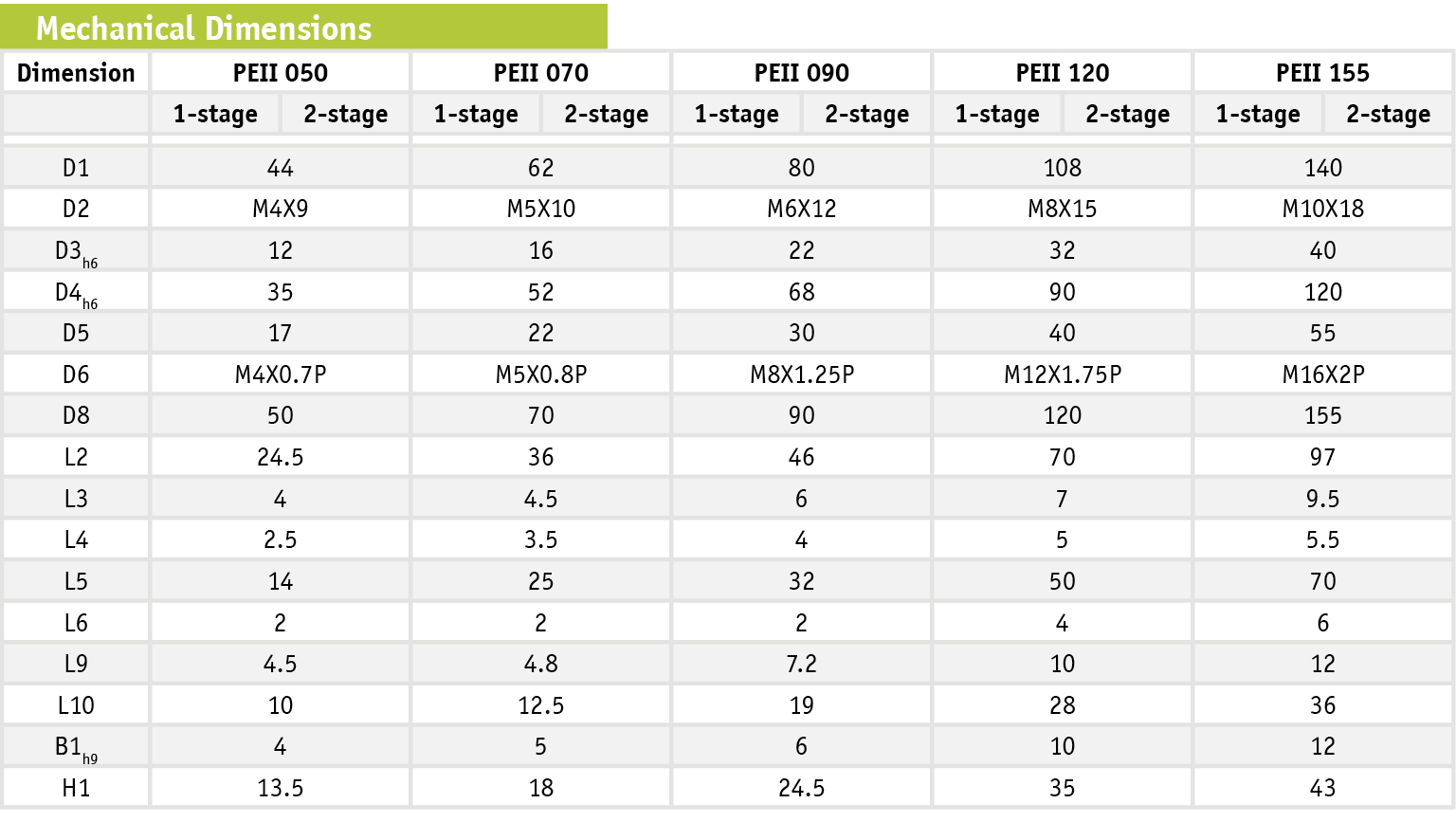

Mechanical Dimensions - Table
