HMI

Human-Machine Interfaces

Panels for any automation task

Whether for classic operating, modern visualization concepts or simple control tasks – with the HMIs from SIGMATEK, our machines cut a good figure in any situation. Our human-machine interfaces are compactly designed and fanless. Your have the choice between panels with a processor and remote operating units without a processor (HMI-Link up to 100 M).



Regardless of whether single, dual or multi-touch screens – we put the main focus on all our human-machine interfaces to ensure that you can work intuitively, quickly and safely.

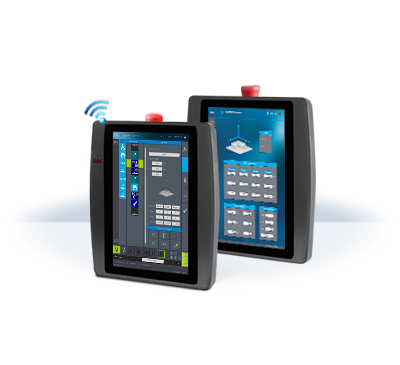

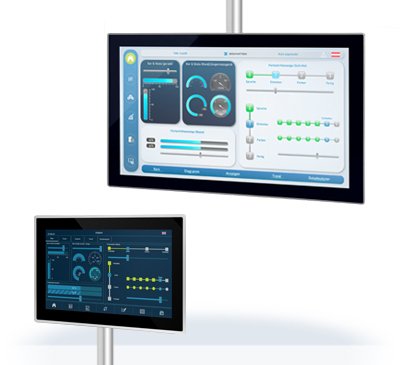

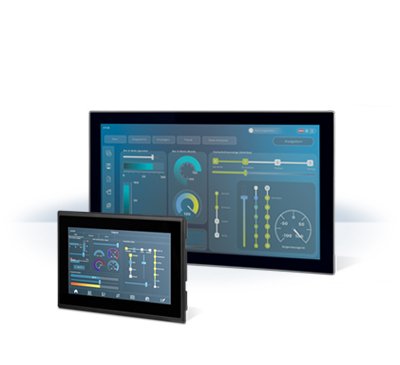

Our selection of HMIs include built-in units, panels for the carrier arm and mobile Panels for use directly on-site. All HMIs equipped with a processor are fit for the Smart Factory (OPC-UA communication).



Your Benefits

The large selection of HMIs ranges from 3.5 to 23.8-inch displays – in classic 4:3 or widescreen format. Numerous standard interfaces such as Ethernet, CAN, USB or HMI-Link ensure that communication with other automation components is flexible, fast and reliable.



For simple applications, the ETV control panels can also assume control tasks in addition to operating and visualization functions. These all-in-one panels are equipped with a VARAN interface.



Customer-specific panel configurations such as a special front foil and housing designs, or HMIs especially designed for the particular demands of the food and pharmaceutical industries are possible.



Targeted usability supports the error-free function of the machine, while thereby increasing productivity.



With the HMI tool LASAL SCREEN, you are provided with a comfortable tool for creating visualizations that also supports all resolutions for SIGMATEK displays.

For remote solutions, the HMI-Link Technology was developed. With a standard Cat5e cable, DVI, audio and USB signals can be transmitted without loss between operating panels and the 400 series control cabinet PC (full HD). HMI-Link is based on a complete hardware solution and functions regardless of the operating system used.

As with all SIGMATEK automation products, the HMIs are developed and produced at our main facility in Lamprechtshausen. For you, that means long-term availability and investment protection.

HMIs – Hot Facts

The broad selection includes color touch displays from 3.5 to 23.8 inches - with single or Multitouch (PCT). In addition to classic 4:3 format, panels in vertical and widescreen format are available. Customer-specific HMI designs are also possible.



  • Open: with standard interfaces such as Ethernet, CAN, USB, HMI-Link, VARAN or RS232, the HMIs easily connect
  • Fast and reliable: data exchange with the control and additional components
  • Fit for the digital factory: all SIGMATEK HMIs with a processor support OPC-UA communication
  • Comfortable: simply create visualizations with the HMI-Tool LASAL SCREEN, which supports all display resolutions
