Gears

Planetary Gears

Efficiently accelerate inertial mass

With the compact, low-backlash planetary gears from the PEII series, you have a cost-efficient solution for applications in which no particularly low backlash in required.

Products for Planetary Gears

PEII 050 - Planetary Gear

  • T2N: 10-16 Nm
  • n1N: 4500 rpm
  • Λφ2: ≤ 8-≤ 10 arcmin
  • T2B: 18-28.8 Nm

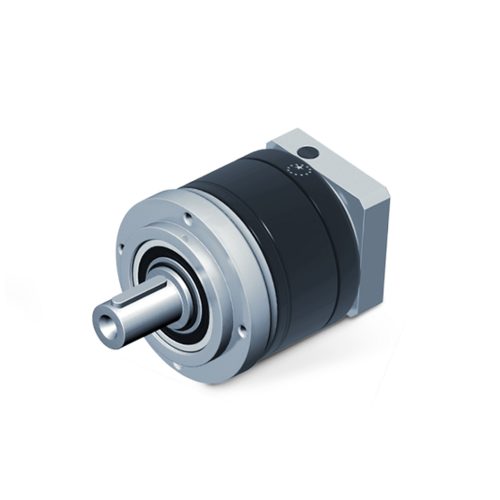

PEII 070 - Planetary Gear

  • T2N: 27-43 Nm
  • n1N: 4000 rpm
  • Λφ2: ≤ 7-≤ 9 arcmin
  • T2B: 48.6-77.4 Nm

PEII 090 - Planetary Gear

  • T2N: 68-123 Nm
  • n1N: 3600 rpm
  • Λφ2: ≤ 6-≤ 8 arcmin
  • T2B: 126-221.4 Nm

PEII 120 - Planetary Gear

  • T2N: 155-232 Nm
  • n1N: 3600 rpm
  • Λφ2: ≤ 6-≤ 8 arcmin
  • T2B: 279-417.6 Nm

PEII 155 - Planetary Gear

  • T2N: 295-459 Nm
  • n1N: 2500 rpm
  • Λφ2: ≤ 6-≤ 8 arcmin
  • T2B: 531-826,2 Nm

Gears – Hot-Facts

Versatile combinations of motors and gears, as well as fine translation stages enable the optimal adaptation to your specific application.



  • Economic series with spur gearing
  • Geometric 50/70/90/120 flange size
  • Backlash: ≤ 6 to ≤ 10 angular minutes
  • High torsional stiffness and low running noise

  • IP64 protection
  • Life-time lubrication
  • Double attachment centering

  • Food grease lubrication
  • Low backlash classes
  • Stainless steel motor adapter plates
