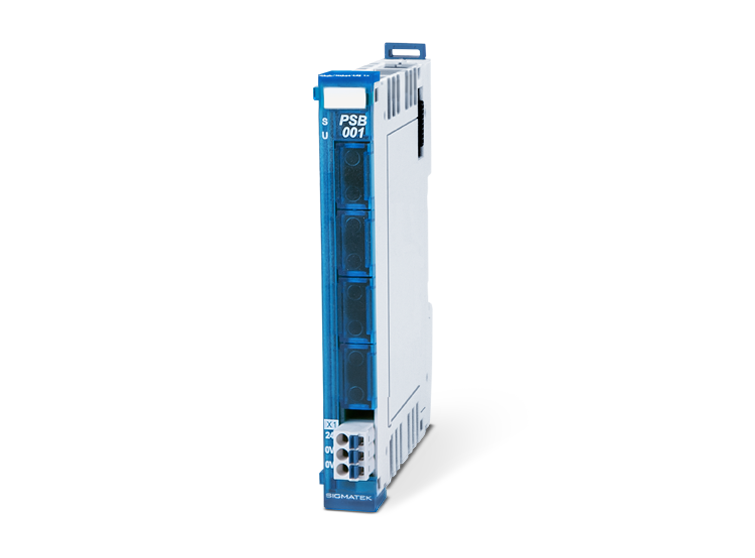

PSB 001
Power Boost Module
- Expansion Module
- Supplies the downstreamed modules with power via the backplane bus
For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
Technical data
Performance data
Supply voltage
+24 V DC (+18-30 V DC)
Supply monitoring
Yes
Current consumption
The current consumption depends on the connected loads (max. 2.2 A)
Mechanical properties
Width (mm)
12.5
Height (mm)
104
Depth (mm)
72
Protection type
IP20
Article number / Certification
Item number
20-002-001
Standardization / Certification
UL 508 (E247993)
