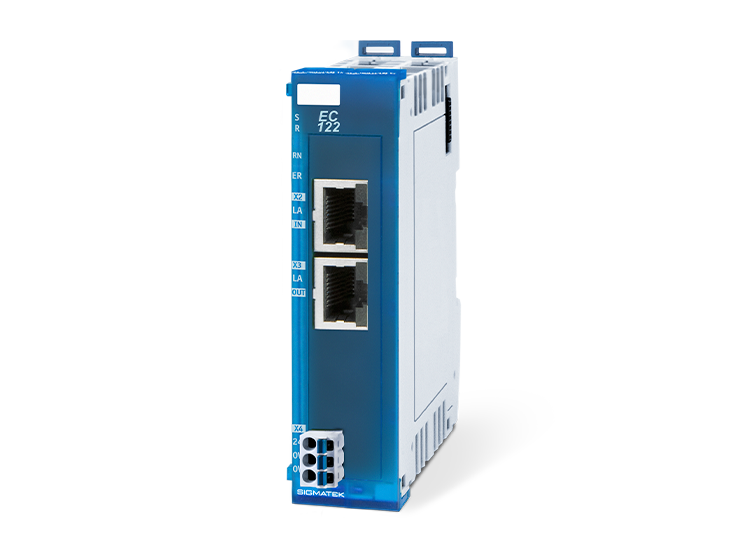

EC 122
EtherCAT Connection
- EtherCAT S-DIAS Connection Module with voltage supply for up to 32 S-DIAS modules
- 64 S-DIAS modules with PSB 001
- Data exchange between EtherCAT and S-DIAS-Bus
- S-DIAS safety modules can be integrated
For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
Technical data
Performance data
Supply voltage
typically +24 V DC ±20 % (SELV/PELV)
Interfaces
1x EtherCAT IN
1x EtherCAT OUT
1x S-DIAS Bus
1x EtherCAT OUT
1x S-DIAS Bus
Mechanical properties
Width (mm)
25
Height (mm)
104
Depth (mm)
72
Protection type
IP20
Article number / Certification
Item number
20-003-122
Standardization / Certification
UL 508 (E247993)
