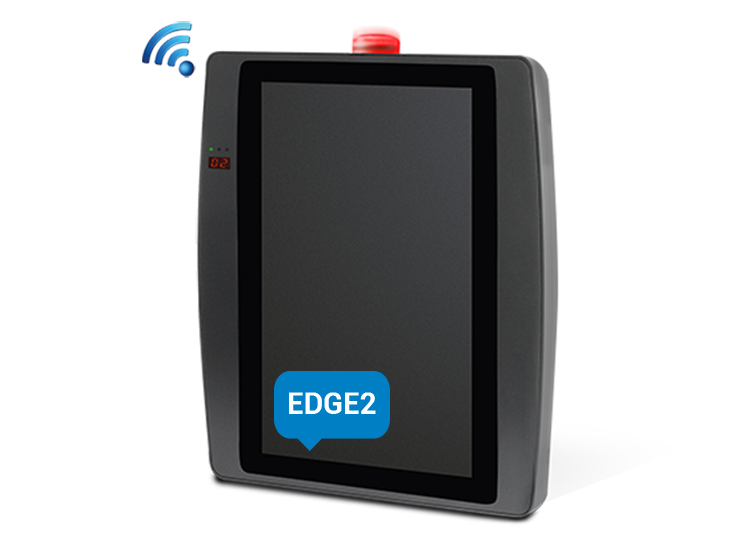

HGW 1033-3
10.1" Mobile WLAN Panel
- Mobile, wireless operating panel with data transfer via WLAN
- Wireless Safety functions - SIL 3, PL e
- High-performance EDGE2 Technology processor, OPC UA communication
- 10.1" WXGA color display (16:10), multi-touch (projective capacitive), 800 x 1280 pixels
- Battery pack integrated: 2 hours continuous-load operation without recharging
- Light: only 1,350 g including battery pack and Safety elements
Safety Functions via WLAN
In addition to function-oriented data, Safety data from emergency stop and confirmation buttons, as well as key switch can be sent wirelessly with the HGW panel 1033-3 and the HGW 1033-32. Safety-relevant data is transmitted via the standard WLAN using the Black Channel principle. The Safety panels are TÜV-certifiied and with SIL 3, PL e, meet the highest requirements.

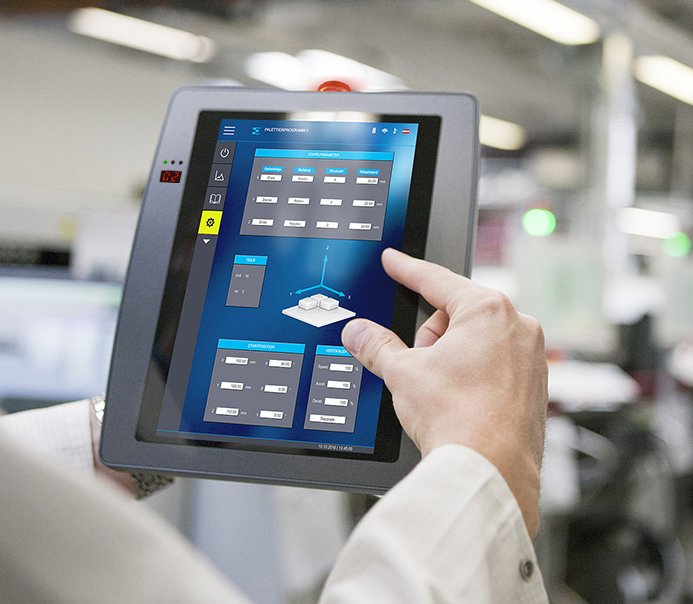

The wireless panel with Safety (SIL 3, PL e) brings a new dimension of operating freedom - multiple machines or machine components can be operated with one HMI. For unique machine identification, a 7-segment display is integrated.

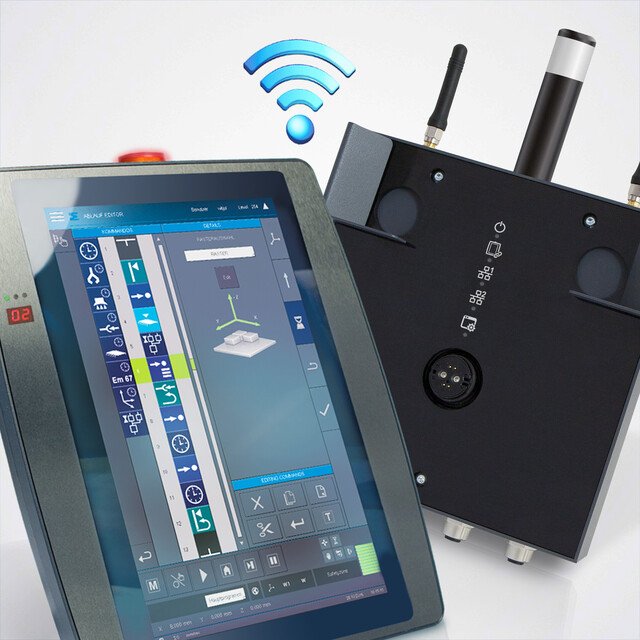

The BWH 001 industrial base station with a radio link to the mobile panel has been developed to fit the HGW 1033. The quality of the radio transmission is guaranteed by two antennas for 2.4 or 5 GHz.

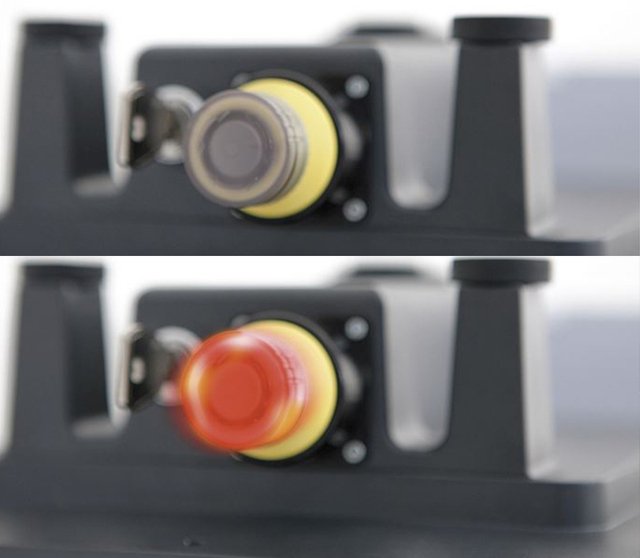

The HGW 1033 has an active illuminated emergency stop, key switch and confirmation buttons. When the emergency stop button lights red, the HMI clearly indicates that the Safety function is available and the Safety system is connected correctly.

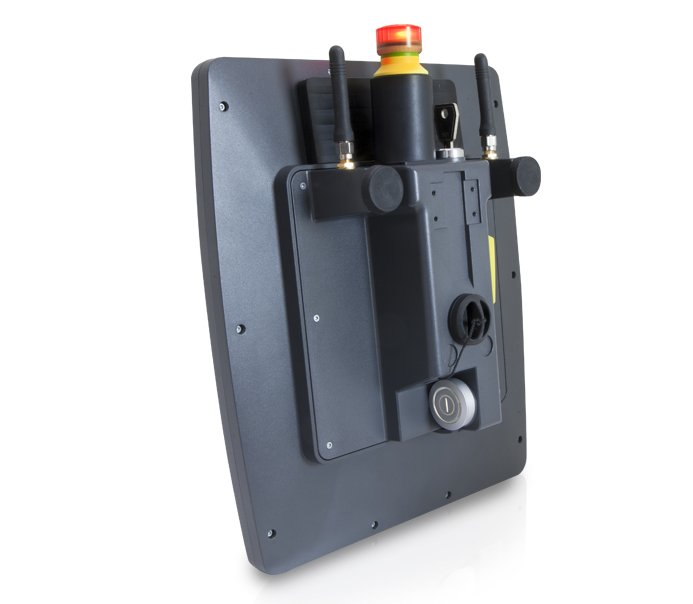

Magnetic feet are mounted on the grip unit of the HGW 1033. The mobile panel can therefore be easily placed on a machine component without a mount - a practical feature.
The rotary encoders on the front of the HGW 1033-32 enable comfortable and almost blind operation. This means that even during setup mode, the machines and systems can be kept in view.
The optionally available edge protection provides all-round protection for the mobile HMIs in harsh industrial environments. An added advantage is the resulting extended fall height.
