DIAS Drives 100_S-DIAS DC 06X

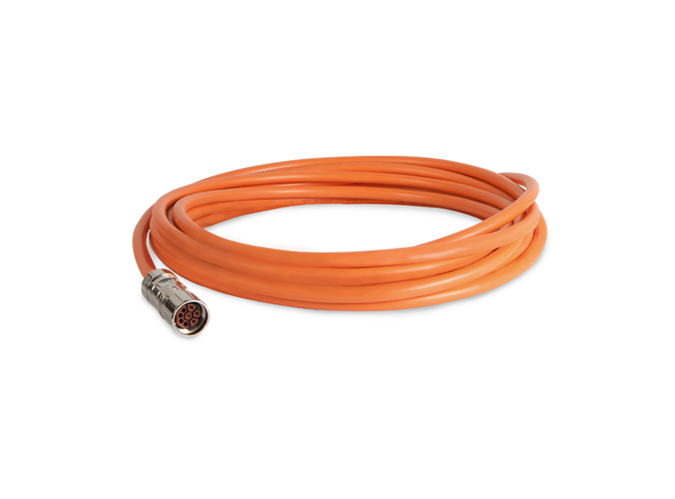

Motor Cable
- For motors with or without holding brake
- Preassembled and shielded on both ends
- Round connectors on the motor and module connectors
- Drag chain suitable, highly flexible (5 mil. bending cycles)
- Available lengths: 1 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 10 m, 15 m, 20 m, 25 m

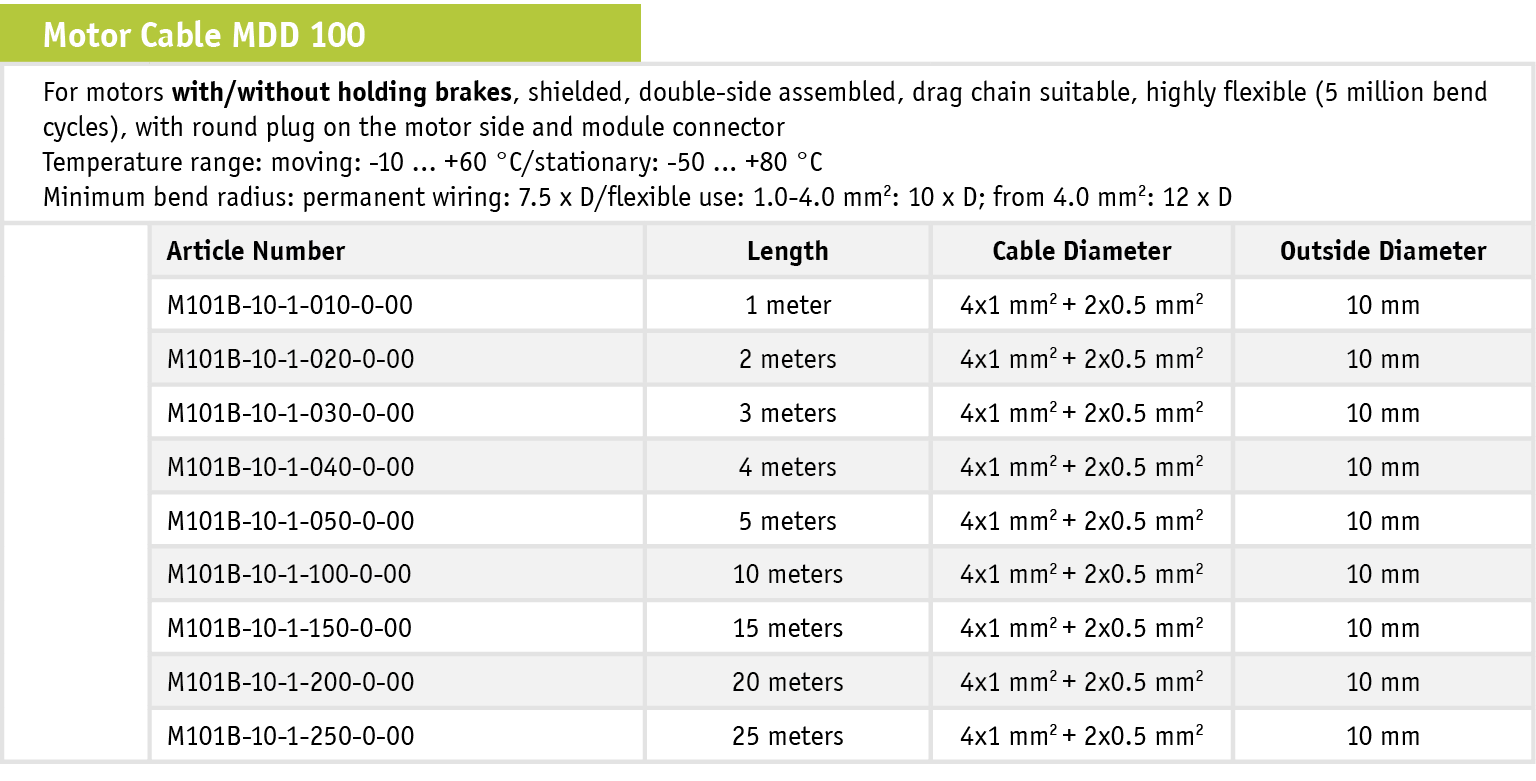

Motor Cables for the DIAS Drives 100

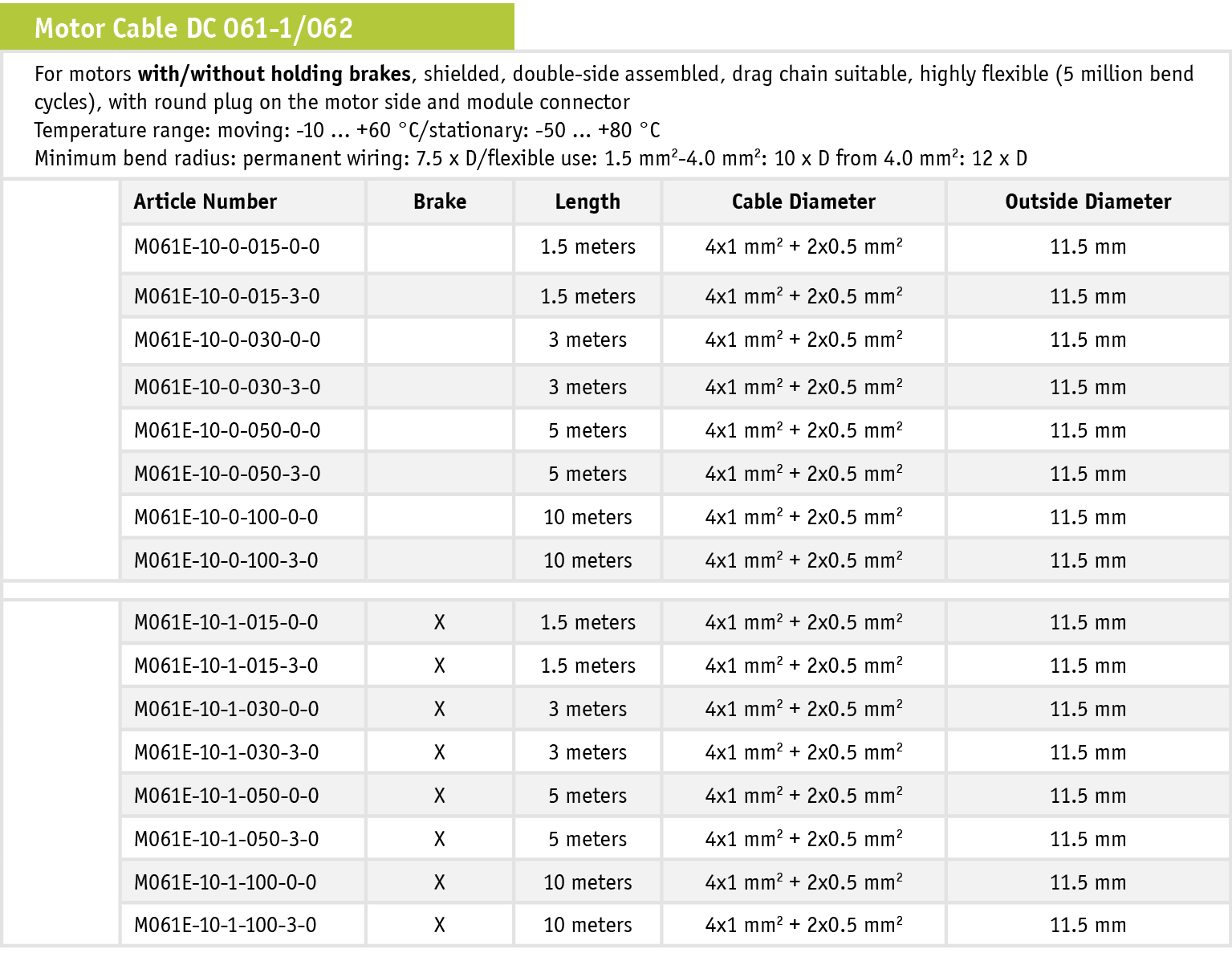

Motor cable for S-DIAS Modules DC 061-1 and DC 062

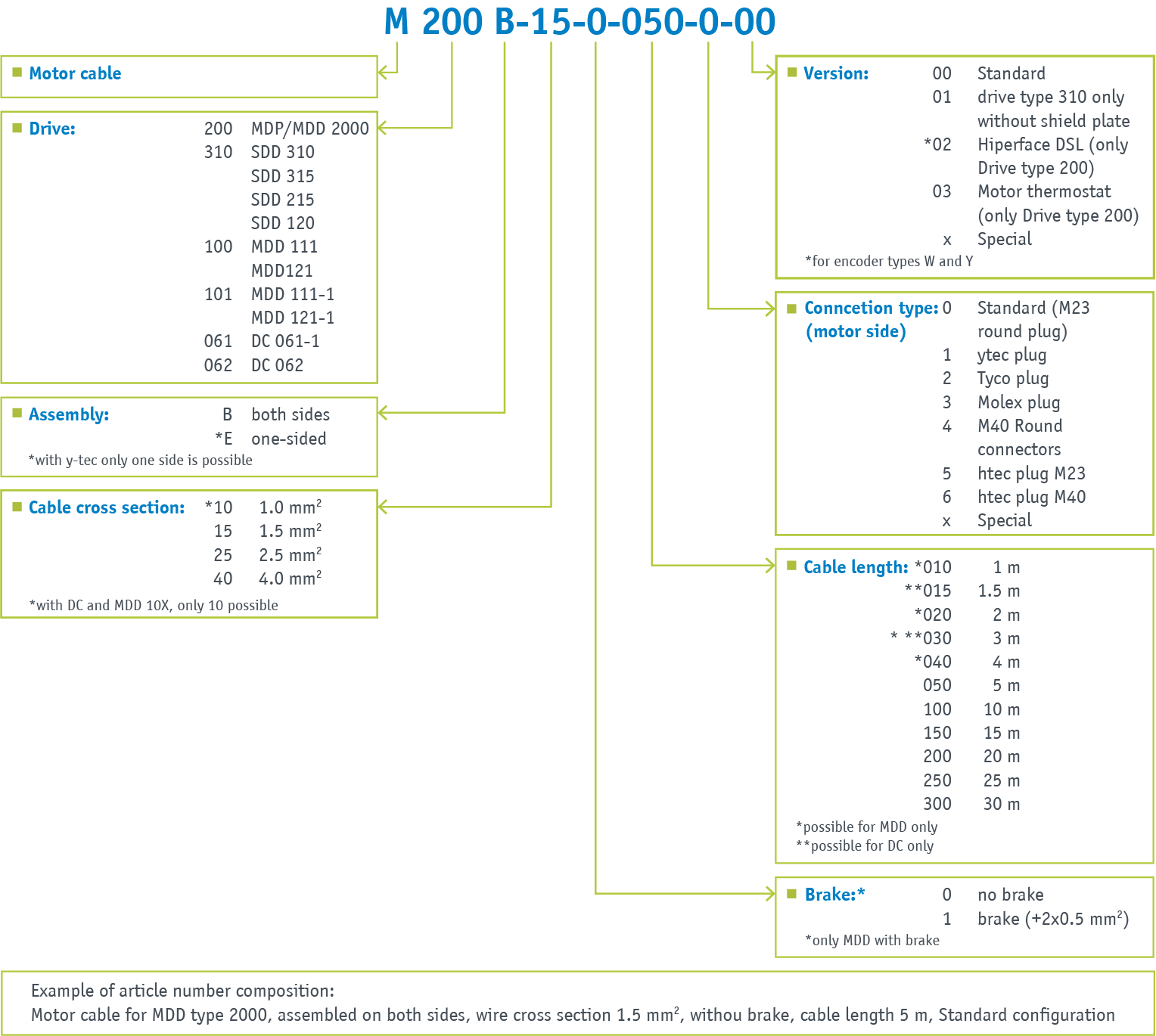

Determining the article number
Technical data
Specifications
Laying
Drag chain suited and flexible
Plug connector
Round connectors on the motor and module connectors
Length
1 m, 2 m, 3 m, 4 m, 5 m, 10 m, 15 m, 20 m, 25 m
Article number / Certification
Item number
DIAS-Drives 100_S-DIAS DC 06X
