Servo Motors AKM Low Voltage

Servo Motors AKM Low Voltage

For a power range up to 300 W

For our S-DIAS DC modules, AKM low voltage servo motors are available for a power range up to 300 W. The robust low voltage servo motors are designed for 24 V and 48 V voltage ranges. Available in three sizes, the compact low voltage motors can be easily integrated into existing machines and systems.

Products for Servo Motors AKM Low Voltage

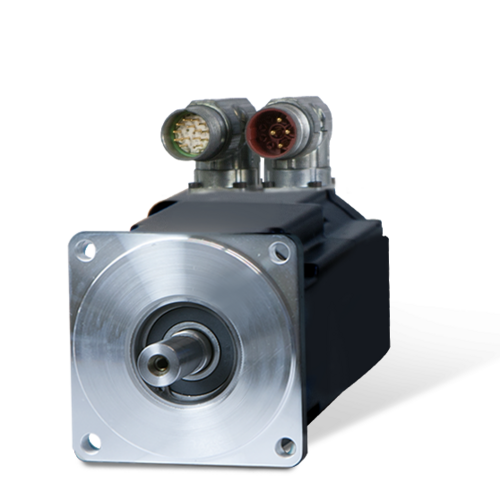

AKM 1 Low Voltage - Servo Motor

  • Pn: 0.02 - 0.23 kW
  • nn: 1000-8000 min-1
  • M0: 0.18 - 0.31 Nm
  • M0max: 0.59 - 1.05 Nm

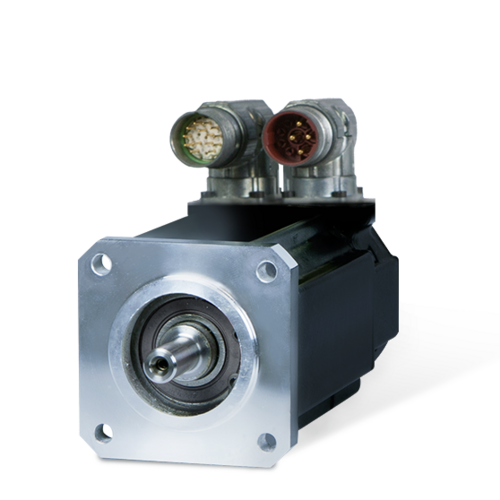

AKM 2 Low Voltage - Servo Motor

  • PN 0.05 - 0.59 kW
  • nn: 1200 - 8000 min-1
  • M0: 0.43 - 0.88 Nm
  • M0max: 1.38 – 2.80 Nm

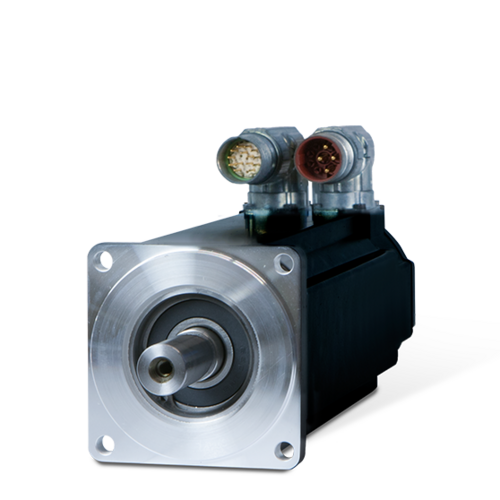

AKM 3 Low Voltage - Servo Motor

  • Pn: 0.26 - 0.64 kW
  • nn: 2000 - 8000 min-1
  • M0: 1.25 Nm
  • M0max: 4.12 Nm

Servo Motors AKM Low Voltage – Hot Facts

Permanent magnets made of neodymium magnet material are built into the rotor. The robust, compact synchronous servo motors with high power density are available in 3 sizes. Fine graduations ensure a broad range of applications – an optimal adaptation to your machine is thereby possible.

  • Low voltage
  • Smooth wave
  • IP65 protection
  • 2-pin Resolver
  • Sensors in the stator windings for temperature monitoring
  • UL-conforming configuration

  • Parallel key
  • Shaft ring seal (IP67)
  • Rotatable connector
  • Various feedback systems
