Servo Motors AKM

For highly dynamic applications

The use of synchronous servo motors increases the energy efficiency of your application. Through the low inertial torque, our brushless AC motors of the AKM series are highly dynamic and have very low cogging. That makes them the right choice for demanding motion applications.

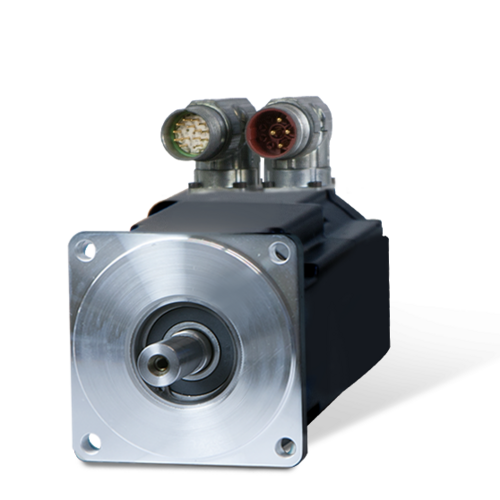

AKM 1 - Servo Motor

P_n: 0.14 - 0.30 kW
n_n: 8000 min^-1
M₀: 0.18 - 0.41 Nm
M_0max: 0.61 – 1.46 Nm

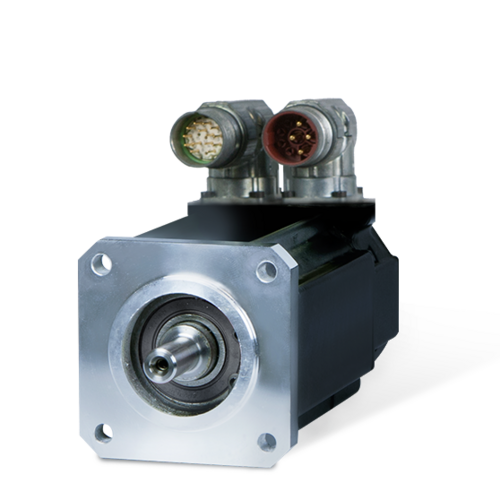

AKM 2 - Servo Motor

PN 0.28 - 0.94 kW
n_n: 2000 - 8000 min^-1
M₀: 0.48 - 1.42 Nm
M_0max: 1.47 – 4.82 Nm

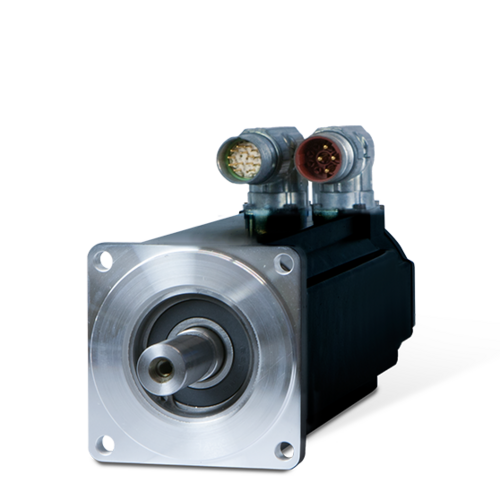

AKM 3 - Servo Motor

P_n: 0.28 - 1.31 kW
n_n: 1000 - 7000 min^-1
M₀: 1.15 - 2.88 Nm
M_0max: 3.88 – 10.22 Nm

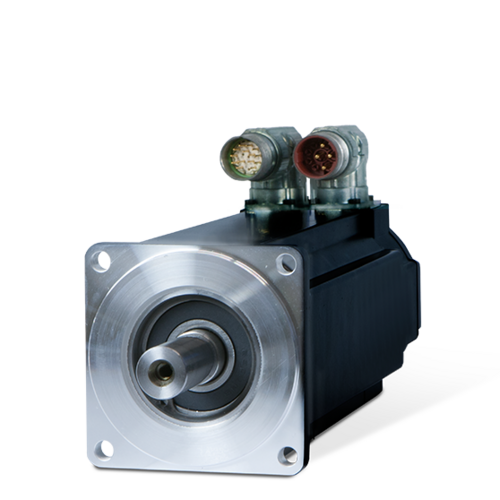

AKM 4 - Servo Motor

P_n: 0.24 - 1.73 kW
n_n: 1200 - 6000 min^-1
M₀: 1.95 - 6 Nm
M_0max: 6.12 – 20.4 Nm

AKM 5 - Servo Motor

P_n: 0.55 - 3.83 kW
n_n: 1000 - 6000 min^-1
M₀: 4.70 - 14.4 Nm
M_0max: 11.6 – 38.4 Nm

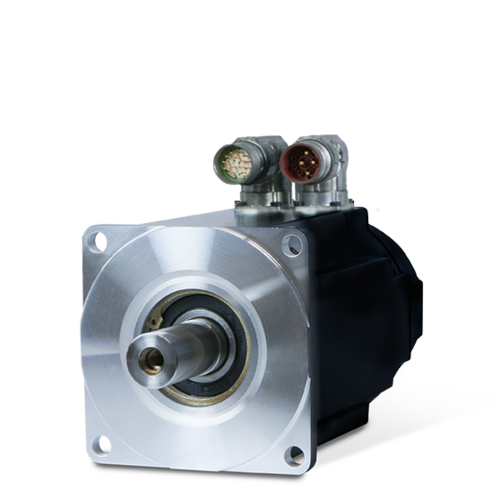

AKM 6 - Servo Motor

P_n: 1.87 - 6.45 kW
n_n: 1200 - 6000 min^-1
M₀: 11.9 - 25 Nm
M_0max: 29.7 – 65.2 Nm

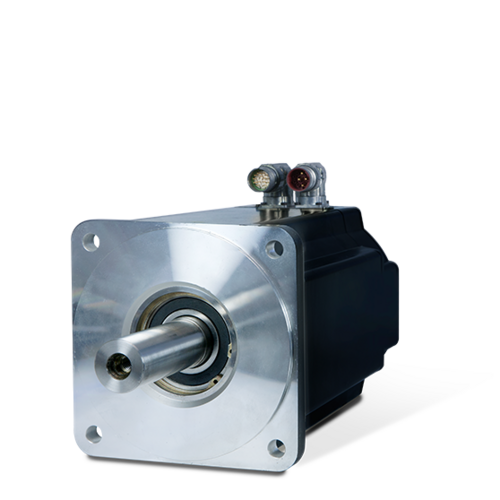

AKM 7 - Servo Motor

P_n: 3.94 - 8.25 kW
n_n: 1200 - 3000 min^-1
M₀: 29.4 - 53 Nm
M_0max: 78.5 - 143 Nm

Servo Motors AKM – Hot-Facts

The rotor contains permanent magnets made of neodymium. These robust, compact synchronous servo motors with high power density are available in 8 sizes. Fine gradations ensure a wide range of applications – enabling optimal adaptation to your servo application.

Standard Configuration

Smooth wave
IP65 protection
2-pin resolver
Sensors in the stator windings for temperature monitoring
UL-conforming configuration

Options

Feather key
Holding brake (AKM 2-8)
Shaft ring seal (IP67)
Rotatable connector
Various sensor systems
