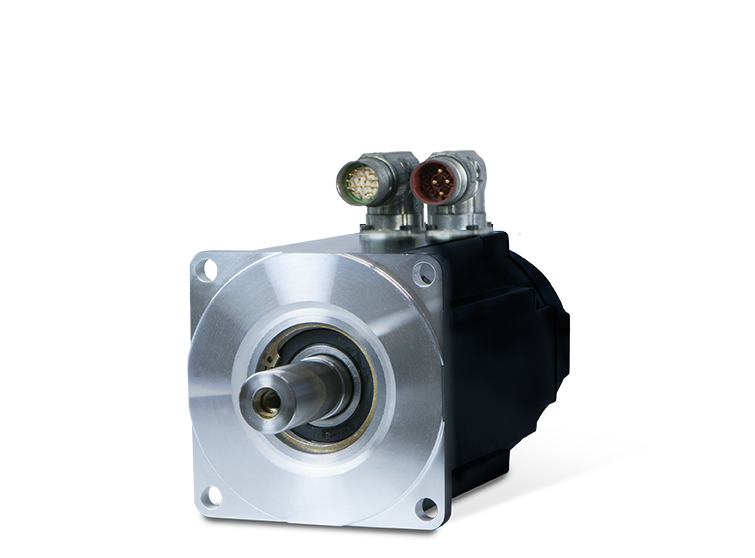

AKM 6
Servo Motor
- Rated power Pn: 1.87 - 6.45 kW
- Rated speed nn: 1200 - 6000 min-1
- Motor standstill torque M0: 11.9 - 25 Nm
- Rated torque Mn: 5.7 – 20.2 Nm
- Peak torque M0max: 29.7 – 65.2 Nm

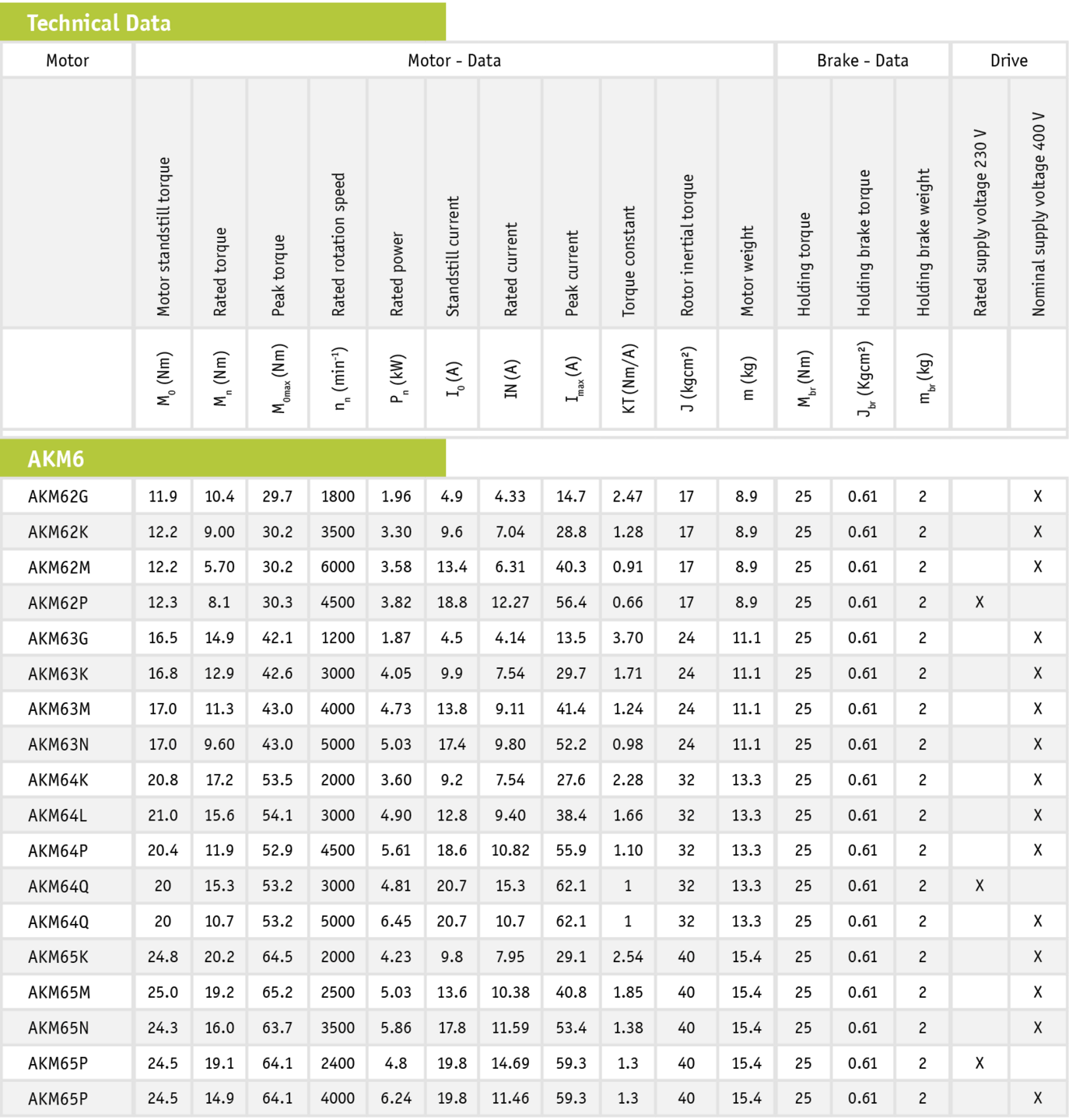

Technical Data - Servo motor AKM 6

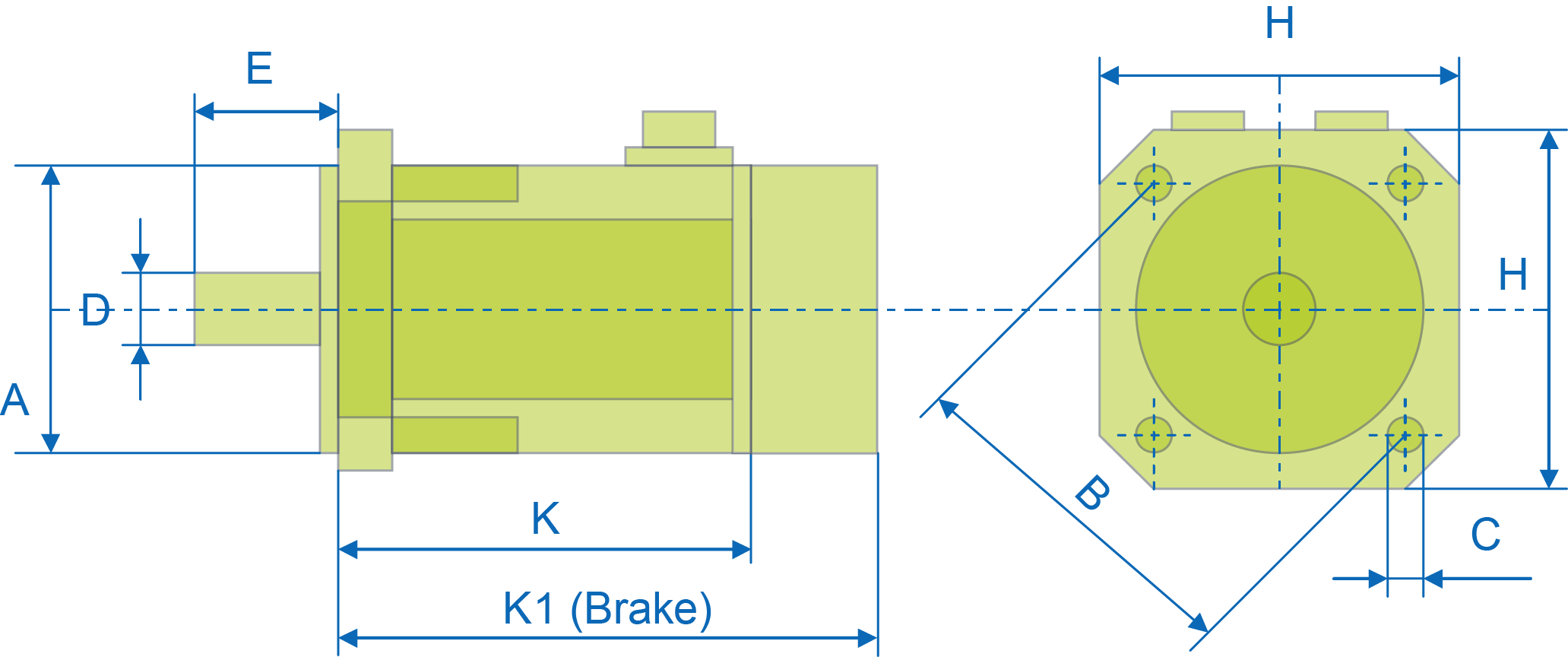

Mechanical Dimensions - Drawing

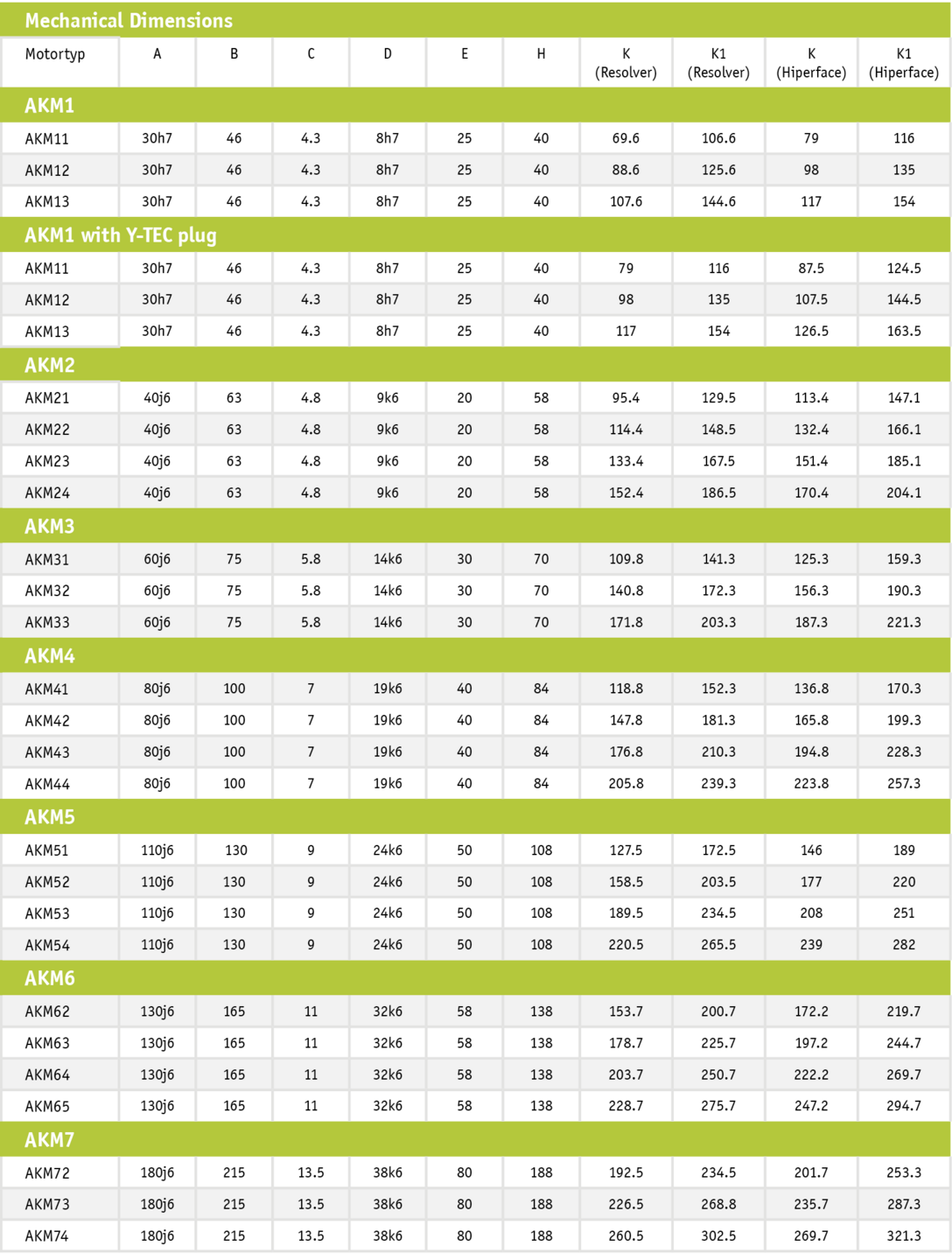

Mechanical Dimensions - Table

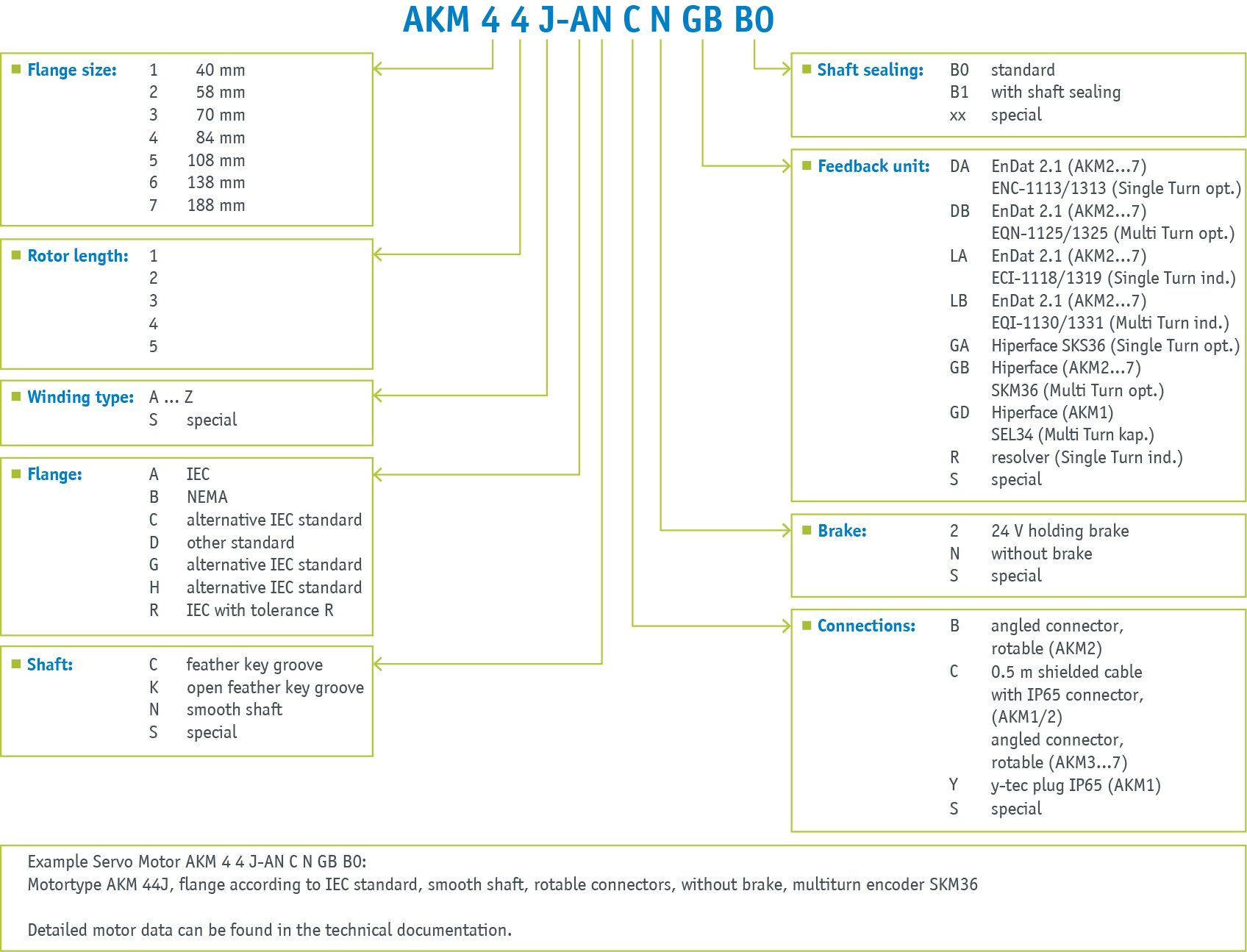

Type code - example: Motor type AKM 44J, flange in accordance with IEC standard, smooth shaft, rotatable connectors, without brake, multi-turn encoder SKM36
