AKM 4
Servo Motor
- Rated power Pn: 0.24 - 1.73 kW
- Rated speed nn: 1200 - 6000 min-1
- Motor standstill torque M0: 1.95 - 6 Nm
- Rated torque Mn: 1.58 – 5.22 Nm
- Peak torque M0max: 6.12 – 20.4 Nm

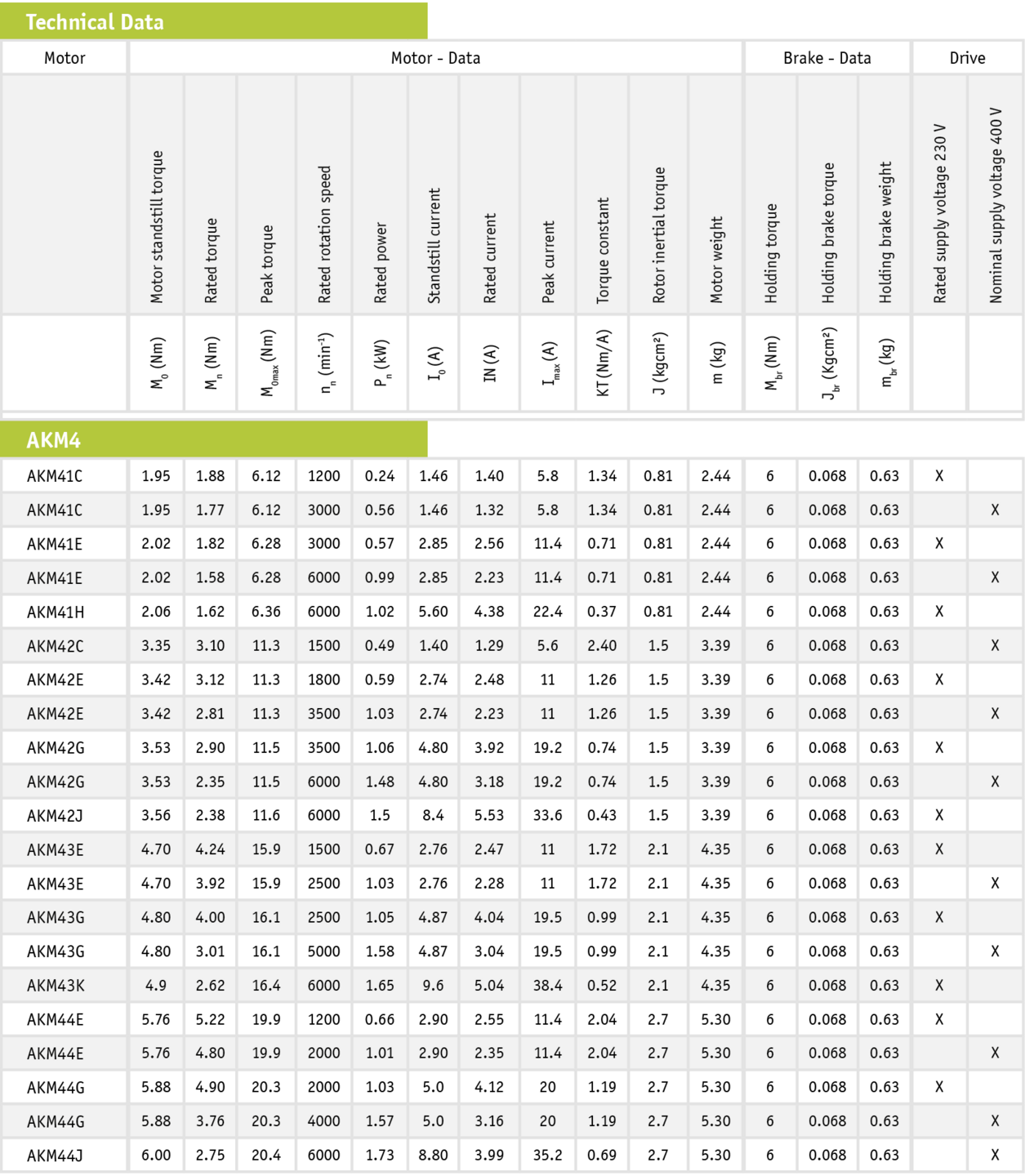

Technical Data - Servo motor AKM 4

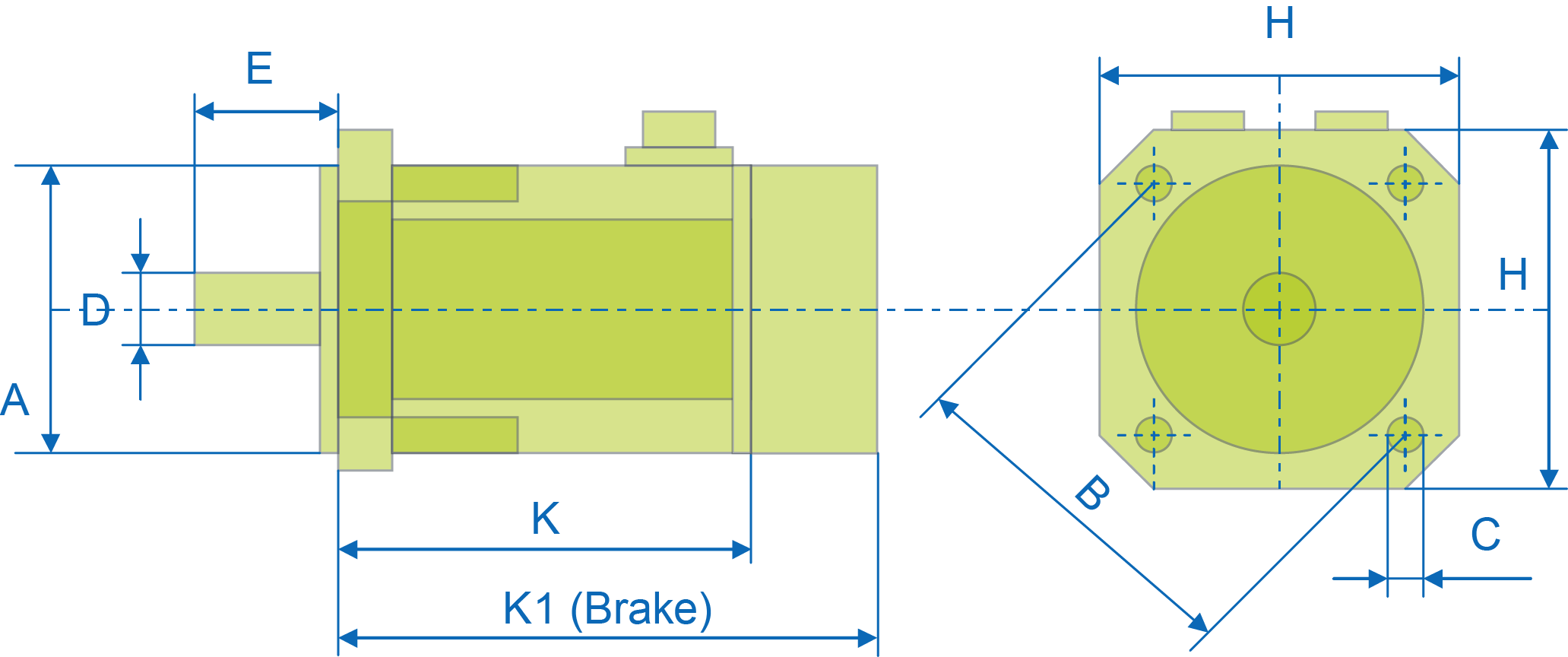

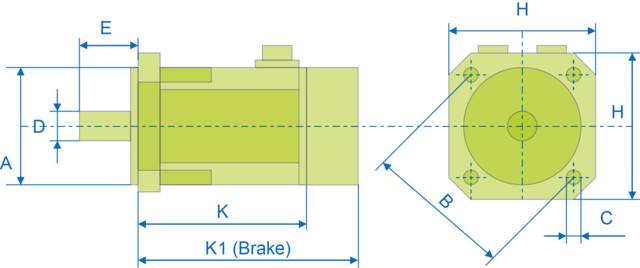

Mechanical Dimensions - Drawing

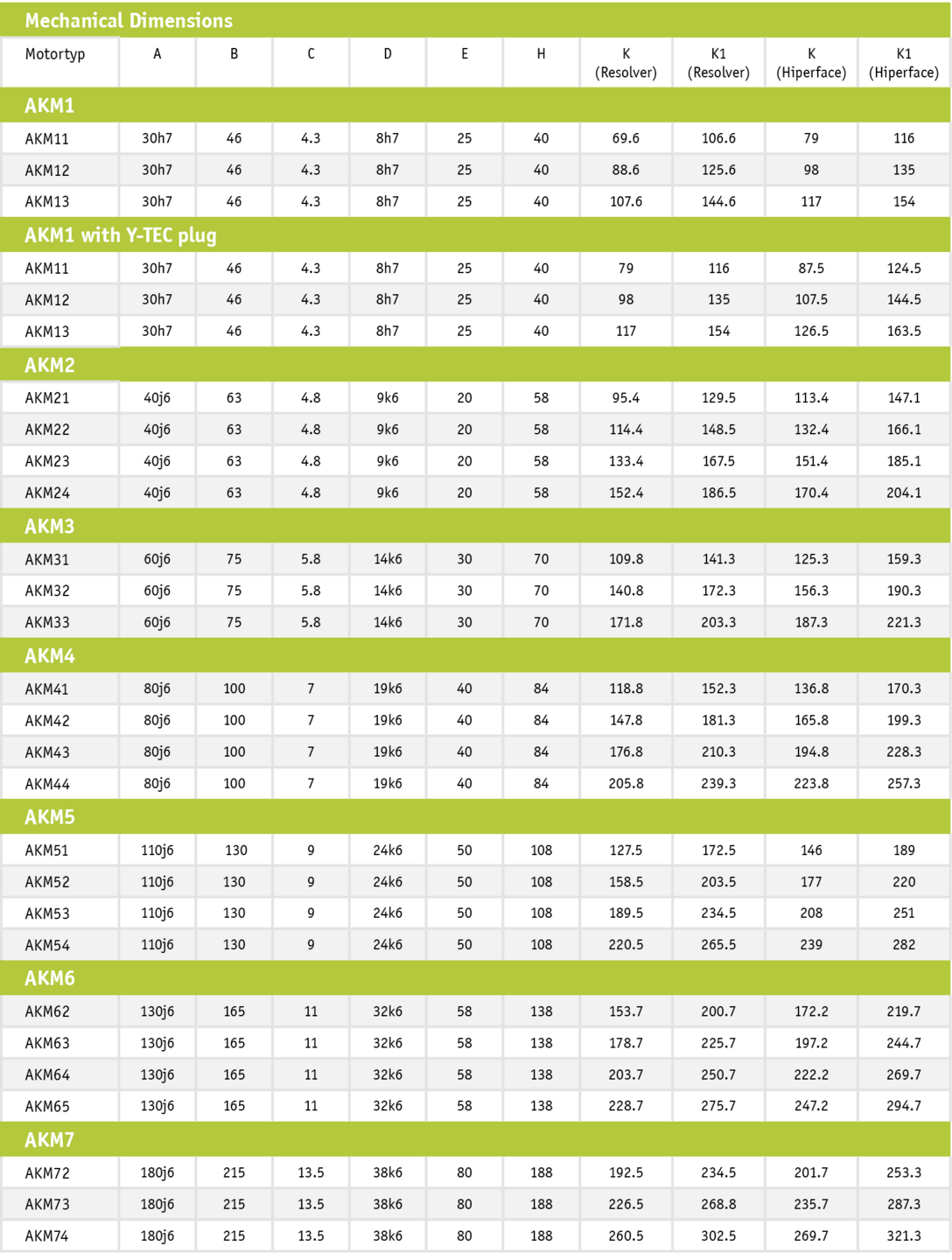

Mechanical Dimensions - Table

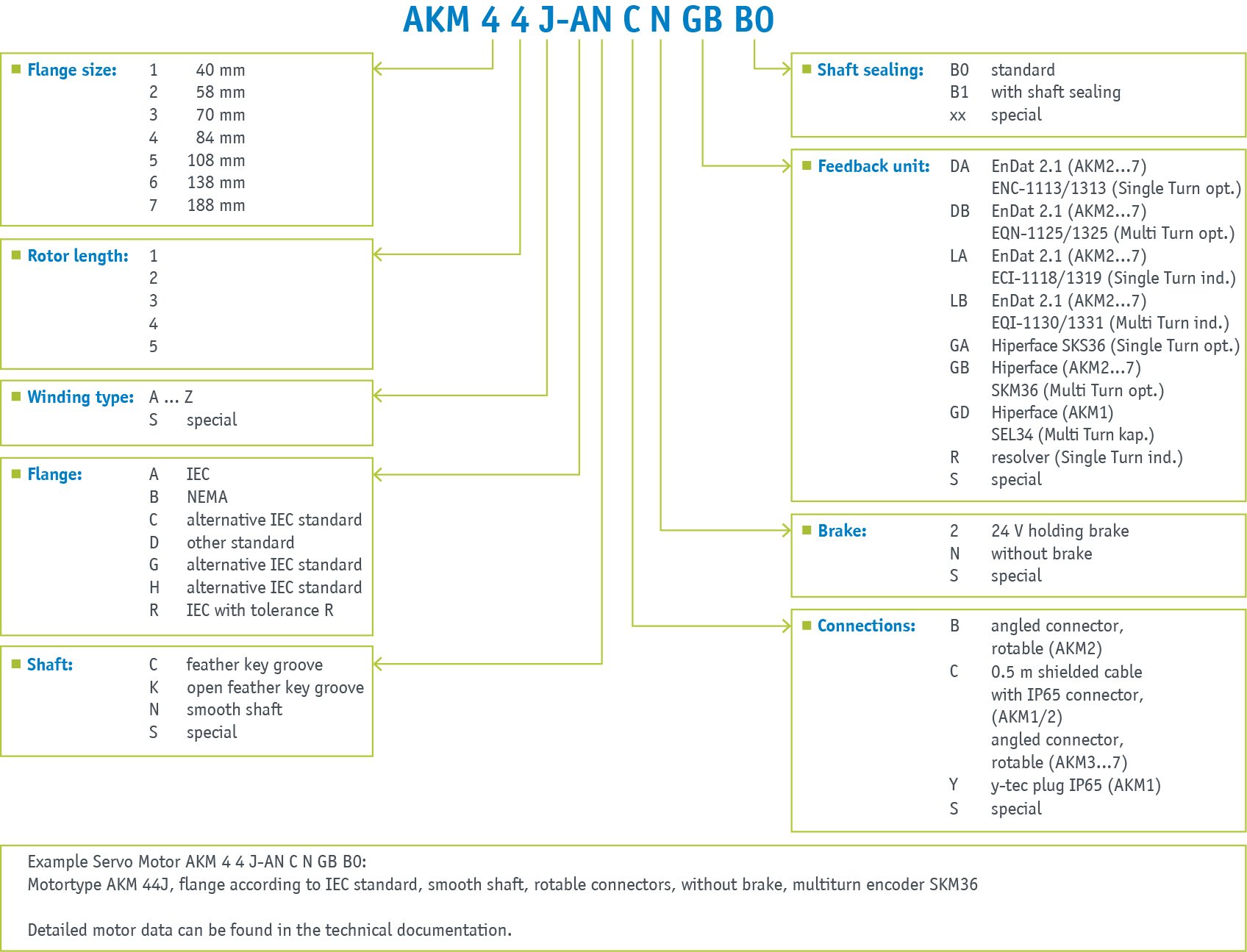

Type code - example: Motor type AKM 44J, flange in accordance with IEC standard, smooth shaft, rotatable connectors, without brake, multi-turn encoder SKM36
