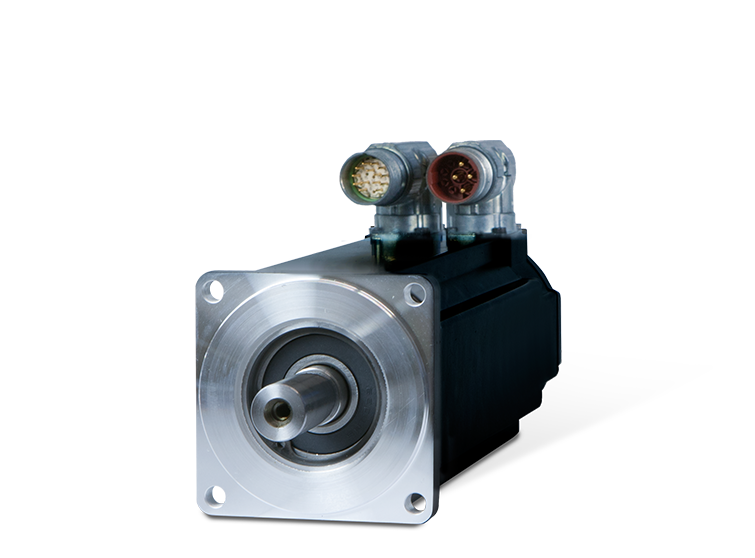

AKM 5
Servo Motor
- Rated power Pn: 0.55 - 3.83 kW
- Rated speed nn: 1000 - 6000 min-1
- Motor standstill torque M0: 4.70 – 14.4 Nm
- Rated torque Mn: 1.95 – 12.9 Nm
- Peak torque M0max: 11.6 – 38.4 Nm

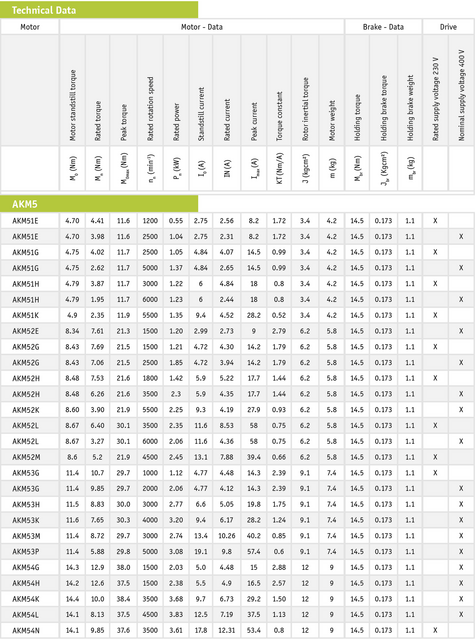

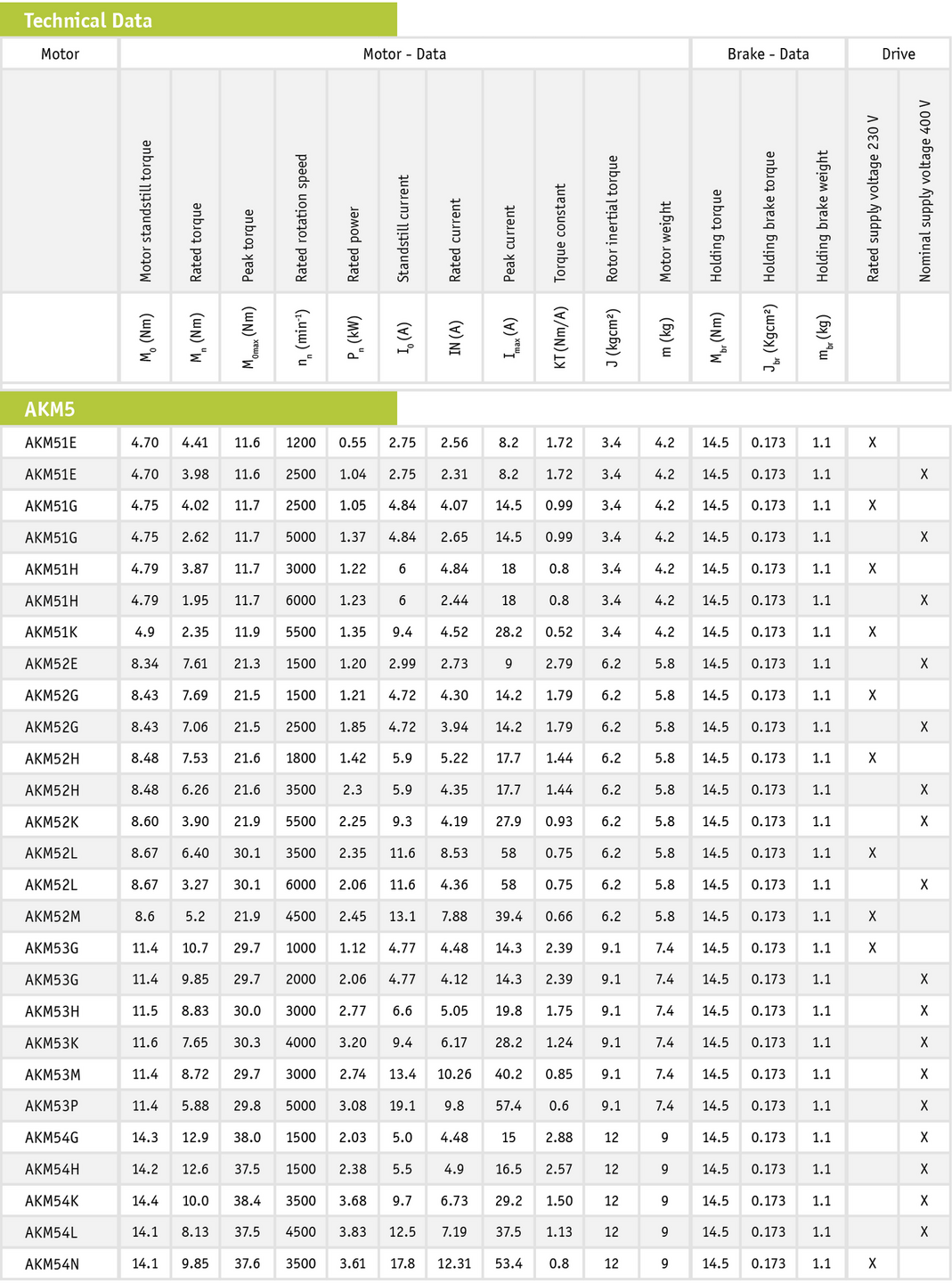

Technical Data - Servo motor AKM 5

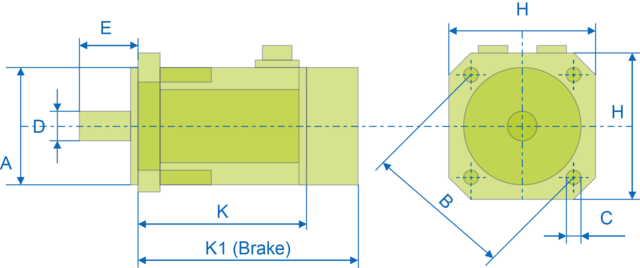

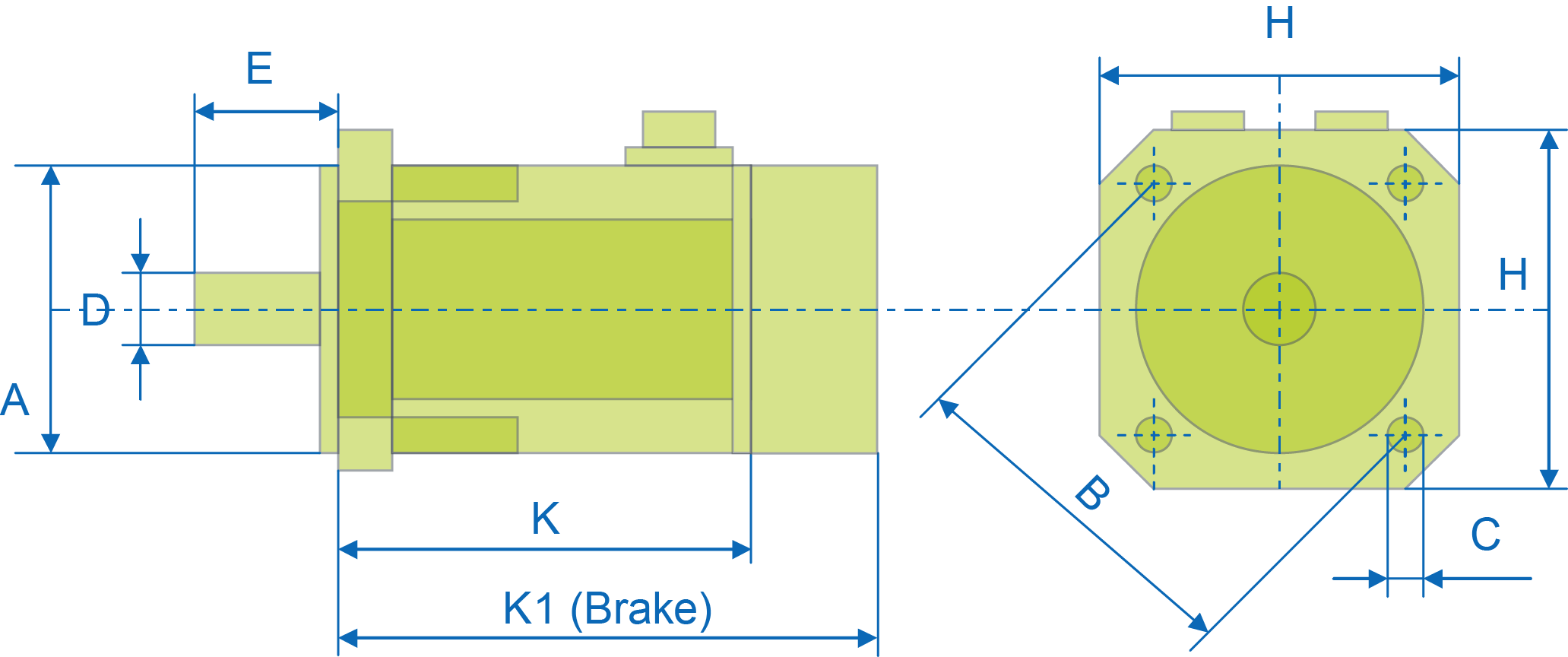

Mechanical Dimensions - Drawing

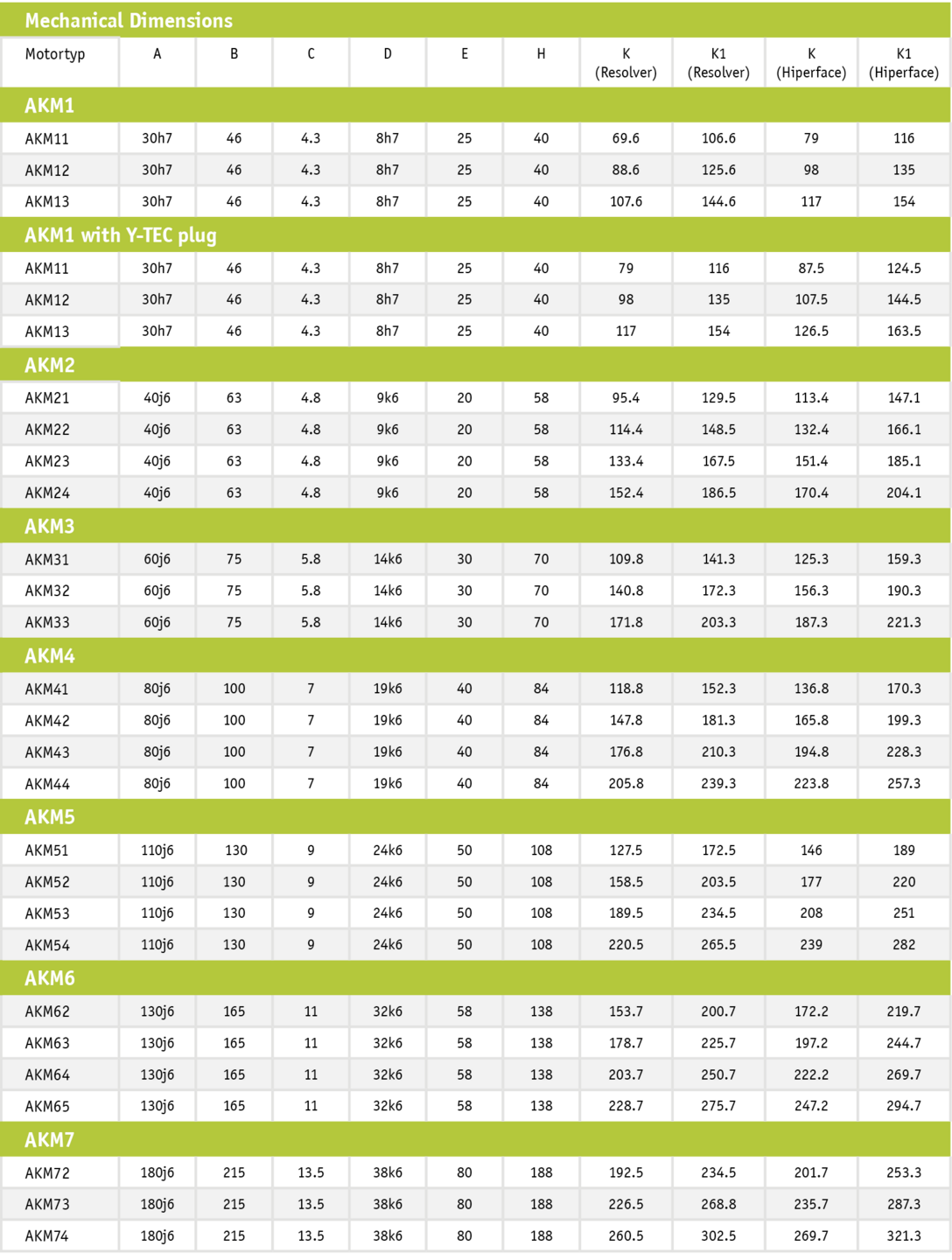

Mechanical Dimensions - Table

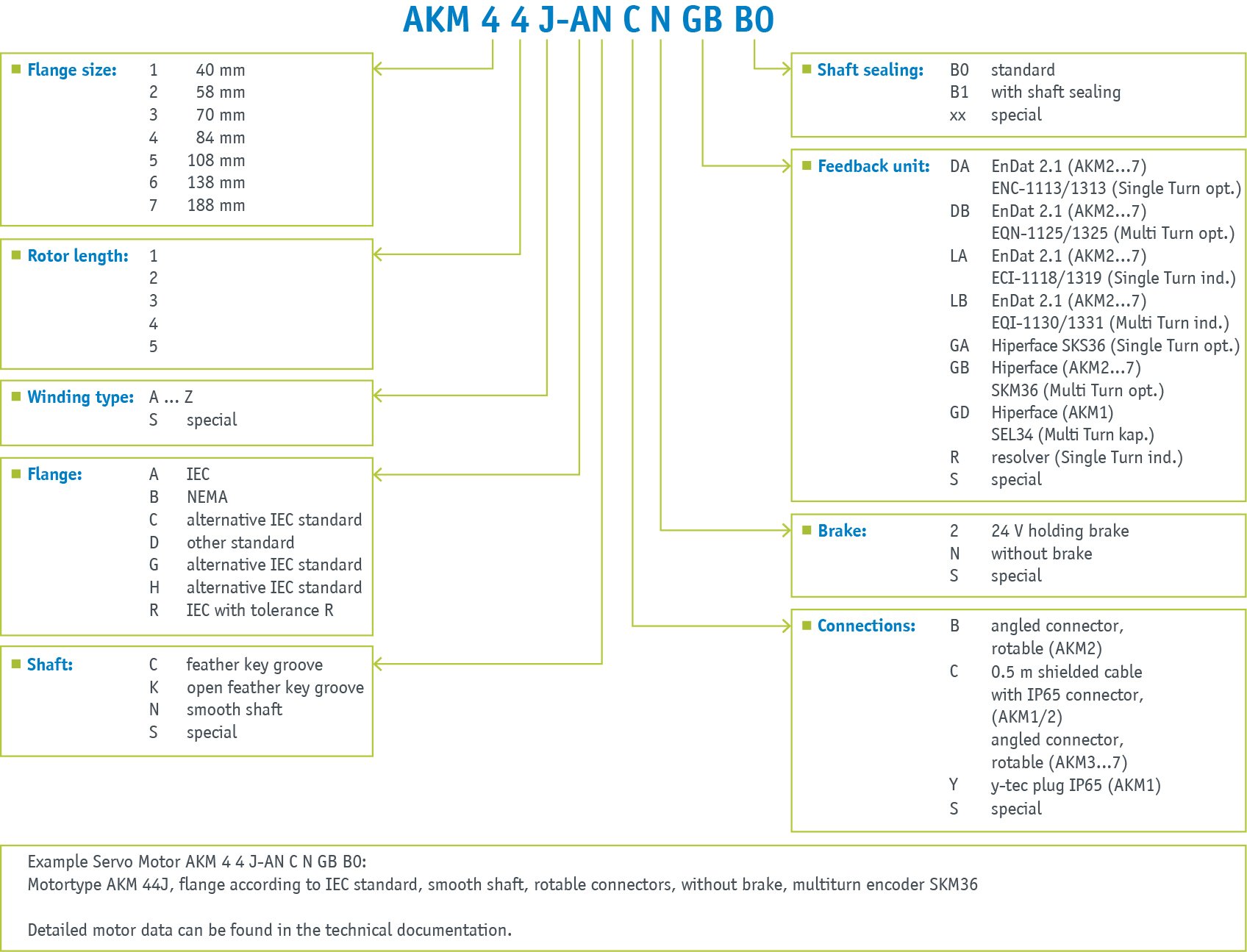

Type code - example: Motor type AKM 44J, flange in accordance with IEC standard, smooth shaft, rotatable connectors, without brake, multi-turn encoder SKM36
