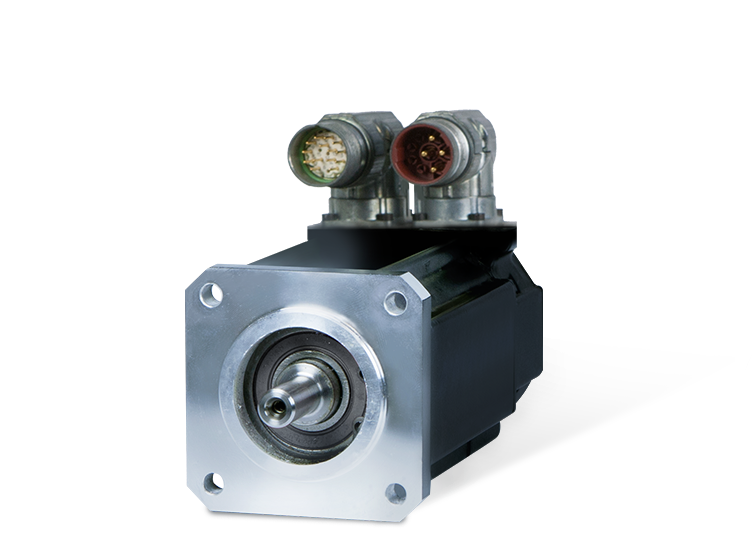

AKM 2
Servo Motor
- Rated power Pn: 0.28 - 0.94 kW
- Rated speed nn: 2000 - 8000 min-1
- Motor standstill torque M0: 0.48 – 1.42 Nm
- Rated torque Mn: 0.39 – 1.32 Nm
- Peak torque M0max: 1.47 – 4.82 Nm

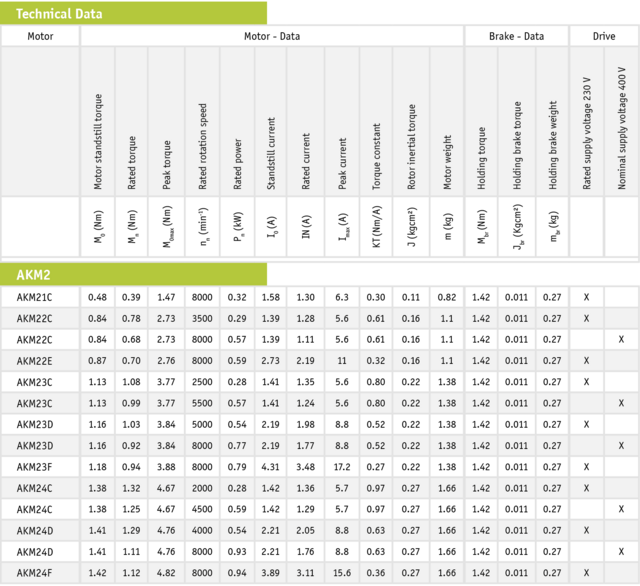

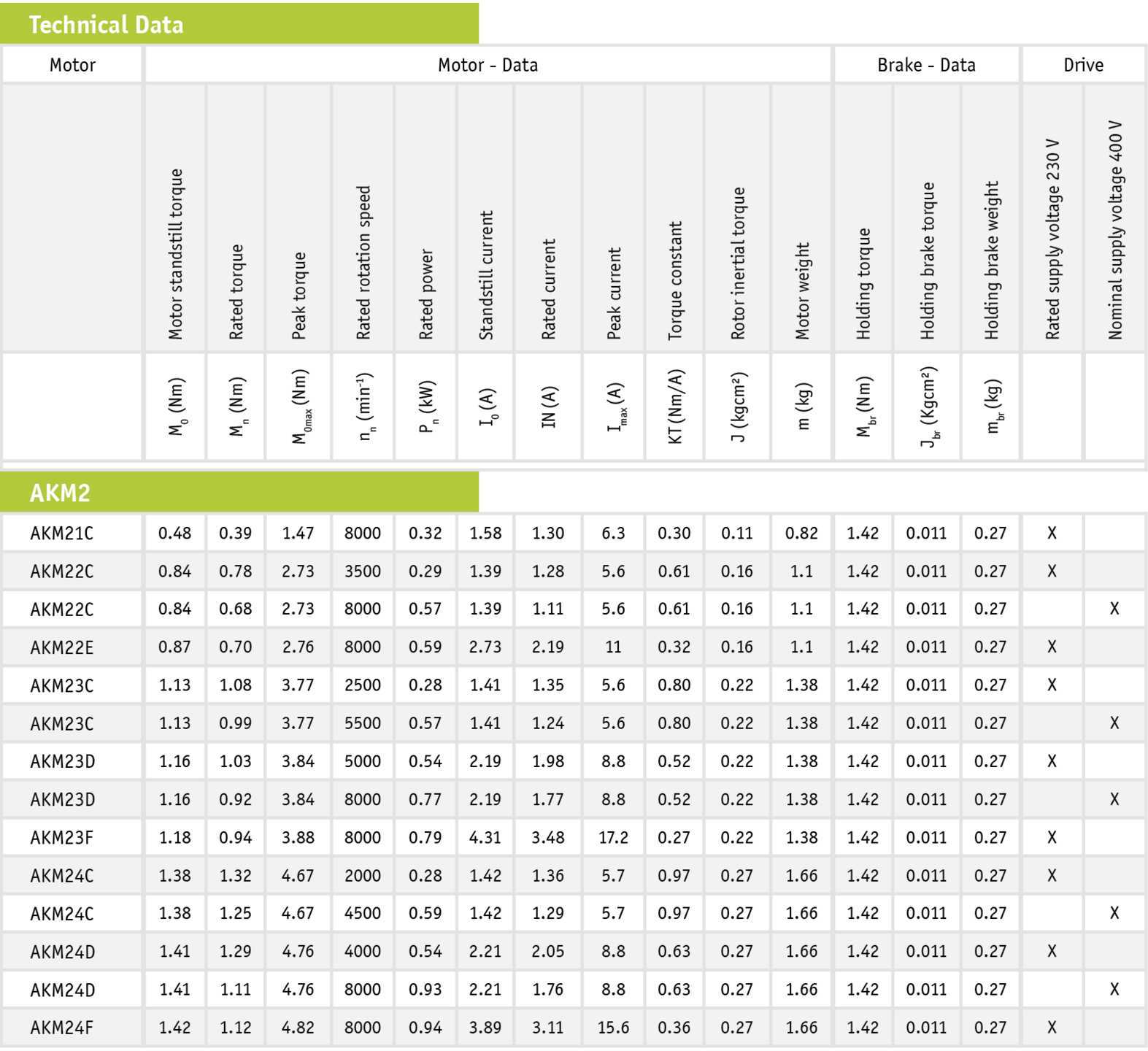

Technical Data - Servo motor AKM 2
Mechanical Dimensions - Drawing

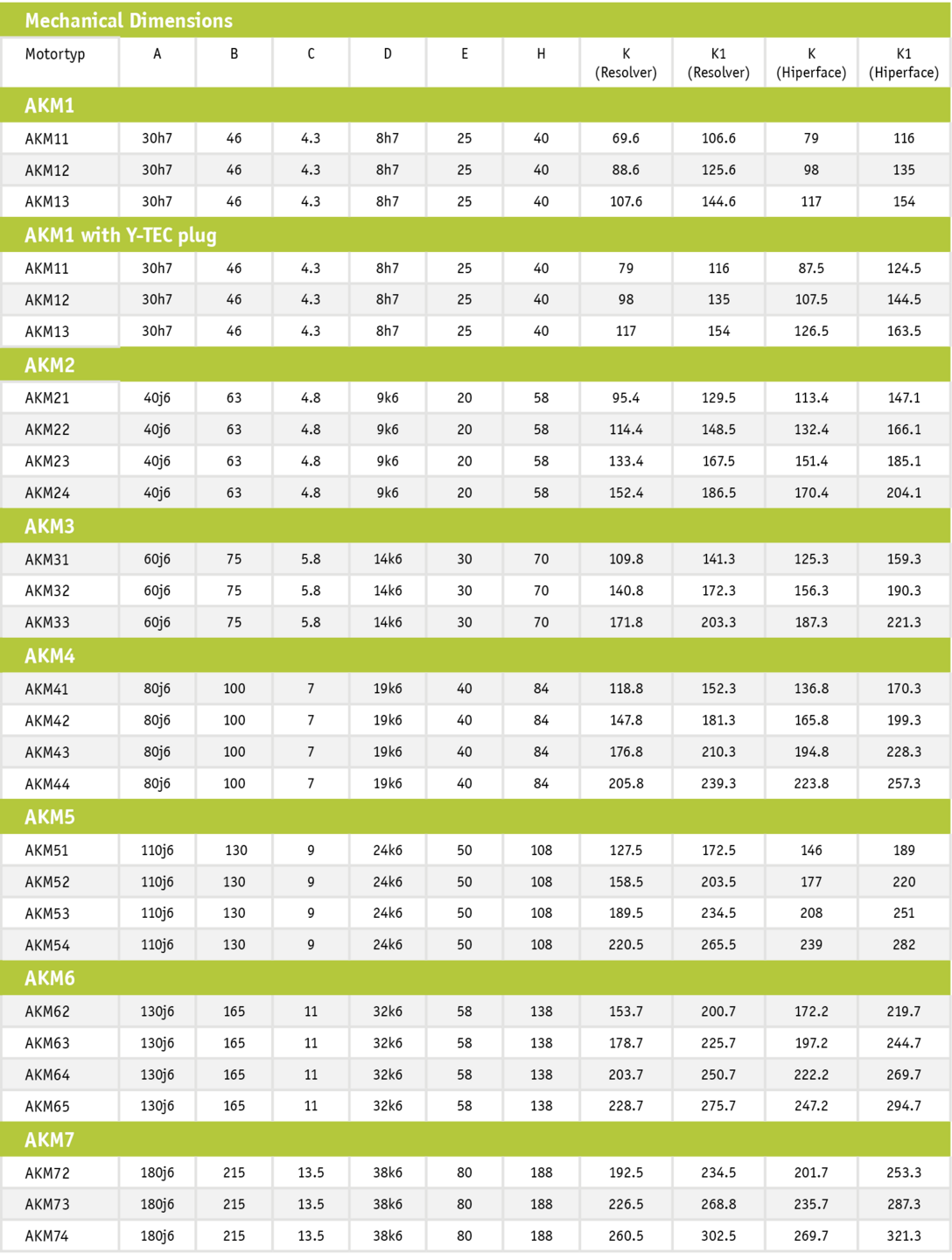

Mechanical Dimensions - Table (Flange: IEC)

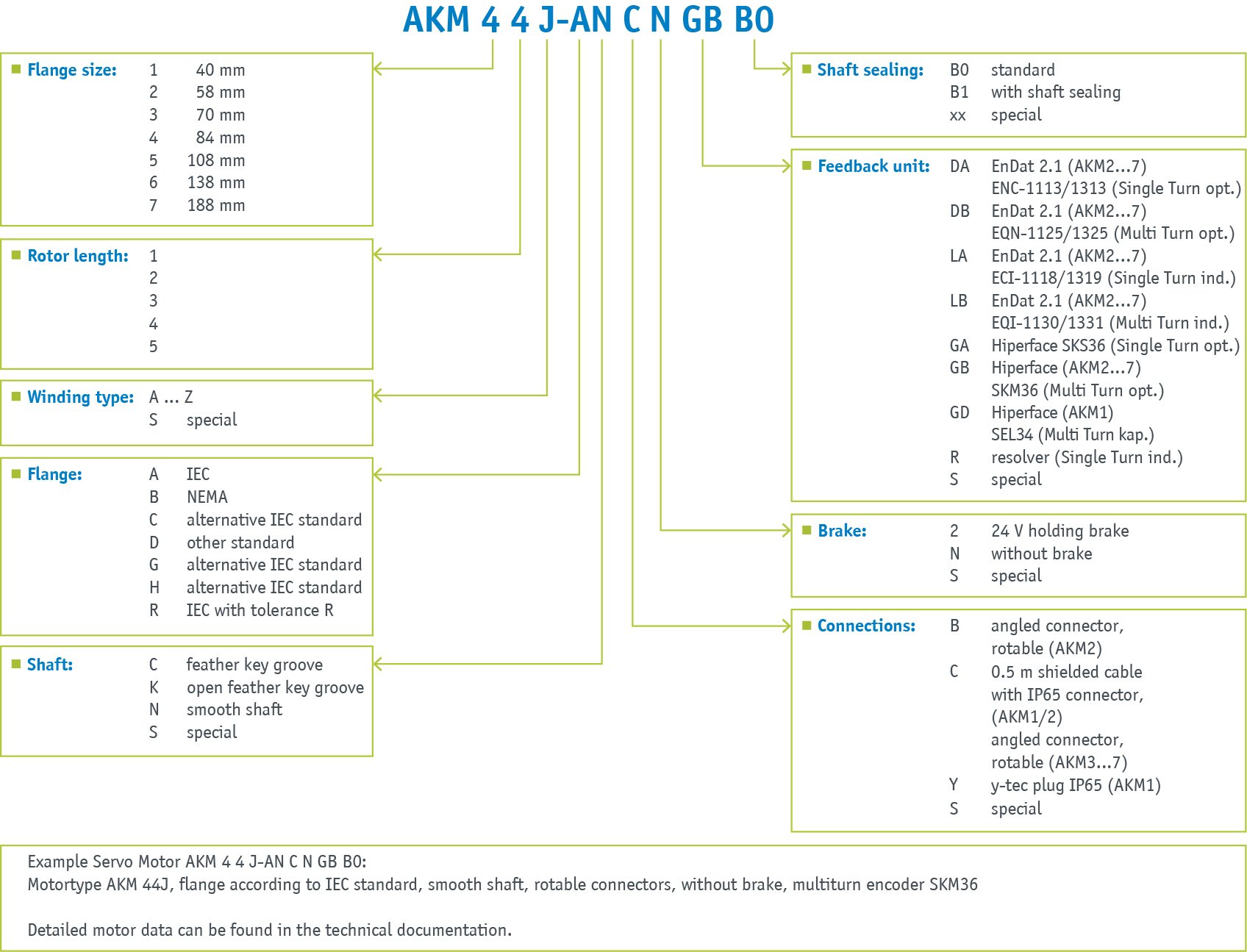

Type code - example: Motor type AKM 44J, flange in accordance with IEC standard, smooth shaft, rotatable connectors, without brake, multi-turn encoder SKM36
