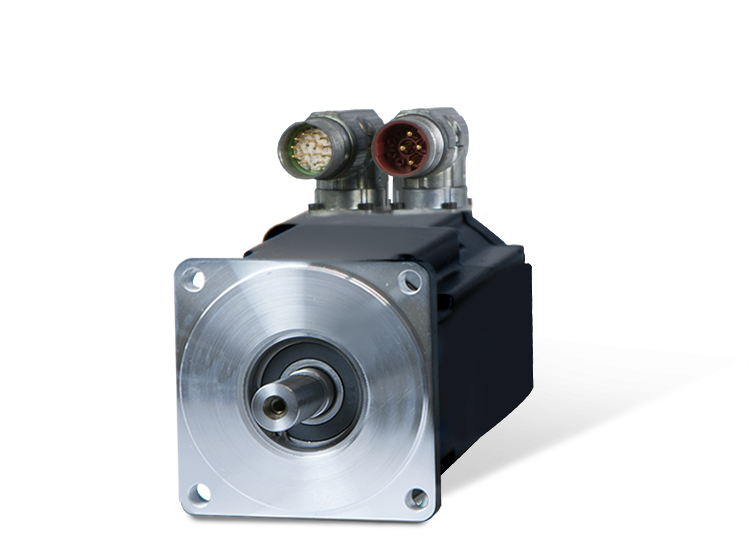

AKM 1
Servo Motor
- Rated power Pn: 0,14 - 0,30 kW
- Rated speed nn: 8000 min-1
- Motor standstill torque M0: 0.18 – 0.41 Nm
- Rated torque Mn: 0.17 – 0.36 Nm
- Peak torque M0max: 0.61 – 1.46 Nm

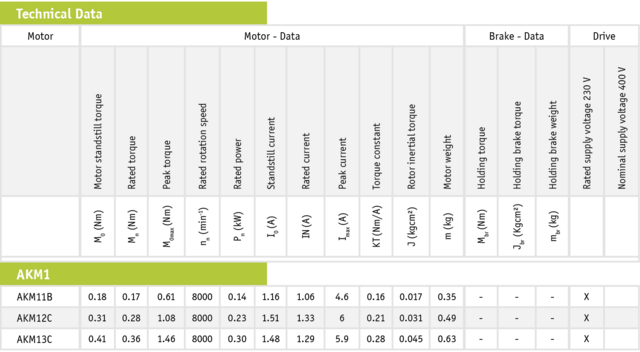

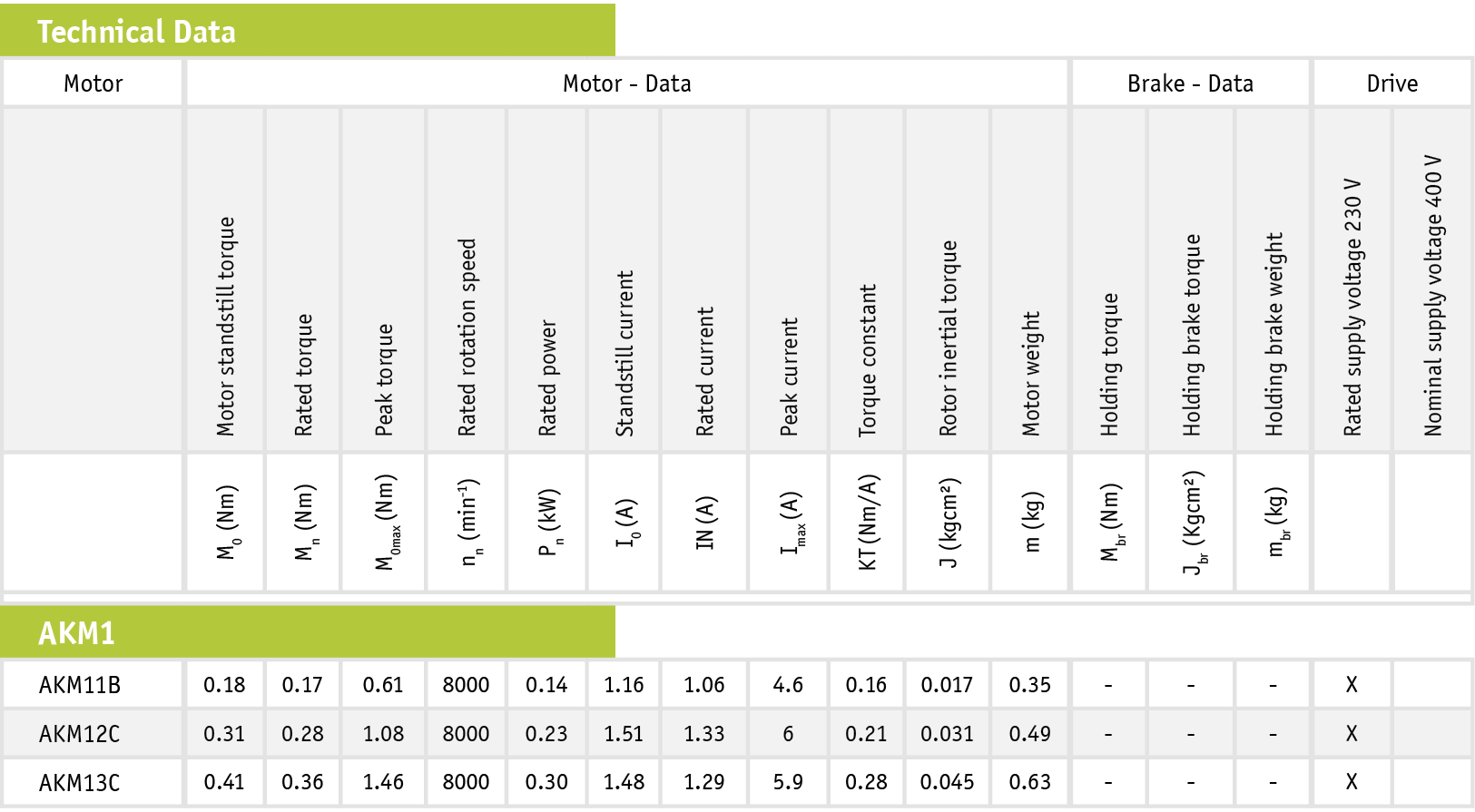

Technical Data - Servo motor AKM 1

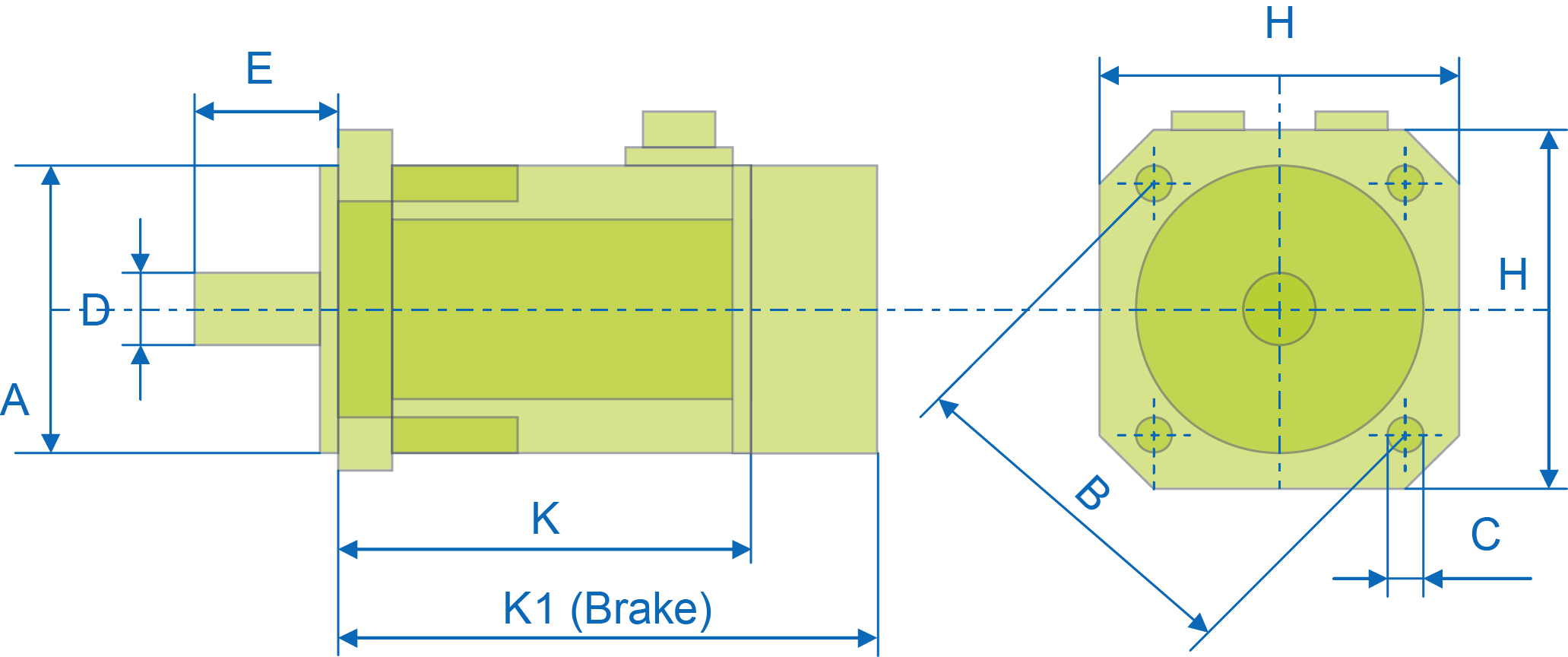

Mechanical Dimensions - Drawing

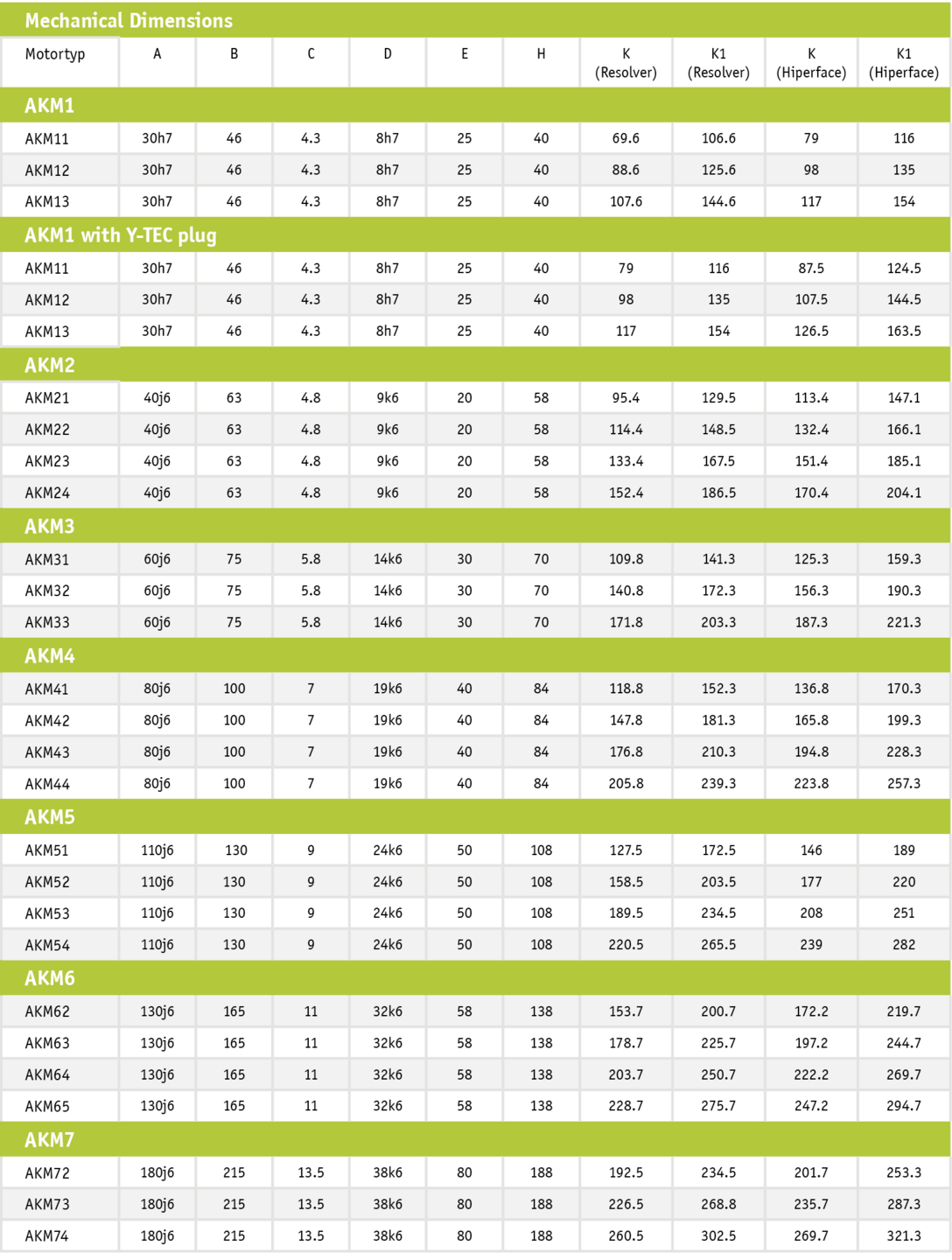

Mechanical Dimensions - Table (Flange: IEC)

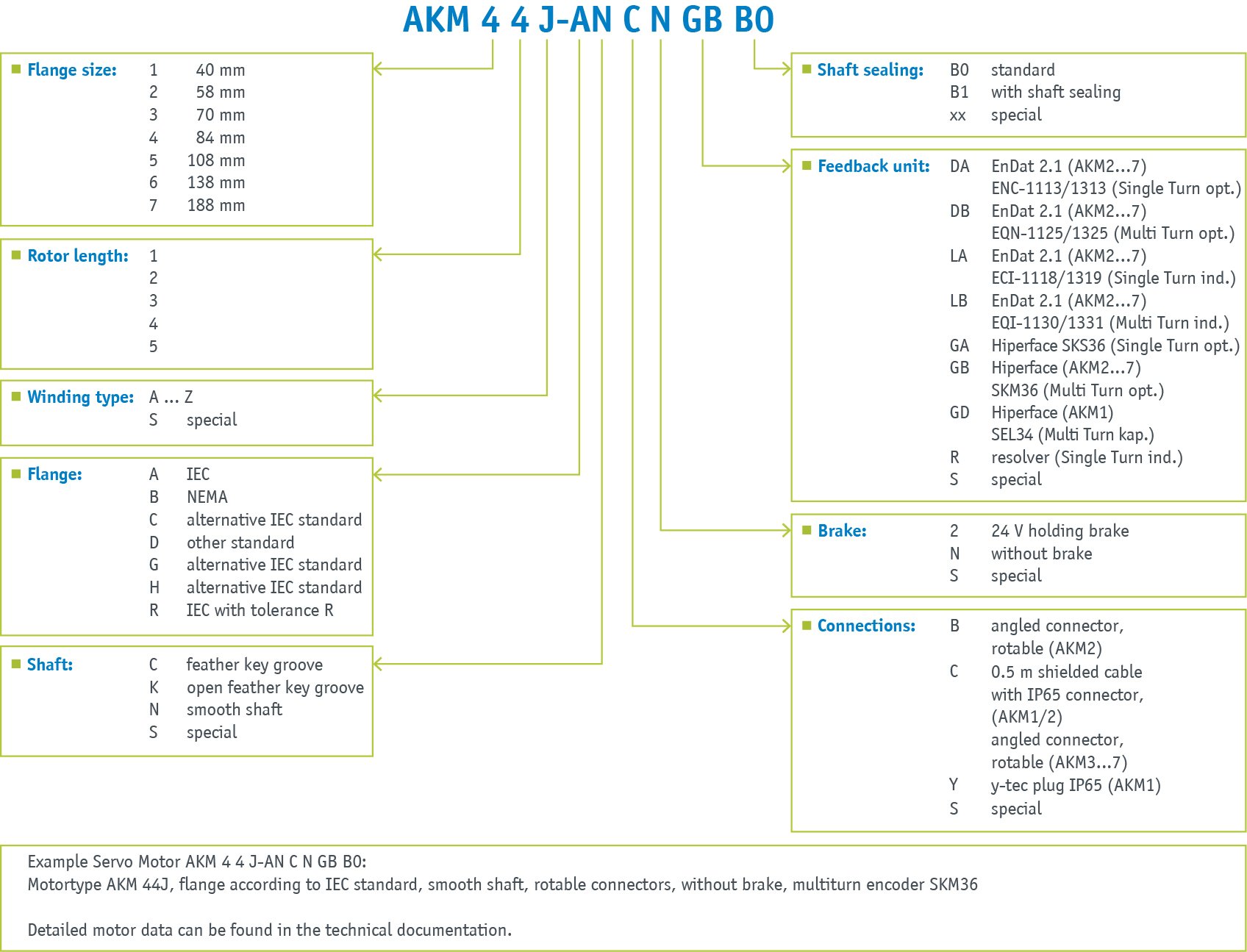

Type code - example: Motor type AKM 44J, flange in accordance with IEC standard, smooth shaft, rotatable connectors, without brake, multi-turn encoder SKM36
