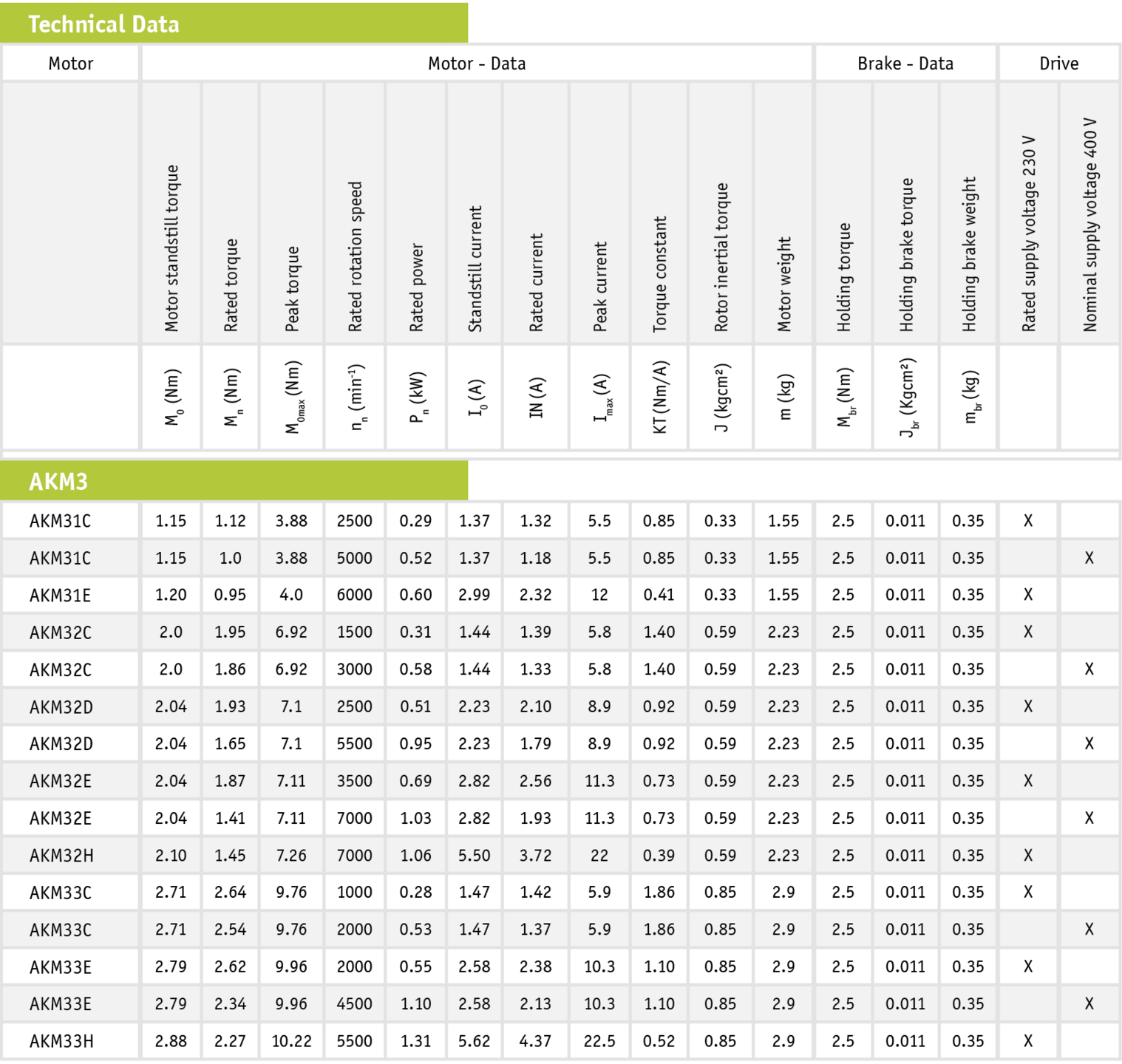

Technical Data - Servo motor AKM 3

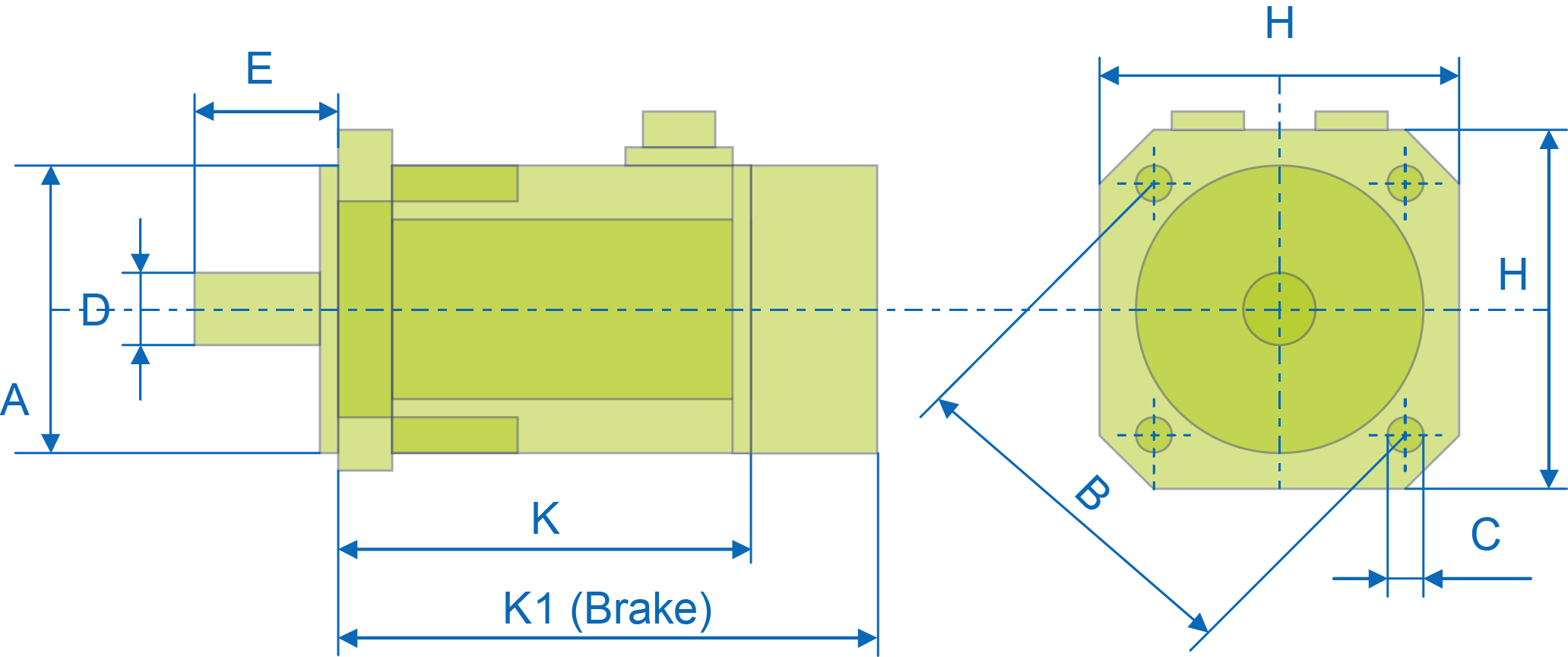

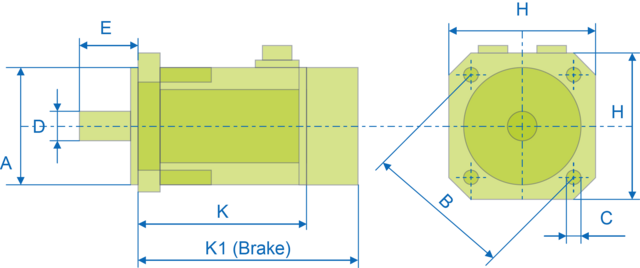

Mechanical Dimensions - Drawing

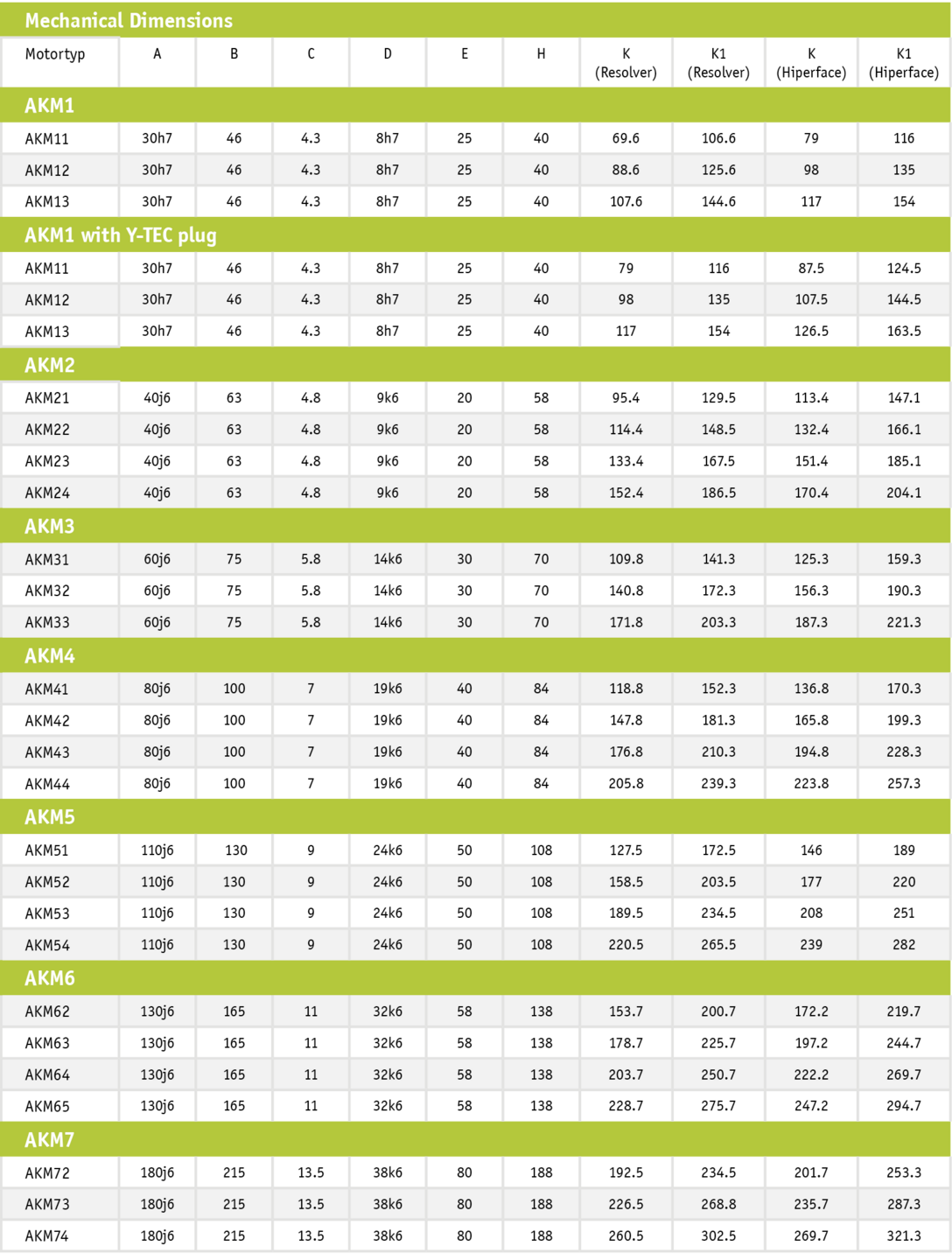

Mechanical Dimensions - Table (Flange: IEC)

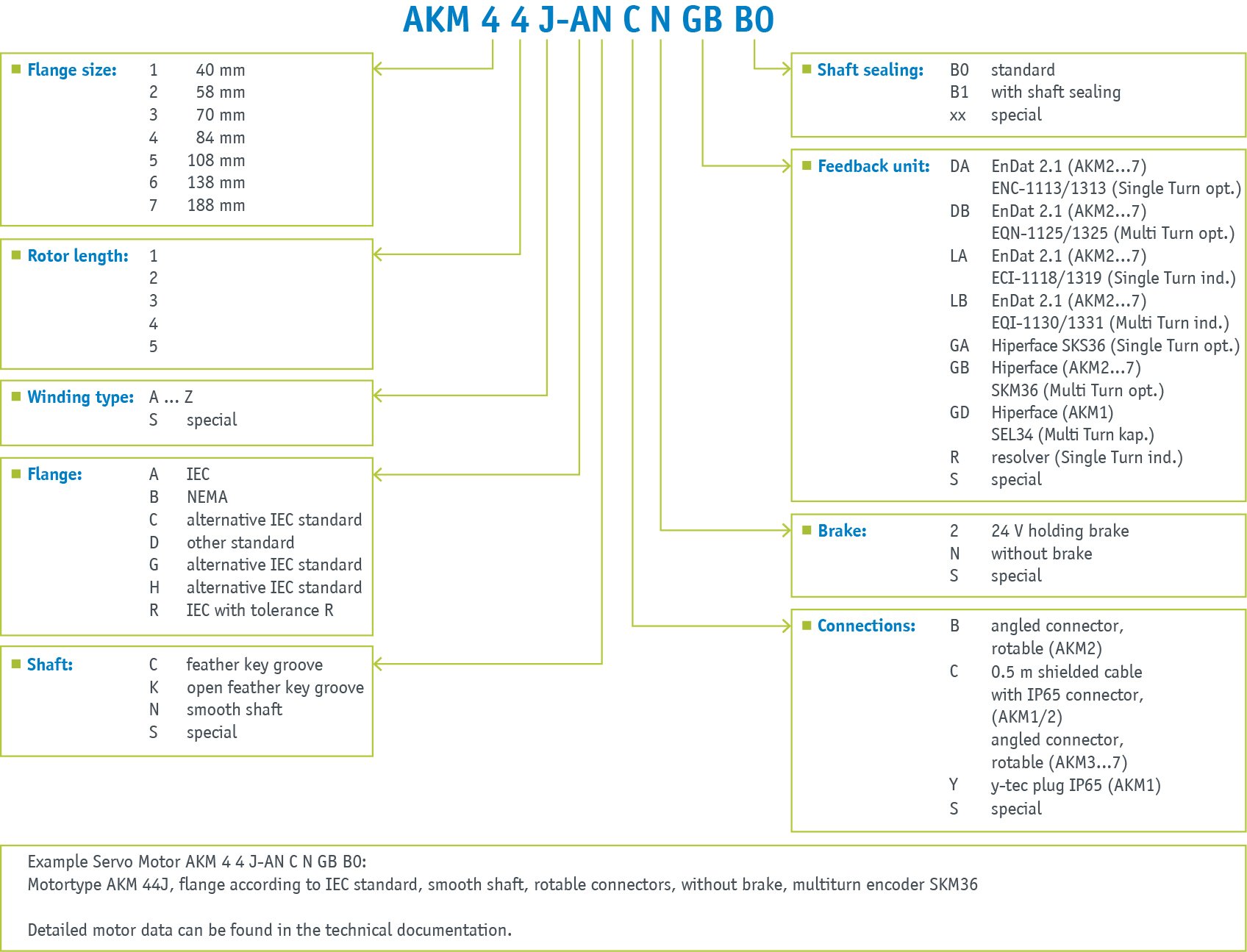

Type code - example: Motor type AKM 44J, flange in accordance with IEC standard, smooth shaft, rotatable connectors, without brake, multi-turn encoder SKM36
