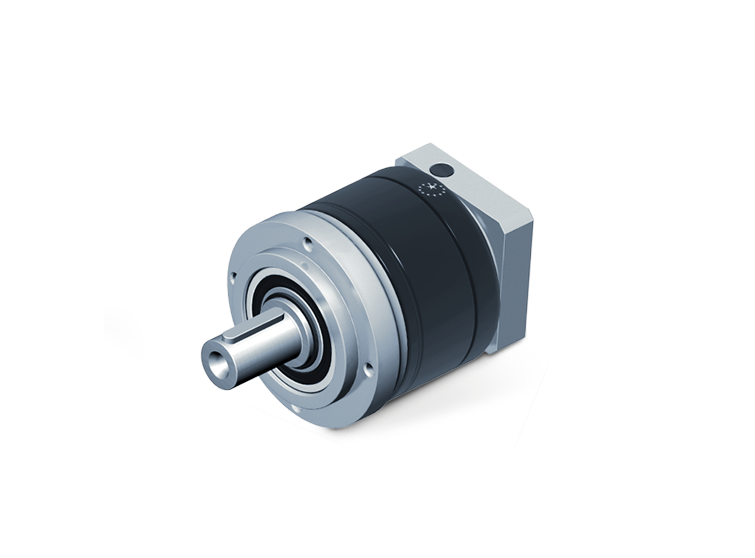

PEII 050
Planetary Gear
- Gear ratio i: 3-100
- Nominal output torque T2N: 10-16 Nm
- Nominal input speed n1N: 4500 rpm
- Backlash Λφ2: ≤ 8-≤ 10 arcmin
- Max. allowed acceleration torque T2B: 18-28.8 Nm

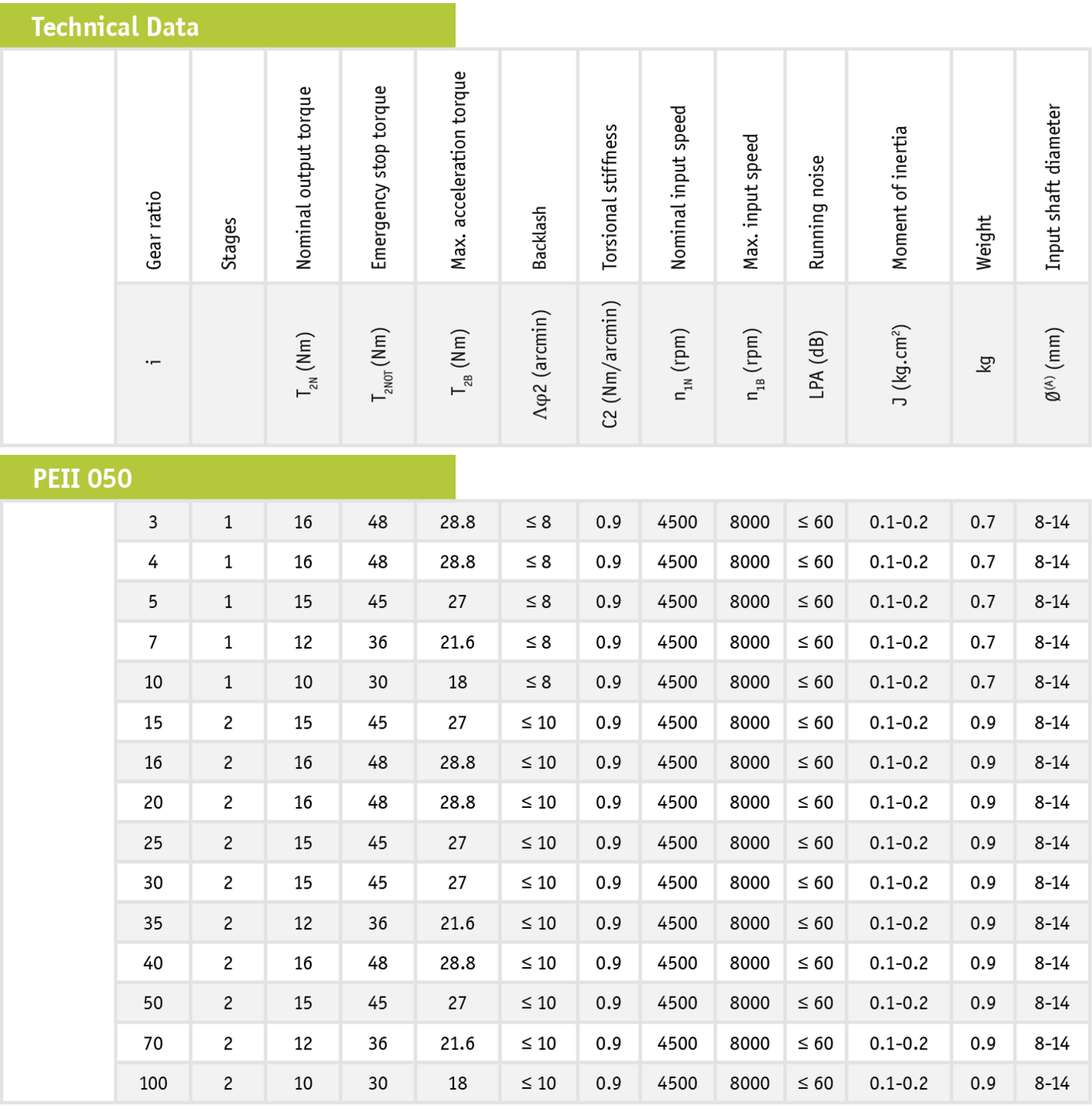

Technical Data – Planetary Gears PEII 050

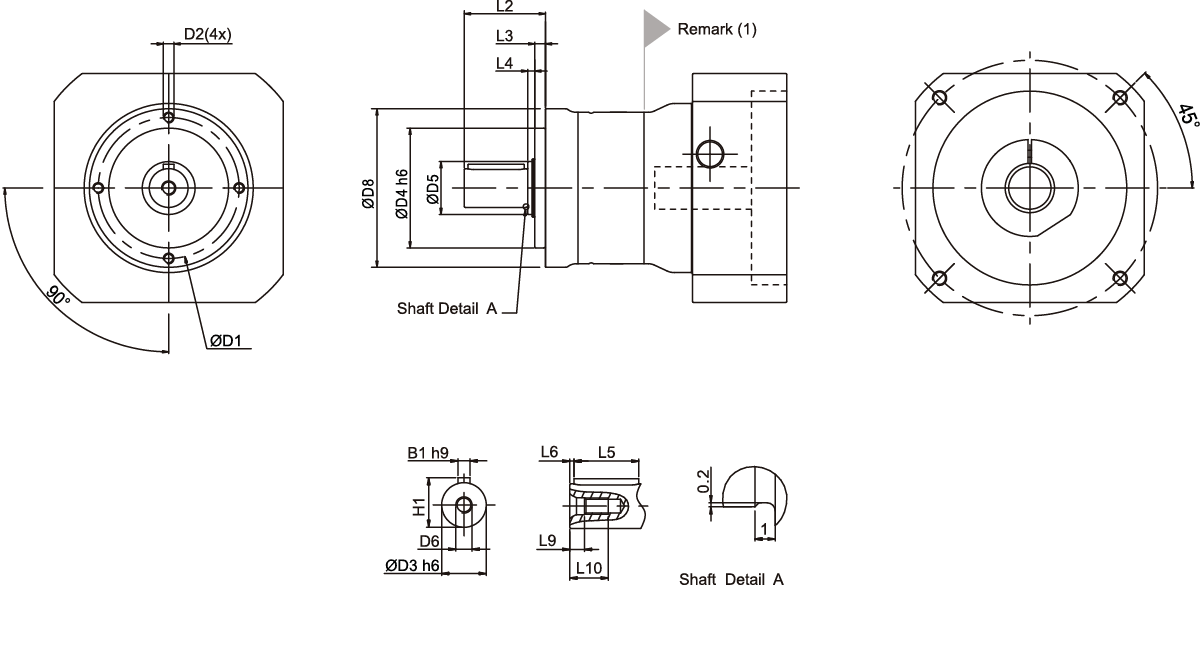

Mechanical Dimensions - Drawing

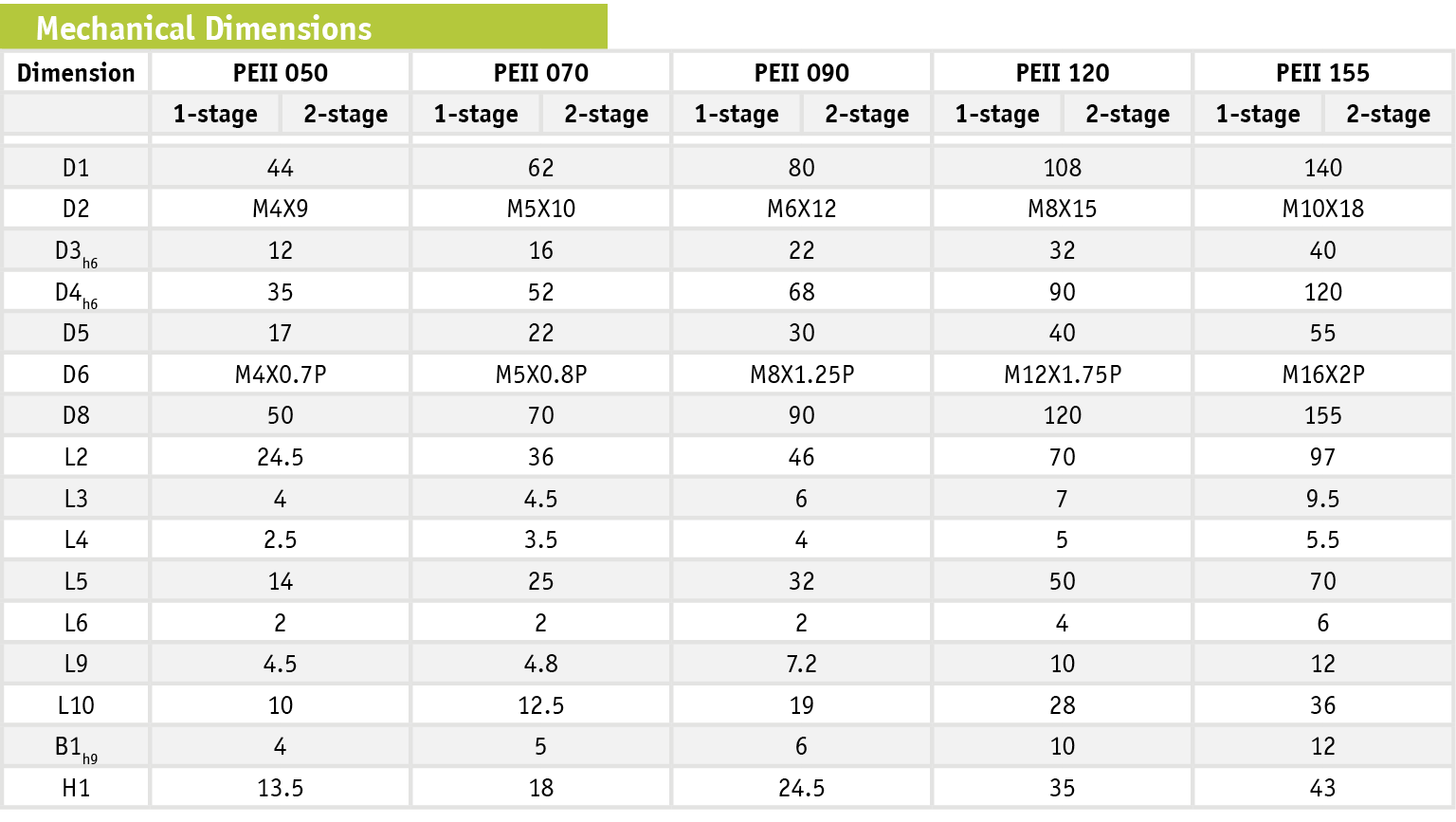

Mechanical Dimensions - Table
