Planetary Gear

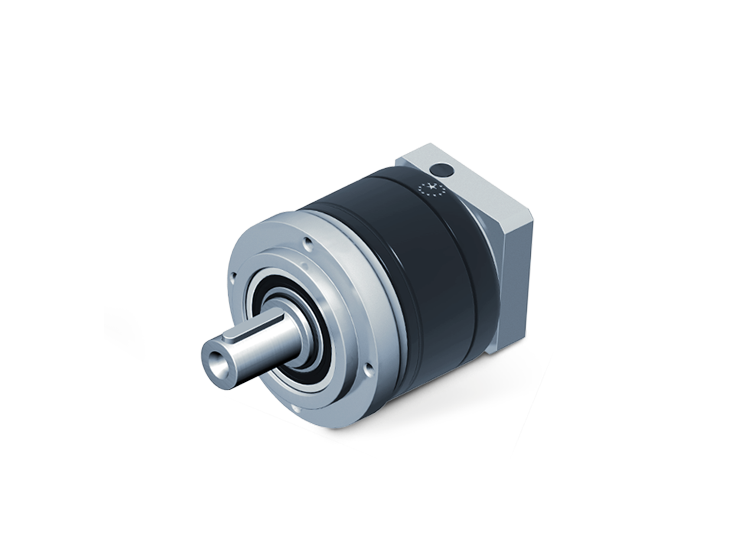

PEII 090

Planetary Gear

Gear ratio i: 3-100
Nominal output torque T_2N: 68-123 Nm
Nominal input speed n_1N: 3600 rpm
Backlash Λφ2: ≤ 6-≤ 8 arcmin
Max. allowed acceleration torque T_2B: 126-221.4 Nm

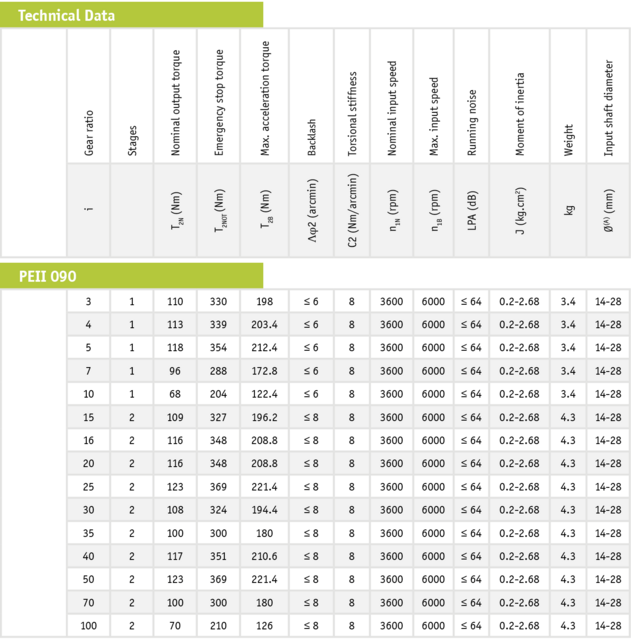

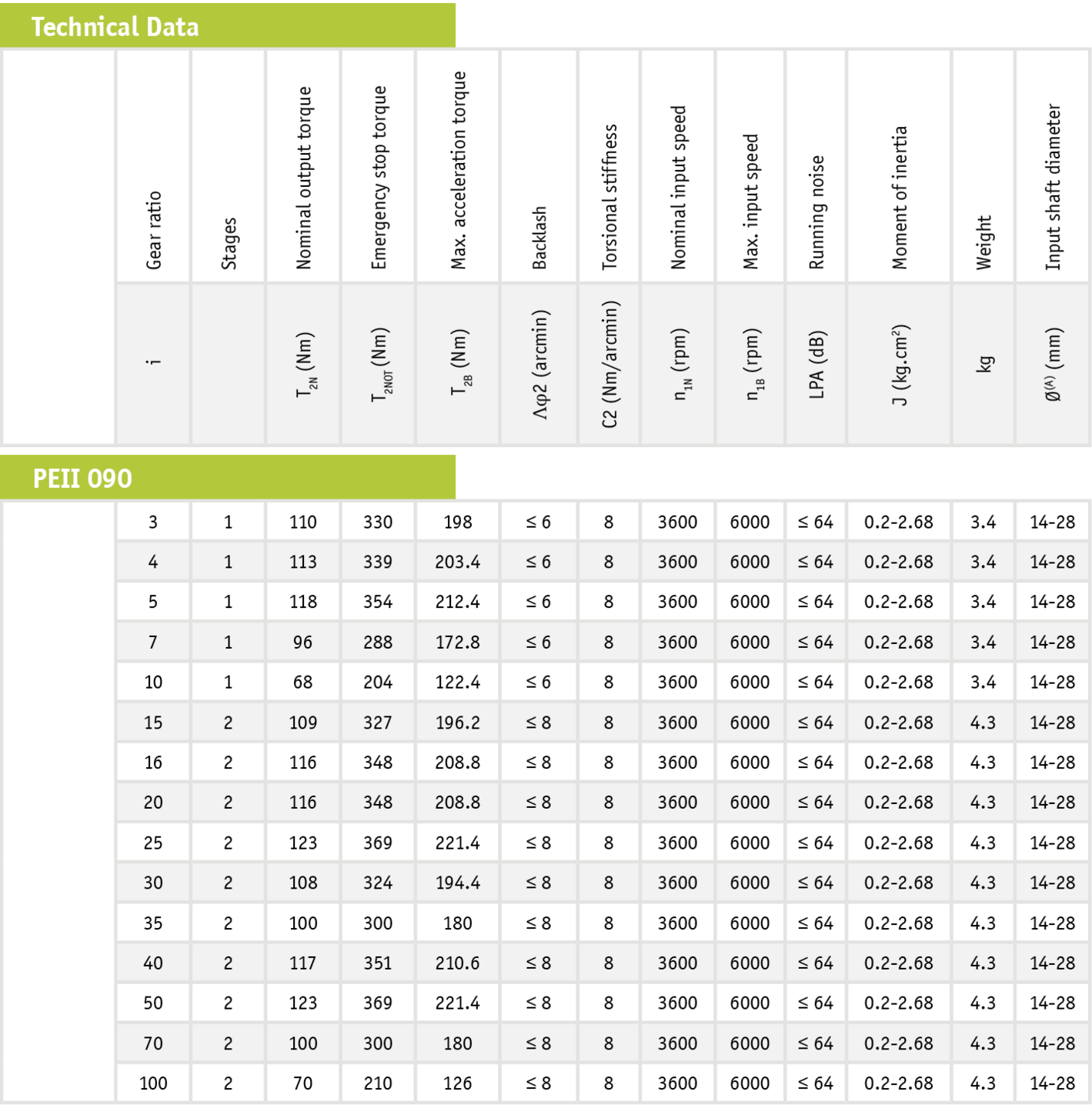

Technical Data – Planetary Gears PEII 090

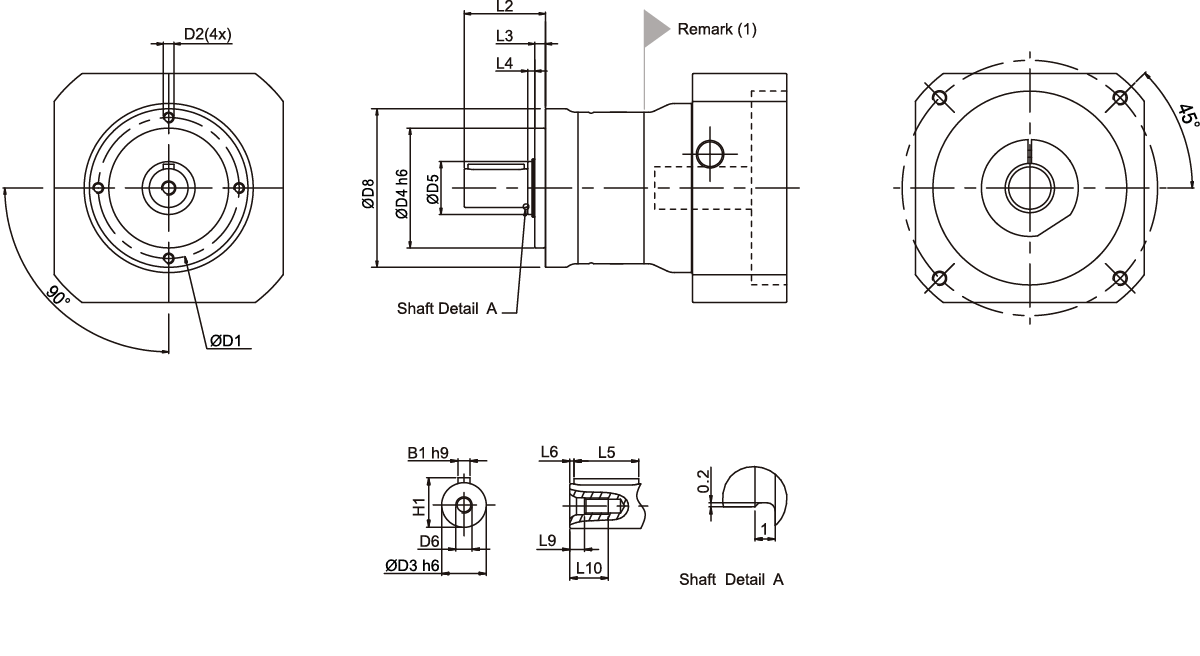

Mechanical Dimensions - Drawing

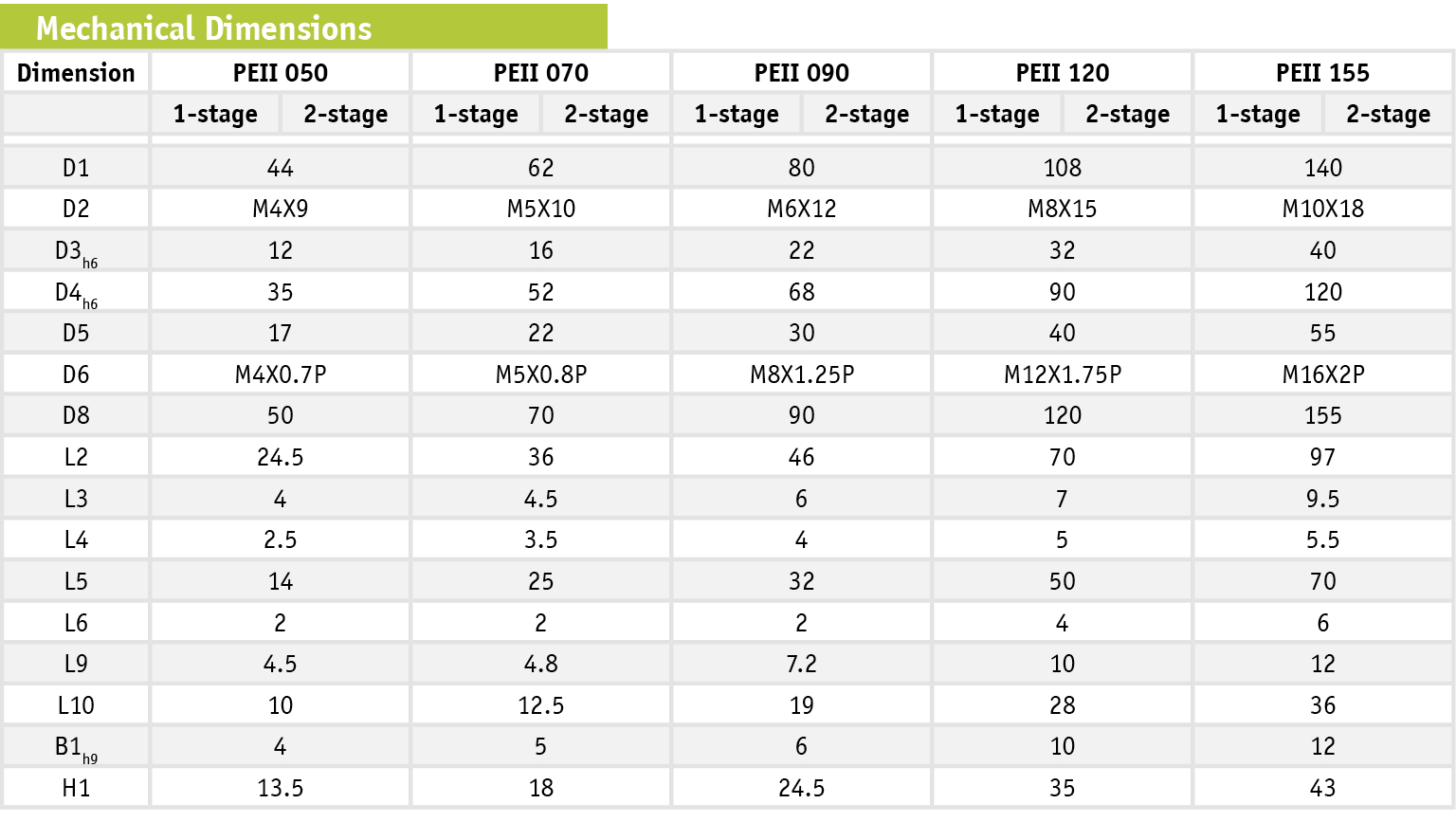

Mechanical Dimensions - Table
