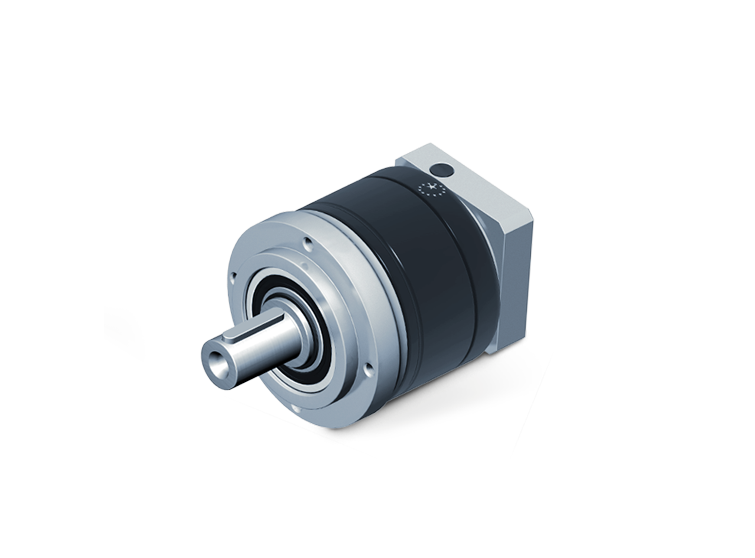

PEII 070
Planetary Gear
- Gear ratio i: 3-100
- Nominal output torque T2N: 27-43 Nm
- Nominal input speed n1N: 4000 rpm
- Backlash Λφ2: ≤ 7-≤ 9 arcmin
- Max. allowed acceleration torque T2B: 48.6-77.4 Nm

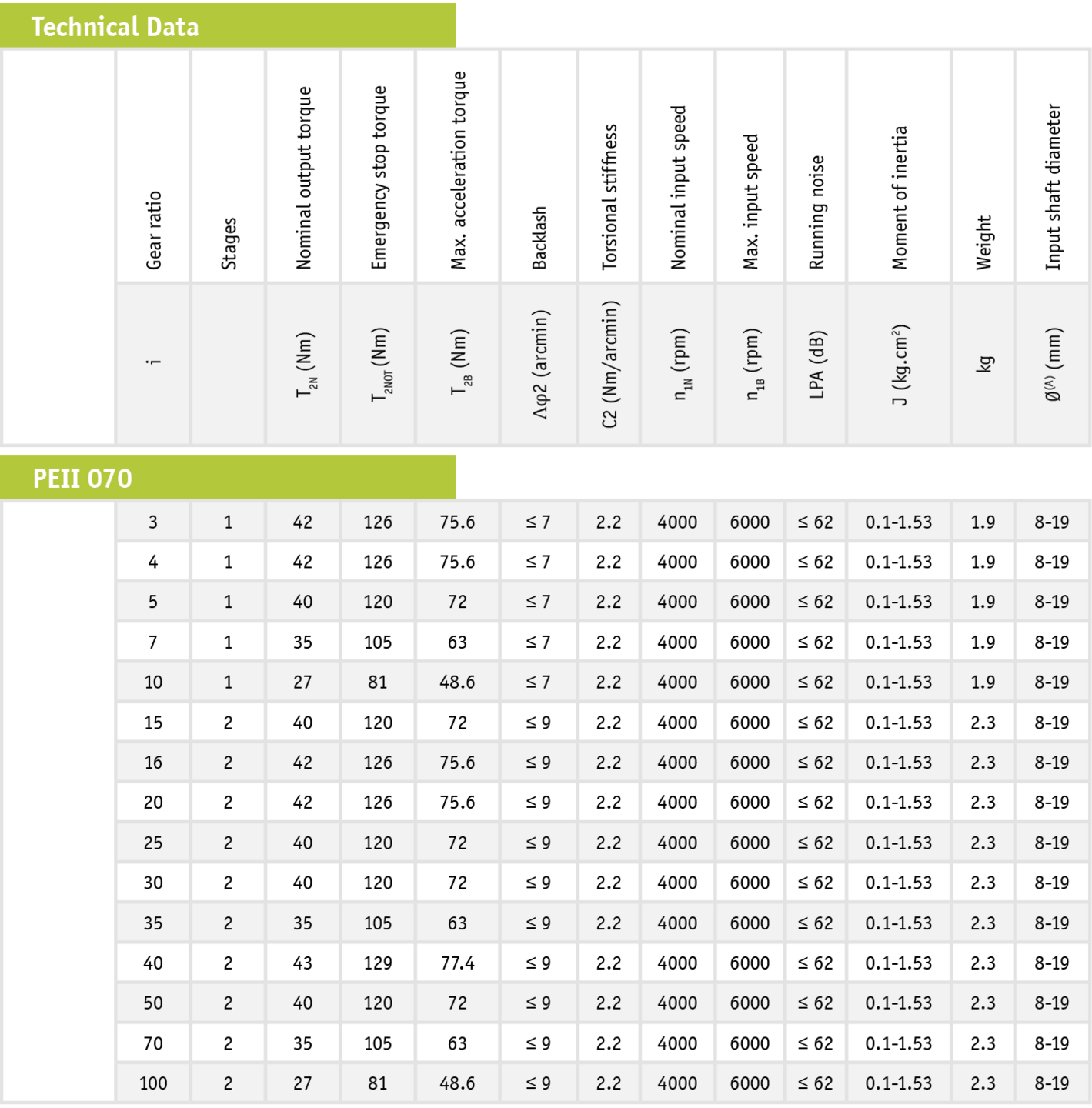

Technical Data – Planetary Gears PEII 070

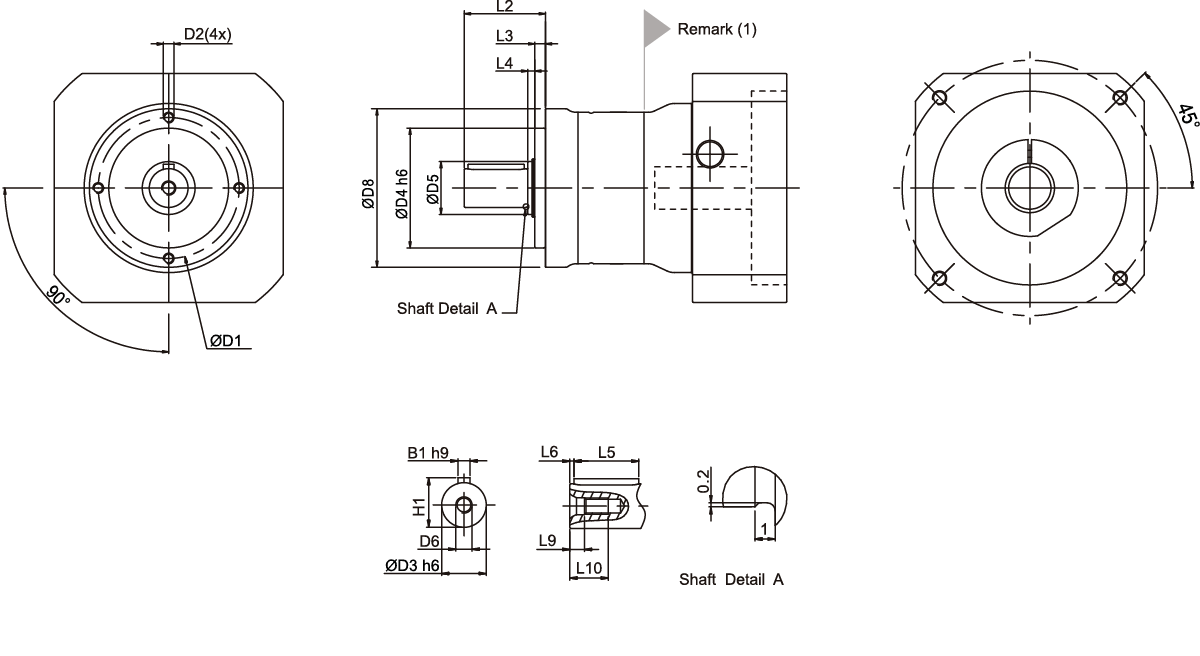

Mechanical Dimensions - Drawing

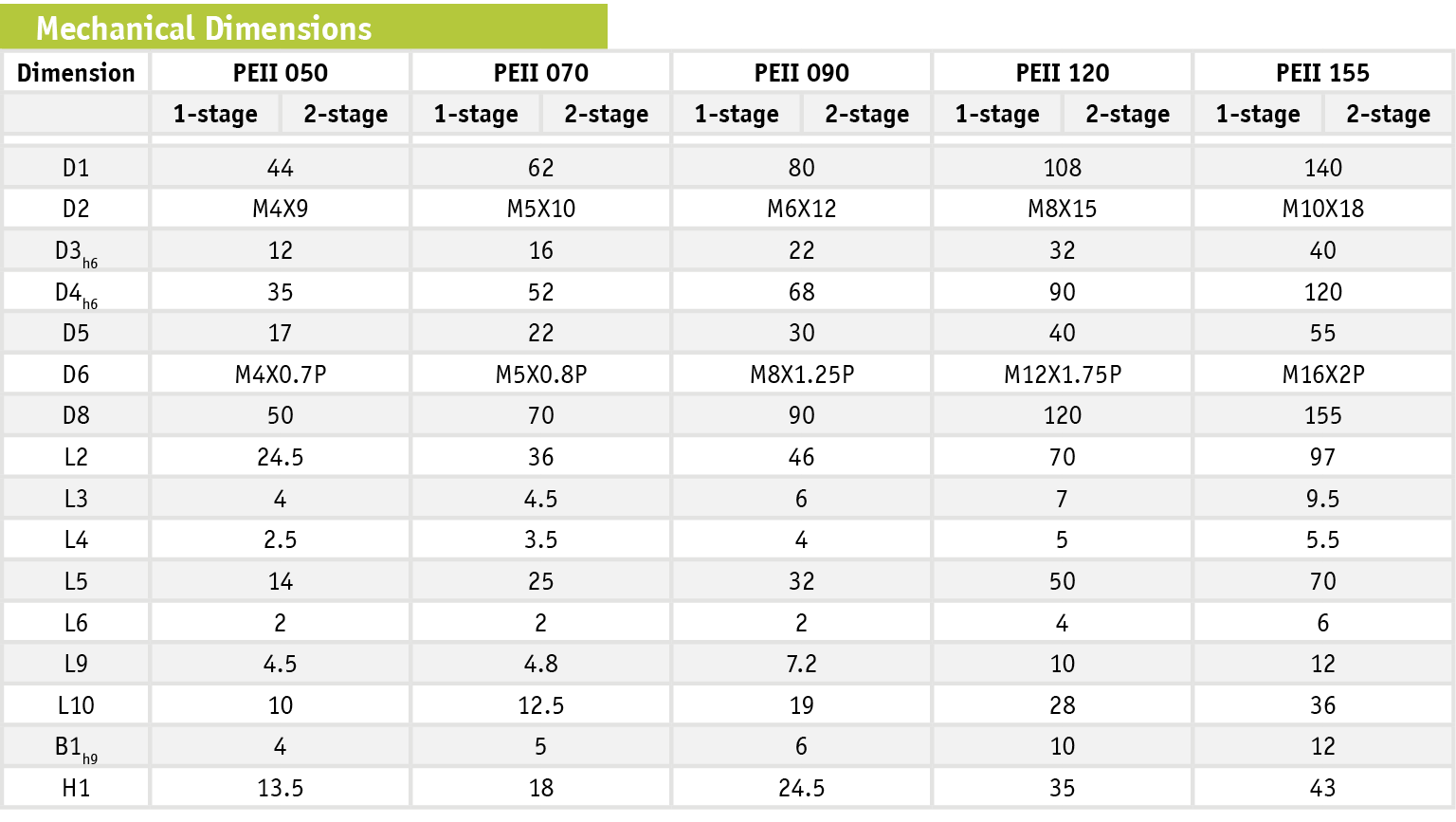

Mechanical Dimensions - Table
