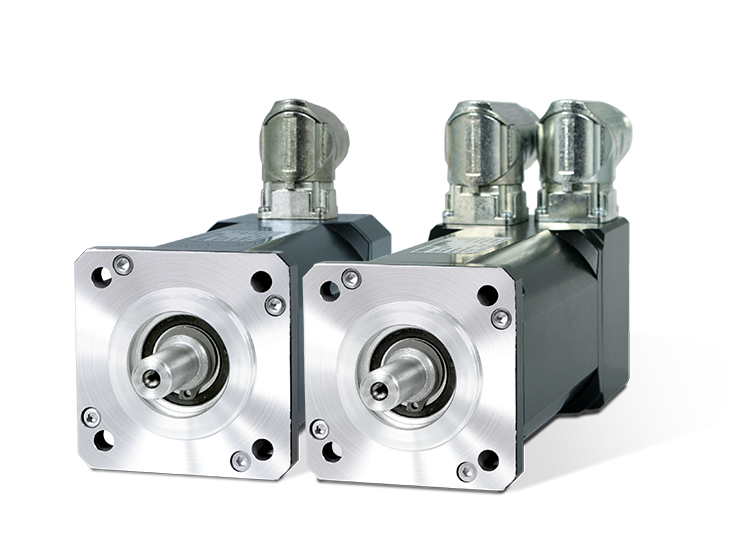

DSM5-0
AC Servo Motors
- Rated power Pn: 0.126 - 0.243 kW
- Rated speed nn: 8000 min-1
- Motor standstill torque M0: 0.19 - 0.38 Nm
- Rated torque Mn: 0.15 - 0.29 Nm
- Peak torque M0max: 0.6 - 1.3 Nm
Mechanical dimensions - Servomotor DSM5-0

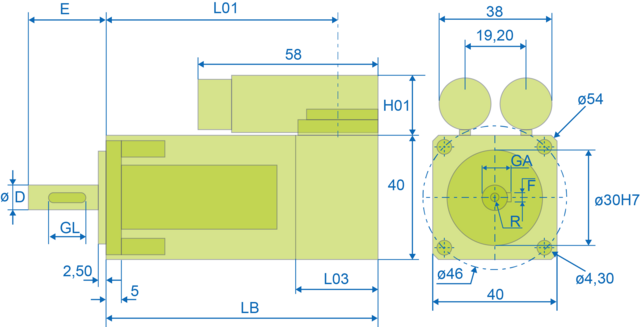

Mechanical dimensions - drawing

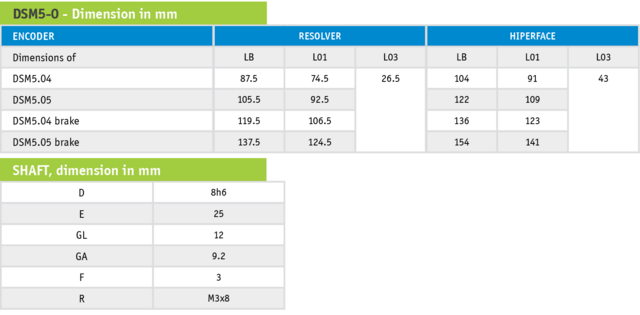

Mechanical dimensions - table

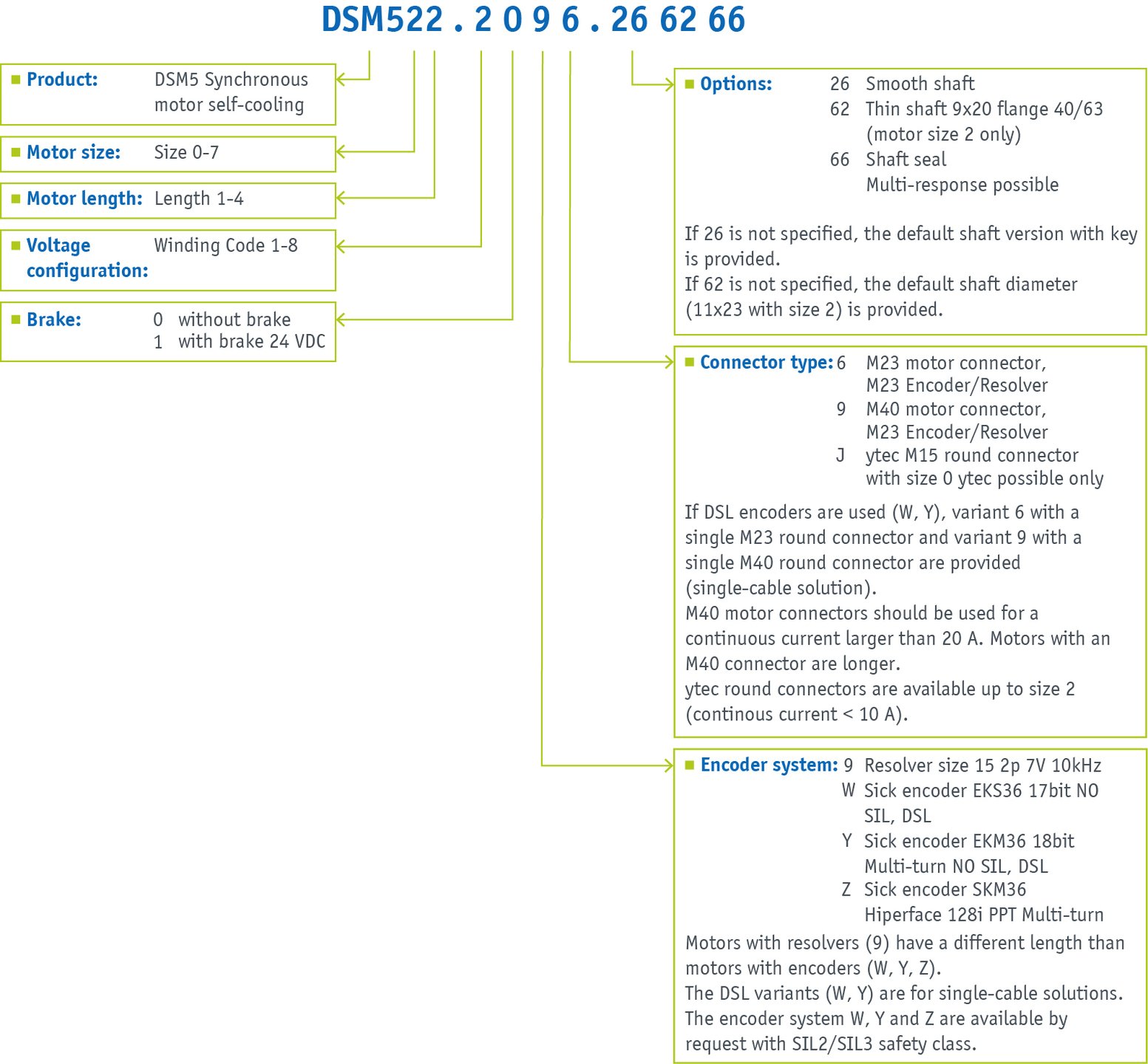

Order code
