AC Servo Motors

DSM5-2

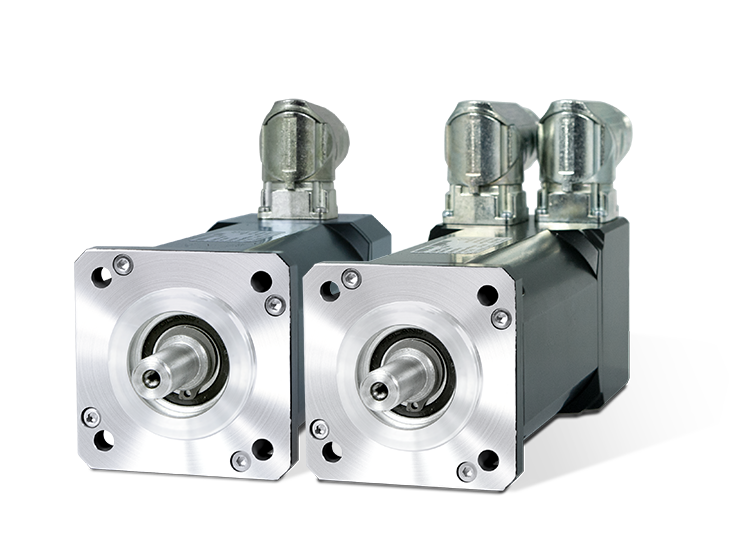

AC Servo Motors

Rated power P_n: 0.25 - 0.59 kW
Rated speed n_n: 3600 - 6300 min^-1
Motor standstill torque M₀: 0.7 - 1.4 Nm
Rated torque M_n: 0.52 - 1.1 Nm
Peak torque M_0max: 2.4 - 4.6 Nm

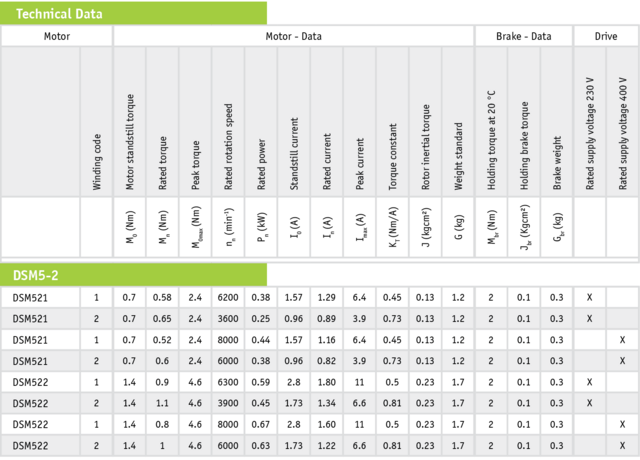

Technical data - Servomotor DSM5-2

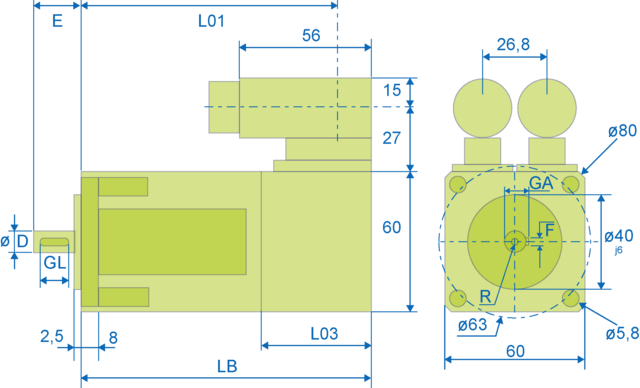

Mechanical dimensions - drawing

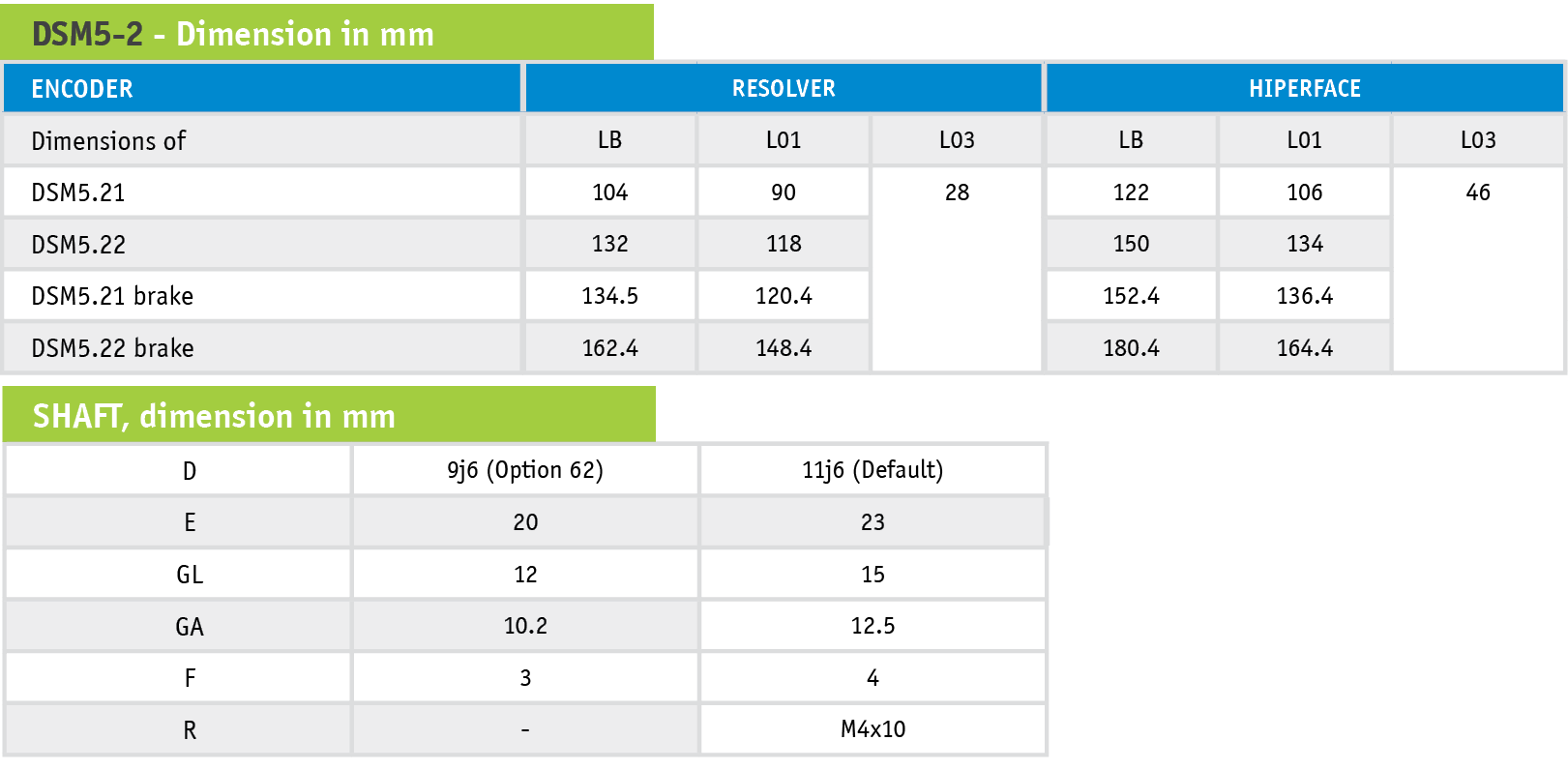

Mechanical dimensions - table

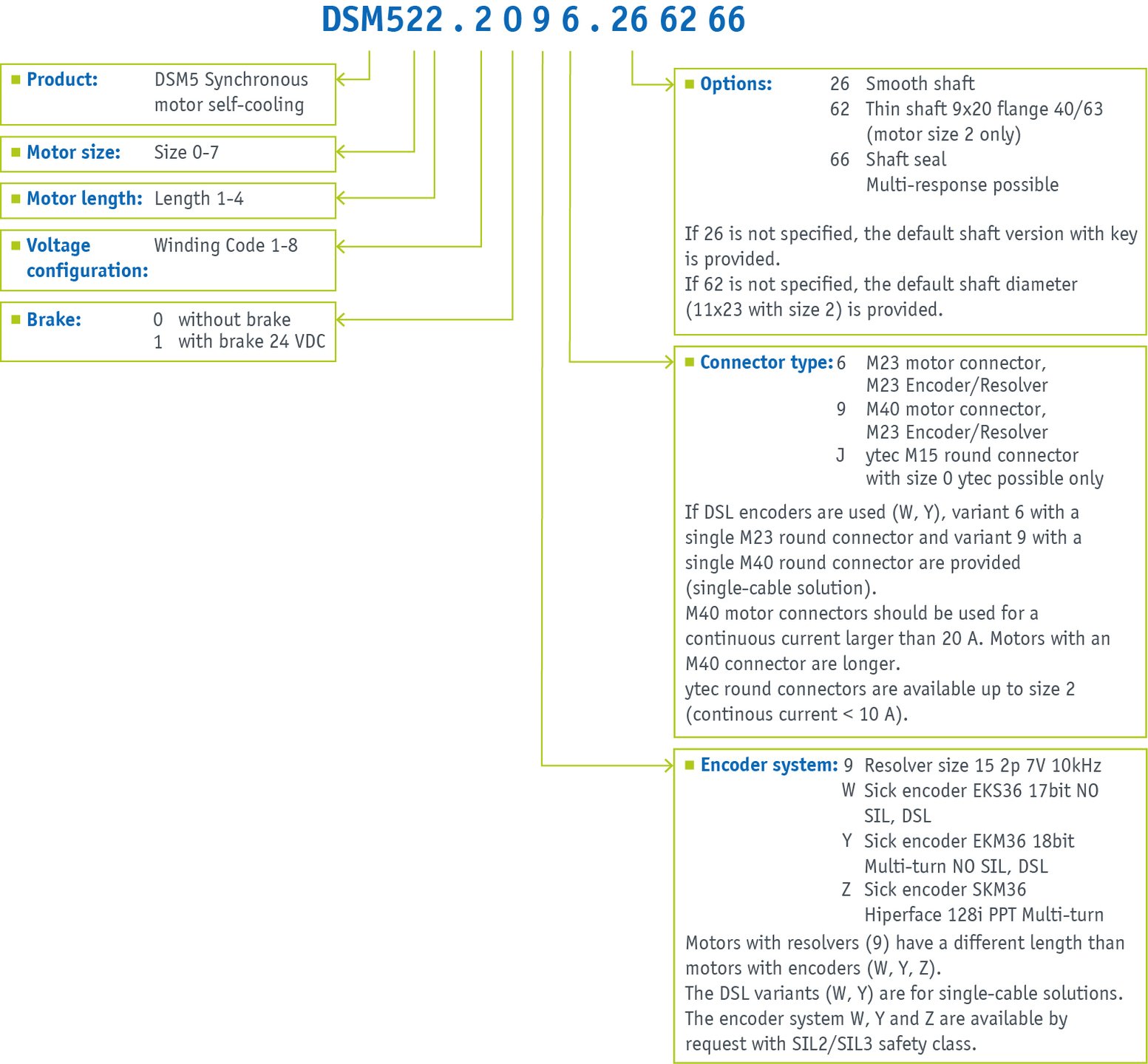

Order code
