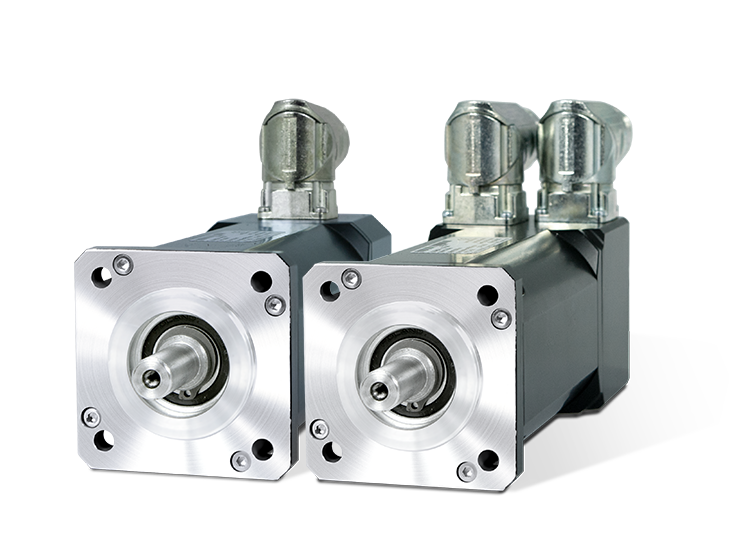

DSM5-4
AC Servo Motors
- Rated power Pn: 0.65 - 3.94 kW
- Rated speed nn: 1000 - 6000 min-1
- Motor standstill torque M0: 4 - 11.3 Nm
- Rated torque Mn: 2.7 - 9.54 Nm
- Peak torque M0max: 14 - 40 Nm

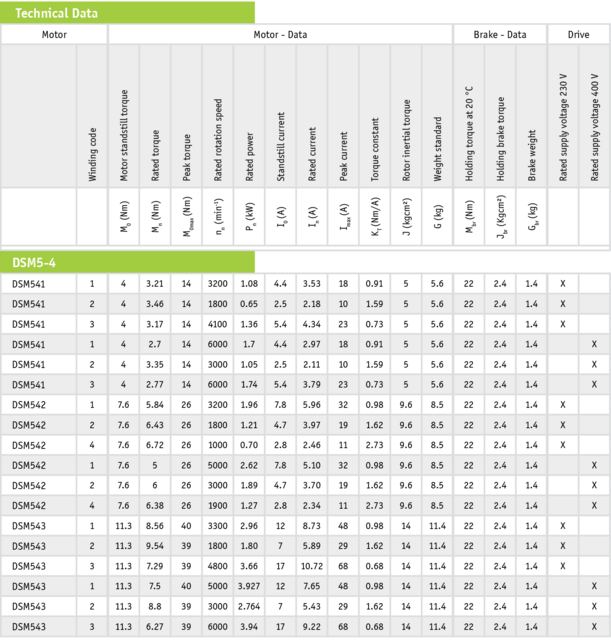

Technical data - Servomotor DSM5-4

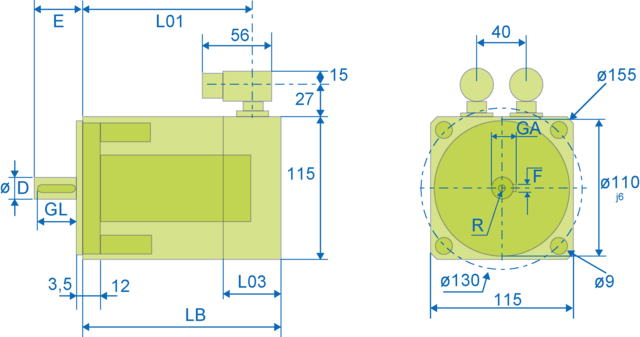

Mechanical dimensions - drawing

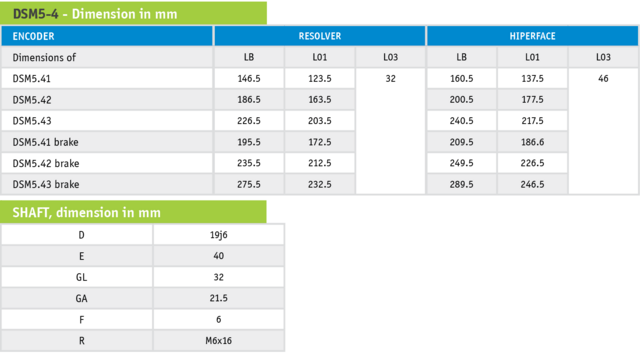

Mechanical dimensions - table

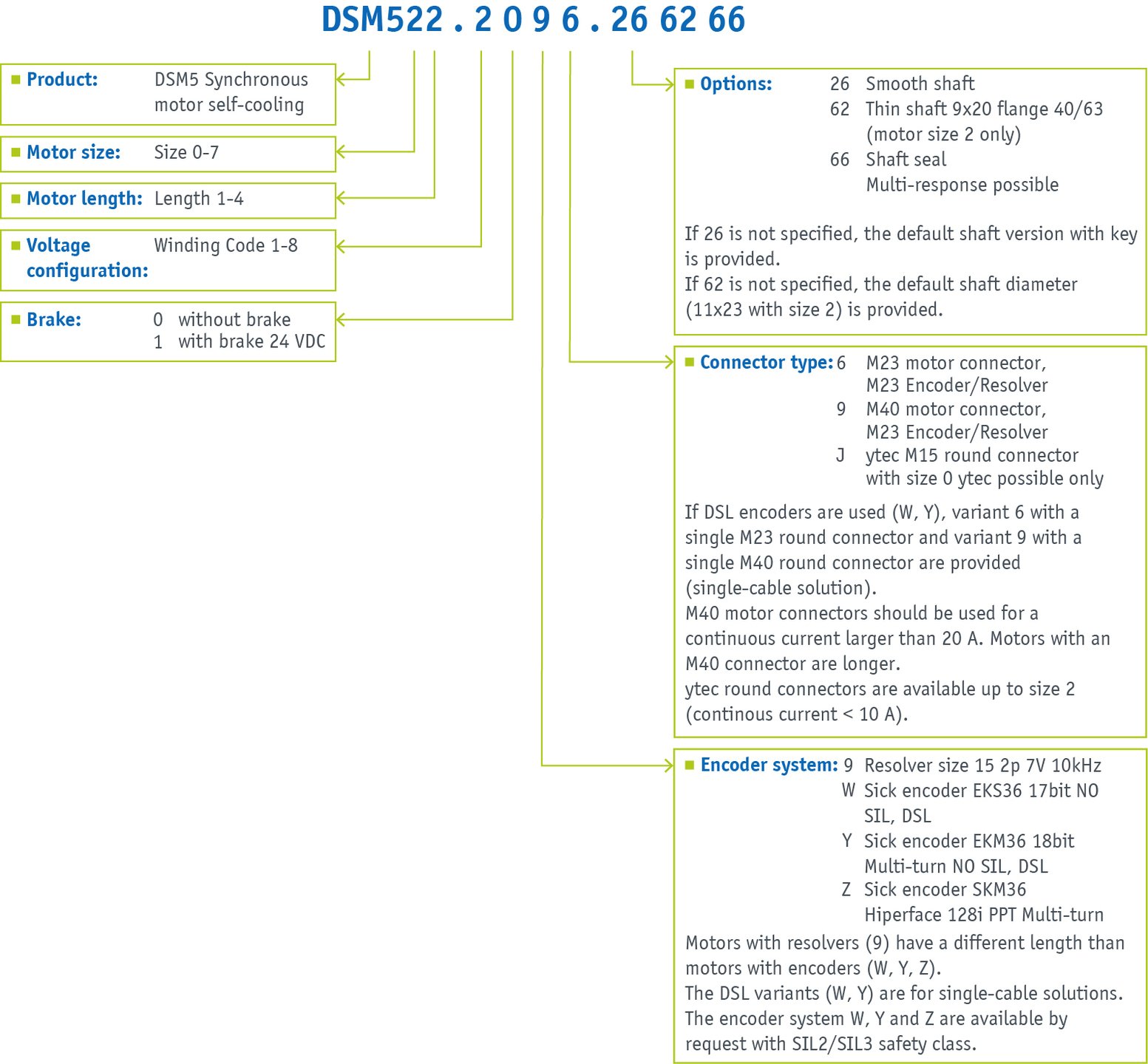

Order code
