DSM5-5

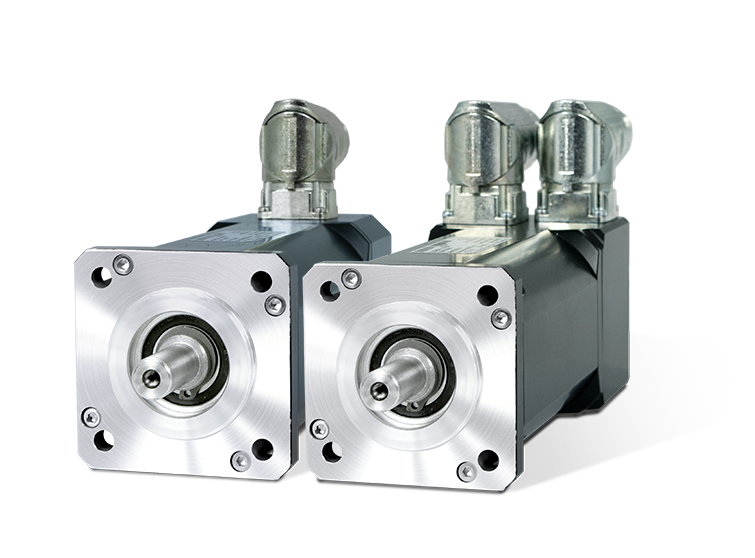

AC Servo Motors
- Rated power Pn: 1.61 - 5.4 kW
- Rated speed nn: 1900 - 6000 min-1
- Motor standstill torque M0: 10 - 35 Nm
- Rated torque Mn: 6 - 21.4 Nm
- Peak torque M0max: 35 - 118 Nm

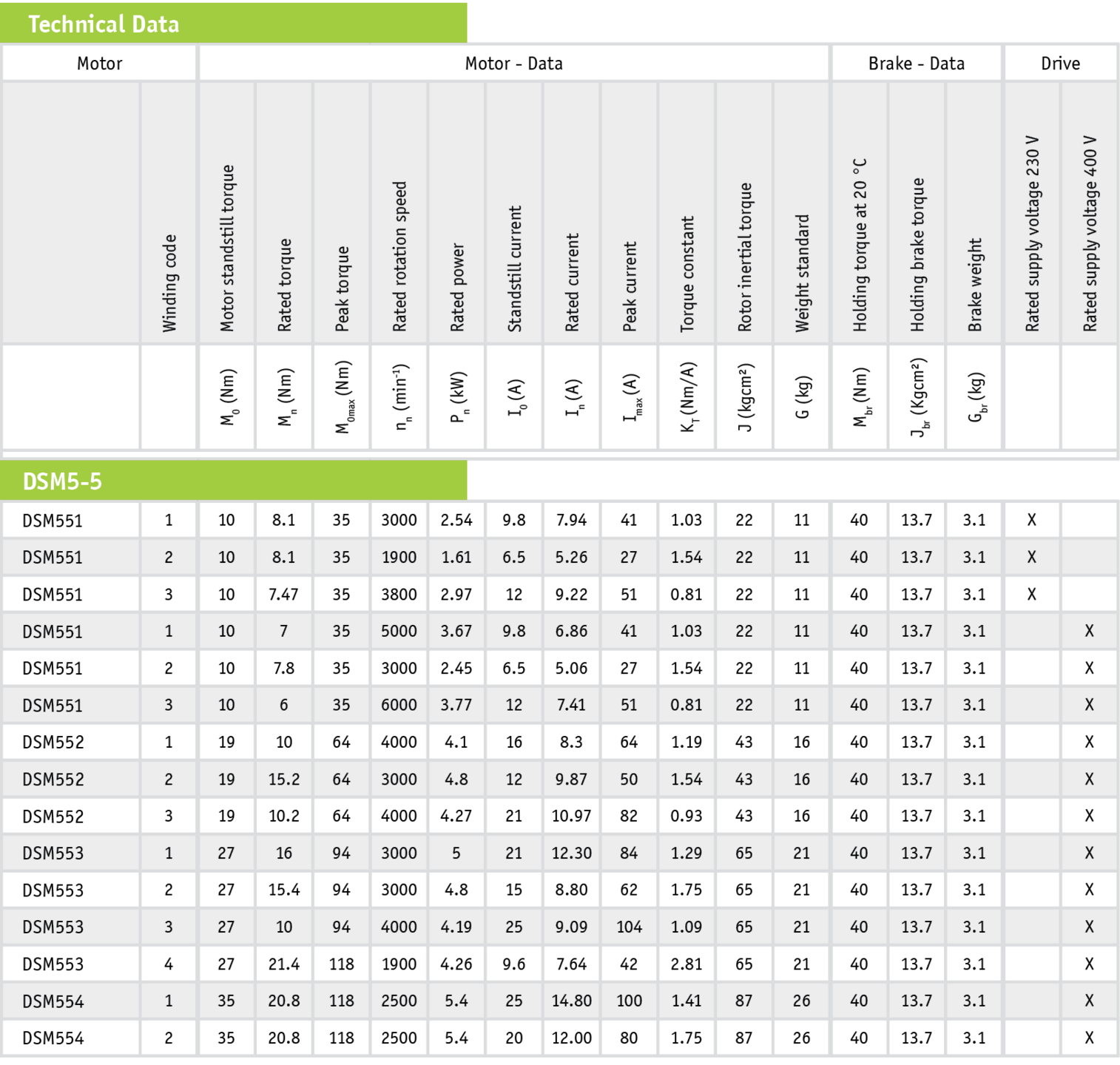

Technical data - Servomotor DSM5-5

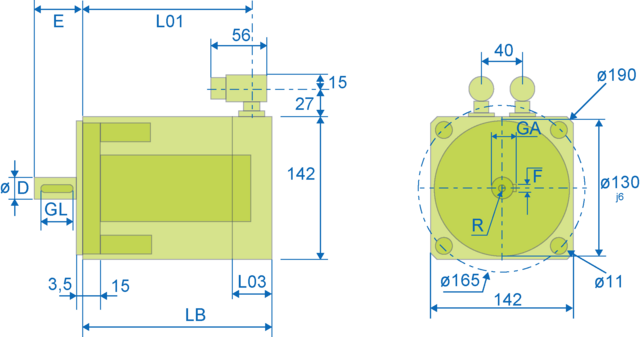

Mechanical dimensions - drawing

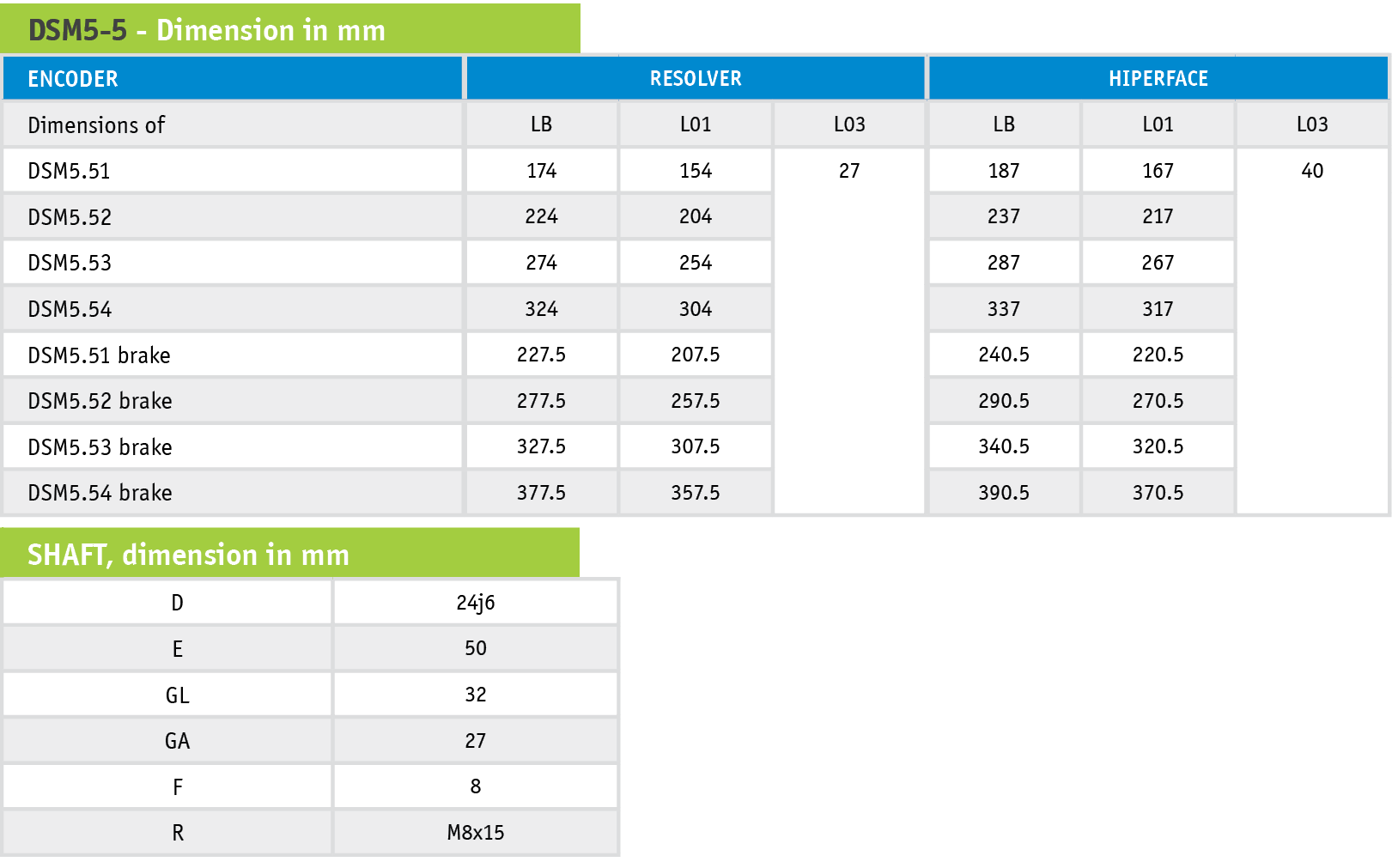

Mechanical dimensions - table

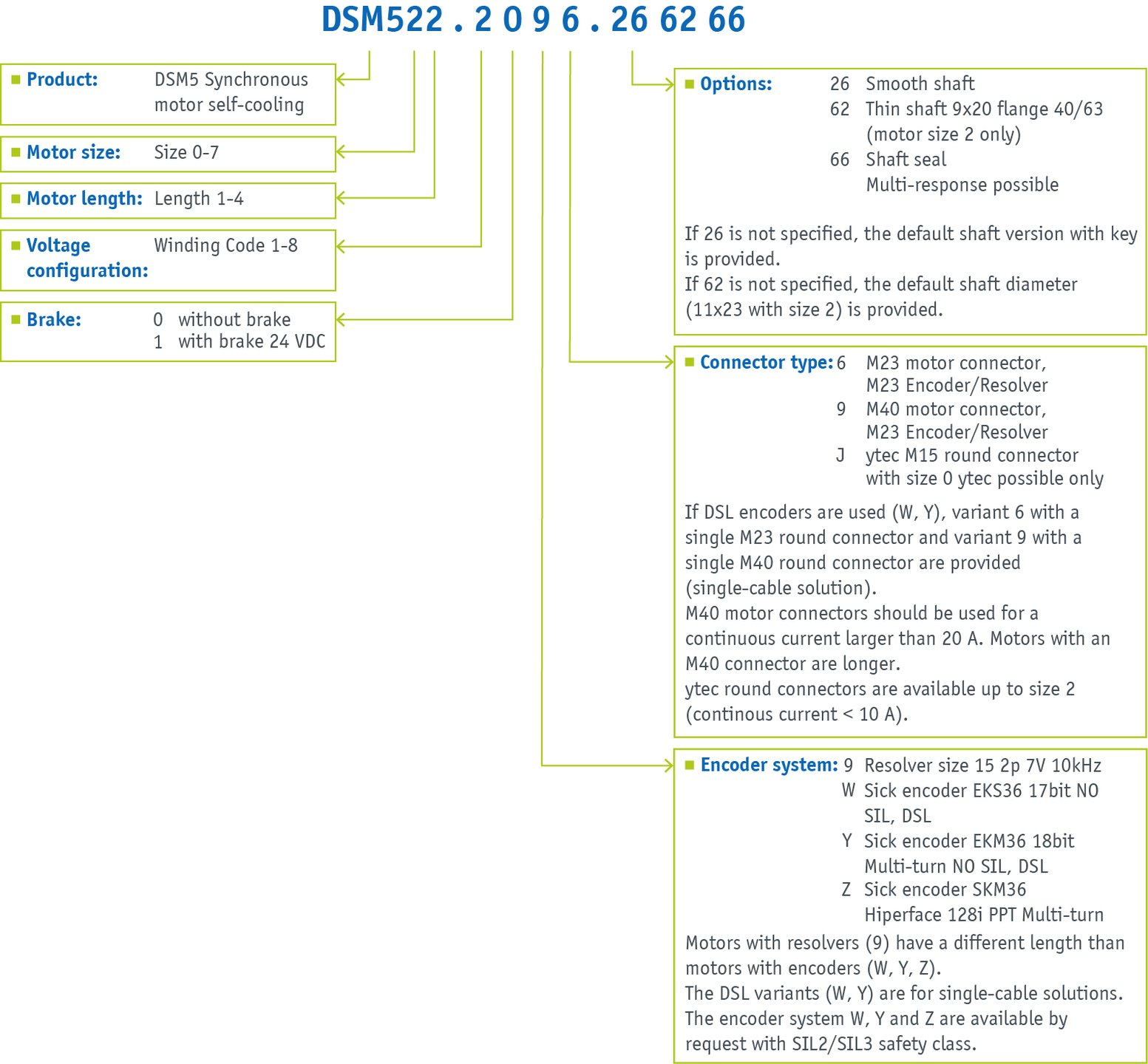

Order code
