DSM5-7

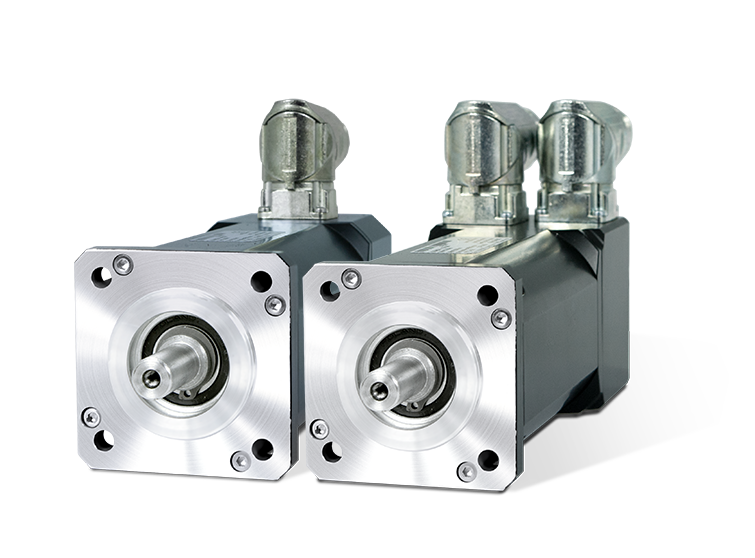

AC Servo Motors
- Rated power Pn: 8.35 kW
- Rated speed nn: 1800 min-1
- Motor standstill torque M0: 76 Nm
- Rated torque Mn: 44.3 Nm
- Peak torque M0max: 200 Nm

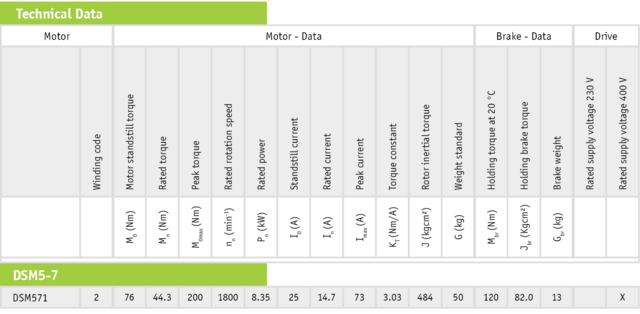

Technical data - Servomotor DSM5-7

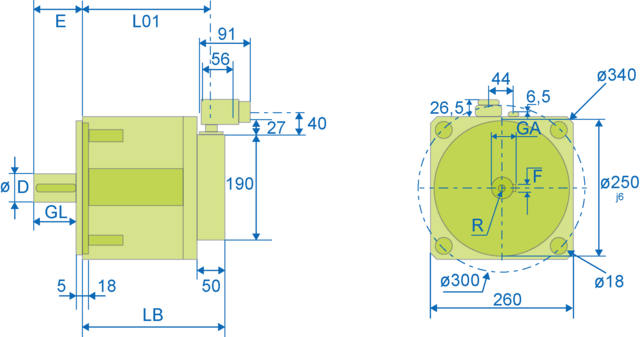

Mechanical dimensions - drawing

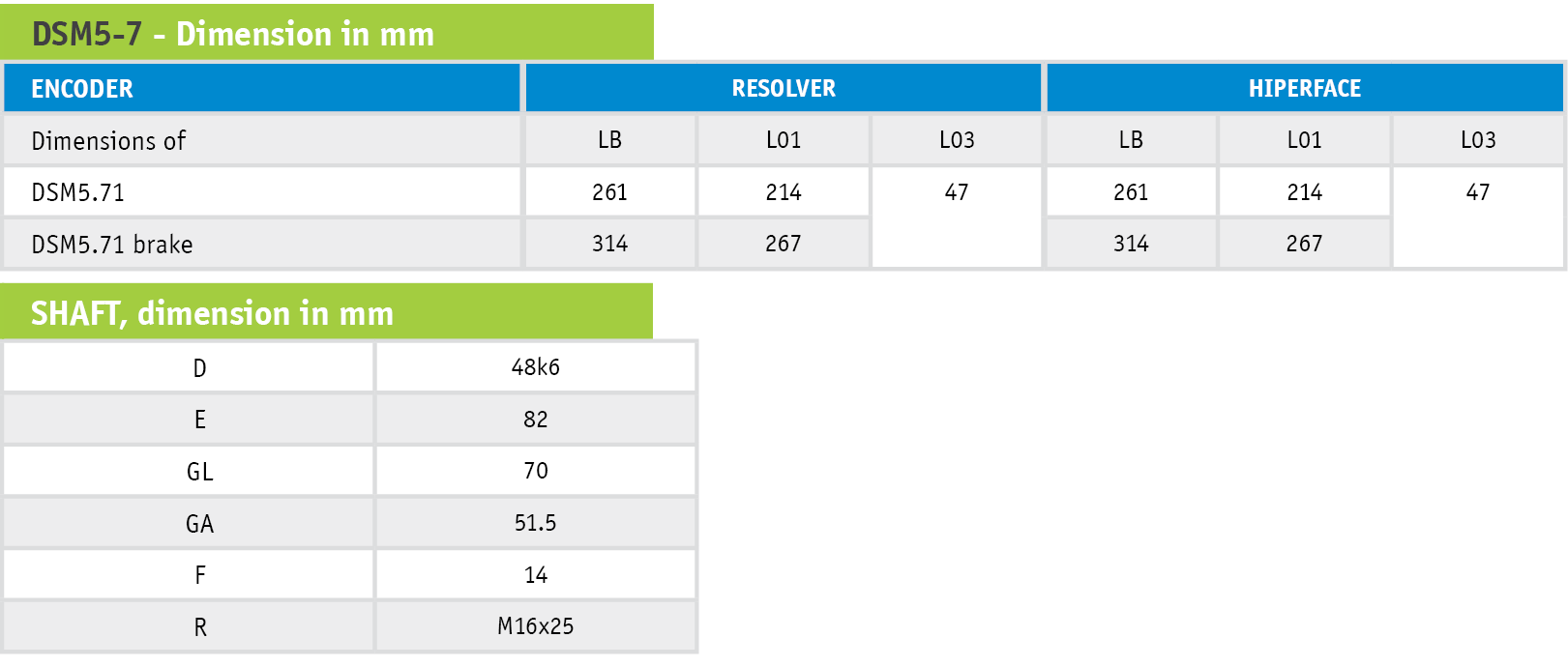

Mechanical dimensions - table

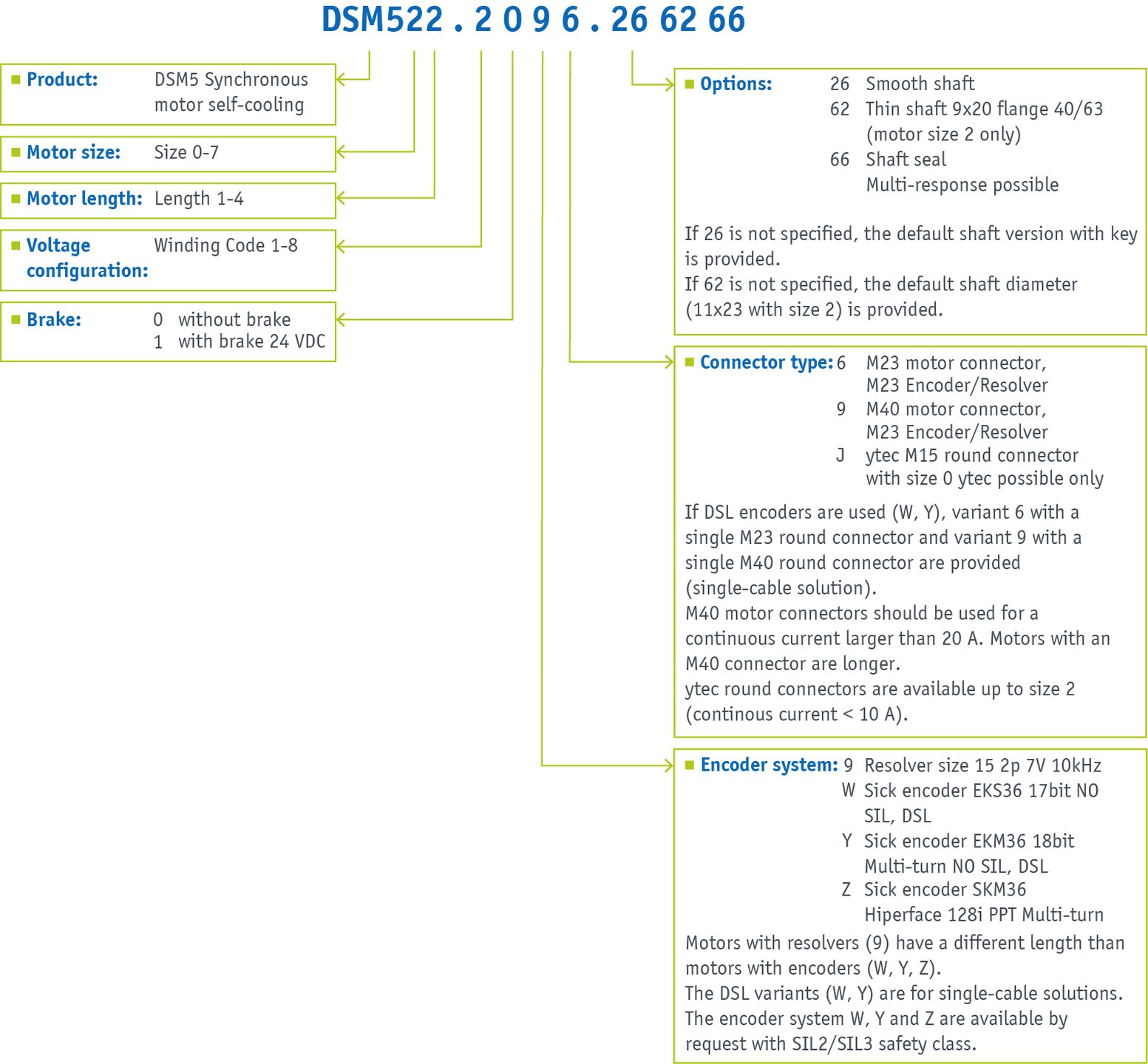

Order code
